Allen Bradley PLC 1783-MX08F / 1783MX08F

China Allen Bradley PLC 1783-MX08F / 1783MX08F supplier
Allen Bradley PLC 1783-MX08F / 1783MX08F supplier Allen Bradley PLC 1783-MX08F / 1783MX08F supplier Allen Bradley PLC 1783-MX08F / 1783MX08F supplier Allen Bradley PLC 1783-MX08F / 1783MX08F supplier Allen Bradley PLC 1783-MX08F / 1783MX08F supplier

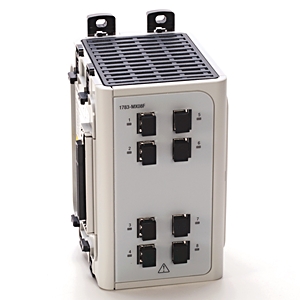

Large Image :  Allen Bradley PLC 1783-MX08F / 1783MX08F

Product Details:

Place of Origin: Made in USA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1783-MX08F / 1783MX08F

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $2252.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 4 PCS
Detailed Product Description

1783-MX08F technical data PDF download 1783-MX08F Rockwell Stratix 8000 8 Port Fiber Expansion Module

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: Stratix 5700 / 8000 / 8300 / 2000 · 1783

1783-MX08F is the fibre expansion module for the Stratix 8000 chassis: eight fibre ports added to a switch that is already installed.

Expansion is the point of the 8000 design, and it is why these modules are still bought years after the chassis was commissioned.

1783-BMS20CL Stratix 5700, 20 ports, 16 copper + 2 combo + 2 SFP IN STOCK
1783-BMS20CGP Stratix 5700, 20 ports, gigabit combo IN STOCK
1783-BMS20CGL Stratix 5700, 20 ports, gigabit combo, Lite firmware IN STOCK
1783-BMS20CGPK Stratix 5700, 20 ports, gigabit combo, kit IN STOCK
1783-BMS06TA Stratix 5700, 6 copper ports IN STOCK
1783-BMS06TL Stratix 5700, 6 copper ports, Lite firmware IN STOCK
1783-BMS06TGA Stratix 5700, 4 copper + 2 gigabit copper IN STOCK
1783-BMS06SA Stratix 5700, 4 copper + 2 SFP IN STOCK
1783-BMS06SL Stratix 5700, 4 copper + 2 SFP, Lite firmware IN STOCK
1783-BMS06SGA Stratix 5700, 4 copper + 2 gigabit SFP IN STOCK
1783-BMS06SGL Stratix 5700, 4 copper + 2 gigabit SFP, Lite firmware IN STOCK
1783-MS06T Stratix 8000, 6 port chassis IN STOCK
1783-MS10T Stratix 8000, 10 port chassis IN STOCK
1783-RMS06T Stratix 8300, 6 port layer 3 IN STOCK
1783-RMS10T Stratix 8300, 10 port layer 3 IN STOCK
1783-EMS04T Stratix 6000, 4 port managed IN STOCK
1783-MX08T Stratix 8000 copper 8 port expansion IN STOCK
1783-MX08F Stratix 8000 fibre 8 port expansion IN STOCK
1783-MCF Stratix 8000 CompactFlash spare card IN STOCK
1783-RMCF Stratix 8300 CompactFlash spare card IN STOCK
1783-ETAP EtherNet/IP tap, 3 copper ports IN STOCK
1783-ETAP2F EtherNet/IP tap, 1 copper + 2 fibre IN STOCK
1783-SFP100FX 100FX multimode SFP, 2 km IN STOCK
1783-SFP100LX 100LX singlemode SFP, 10 km IN STOCK
1783-SFP1GSX 1000SX multimode SFP, 550 m IN STOCK
1783-SFP1GLX 1000LX singlemode SFP, 10 km IN STOCK
1783-US8T Stratix 2000, 8 copper ports, unmanaged IN STOCK
1783-US03T01F Stratix 2000, 3 copper + 1 fibre, unmanaged IN STOCK

Product Specifications 1783-MX08F (PDF)
 Catalog number
 1783-MX08F
 Description
 Stratix 8000 fibre 8 port expansion module
 Ports
 8 * 100BASE-F fibre optic
 Fits
 Stratix 8000 managed switch chassis
 Depth
 117.5 mm
 Optical reach
 Up to 2,000 m over graded-index multimode fibre
 Lifecycle status
 Discontinued November 30, 2020
 Replacement category
 Functional Replacement
 UPC
 612598347735
 Publication
 1783-UM011

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1783-UM011 (module specifications) and 1783-SG001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

1783-MX08F 1783-MX08F

What it adds

8 * 100BASE-F fibre optic, mounted in the Stratix 8000 chassis.

The module extends the same managed switch, so VLANs, ring membership and diagnostics apply across old and new ports without a second device to own.

Fibre variant

Up to 2,000 m over graded-index multimode fibre

Mixing a copper and a fibre module in one chassis is the normal build — copper for devices in the cabinet, fibre for the run to the next one.

Fit and power

The module draws from the chassis supply; fitting one does not require a second power feed. Depth is 117.5 mm, matching the chassis footprint.

Power the chassis down before fitting. These are not field hot-swap parts, whatever a bench test allowed.

Lifecycle

Discontinued November 30, 2020 with the Stratix 8000 line, replacement category Functional Replacement.

A used module is a reasonable buy for a known-good chassis; it is not a reasonable buy as the only spare for three of them.

Related parts

Chassis: 1783-MS06T, 1783-MS10T. SFPs for the front cages: 1783-SFP100FX, 1783-SFP100LX, 1783-SFP1GSX, 1783-SFP1GLX.

Configuration media for the chassis: 1783-MCF CompactFlash spare card.

On a used module, read the port label on the front rather than a photograph: the copper and fibre versions share one housing and one connector layout, and only the marking tells them apart.

FAQ — 1783-MX08F

What does 1783-MX08F add?

8 * 100BASE-F fibre optic

Which chassis does 1783-MX08F fit?

The Stratix 8000 managed switch chassis.

Is 1783-MX08F still available from Rockwell?

No. Discontinued November 30, 2020; Functional Replacement.

What optical reach does 1783-MX08F support?

Up to 2,000 m over graded-index multimode fibre

Can 1783-MX08F be fitted with the chassis powered?

No. Power the chassis down first.


Data sources. Module role, port count and optical reach come from the Rockwell product page of this catalog number. Any attribute a publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
