Allen Bradley PLC 1756-PB75R / 1756PB75R

China Allen Bradley PLC 1756-PB75R / 1756PB75R supplier
Allen Bradley PLC 1756-PB75R / 1756PB75R supplier Allen Bradley PLC 1756-PB75R / 1756PB75R supplier Allen Bradley PLC 1756-PB75R / 1756PB75R supplier Allen Bradley PLC 1756-PB75R / 1756PB75R supplier Allen Bradley PLC 1756-PB75R / 1756PB75R supplier

Large Image :  Allen Bradley PLC 1756-PB75R / 1756PB75R

Product Details:

Place of Origin: Made in MEXICO
Brand Name: Rockwell
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1756-PB75R / 1756PB75R

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $648.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 5 PCS
Detailed Product Description


1756-PB75R technical data PDF download 1756-PB75R ControlLogix DC Redundant Power Supply | Rockwell

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PLC Automation

The 1756-PB75R (also written 1756PB75R) is the DC member of the ControlLogix redundant power supply pair: a 24 V DC supply rated from 18 V at the input that delivers 5.1 V DC at 13 A to the backplane and shares the chassis load with a second supply. The Rockwell product record describes it as a 19-32 VDC redundant supply, 75 W maximum output at 0…60 °C, cabled to the chassis through a 1756-CPR2 cable (1756-IN620).

It uses the same passive topology as the AC version: two remote supplies, one 1756-PSCA2 chassis adapter, two 1756-CPR2 cables, and a single backplane power connector. If one supply drops out the other carries the entire chassis load without interruption. The exclusion is published as well — the adapter and the cables themselves are not redundant.

Electrical and physical data: 24 V DC nominal input, 18 V minimum, 110 W maximum input power, 30 A maximum inrush, 5.1 V DC output at 13 A plus 4 A at 3.3 V DC, 1.5 A at 1.2 V DC and 2.8 A at 24 V DC, 75 W maximum output, 1.45 kg, 175 mm high by 145 mm wide by 137 mm deep. Operating 0…60 °C, 5…95% relative humidity non-condensing, 30 g shock, 2 g vibration, and IEC 61000-4-29 dip and interruption capability on the DC supply ports.

1756-PA75RAC redundant supply, 120/240 V AC, 13 A at 5.1 V DC, 75 WIN STOCK
1756-PB75RDC redundant supply, 24 V DC, 13 A at 5.1 V DC, 75 WIN STOCK
1756-PAXTXT AC supply, 8 A at 5.1 V DC, 42 W at -25 to +70 CIN STOCK
1756-PBXTXT DC supply, 10 A at 5.1 V DC, 52 W at -25 to +70 CIN STOCK
1756-PAXTRXT AC redundant supply, 42 W, 0-60 C in a non-XT chassisIN STOCK
1756-PA75Non-redundant AC supply, single, 13 A at 5.1 V DC, 75 WIN STOCK

 Application
 Chassis Power
 Brand Name
 Rockwell (Rockwell)
 Cat Num
 1756-PB75R
 Communication
 —
 Display
 —
 Enclosure
 None (open-style)
 Interface
 Backplane, via 1756-PSCA2
 Mounting
 Remote, cable-connected
 Number Of Channels
 —
 Standard
 CE, UL, RCM, EAC, Morocco DOC
 Sub Brand
 ControlLogix
 Type
 Redundant Power Supply
 UNSPSC
 —

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1756-TD003 (module specifications) and 1756-IN620 (redundant power supply instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

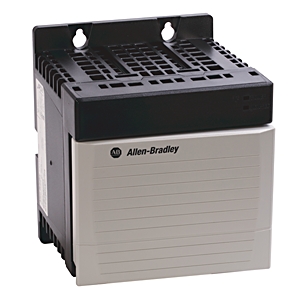

1756-PB75R redundant power supply product photograph 1756-PB75R DC redundant supply product photograph 1756-PB75R terminals product photograph

Where the module sits in a typical system

The DC version is the natural choice where the control panel already runs a 24 V DC bus — a battery-backed bus, a DC plant supply, or a UPS-fed rail — because it removes an AC conversion stage between the reserve energy and the controller. The 18 V minimum input is the constraint that decides the bus design.

It carries a hazardous-location approval that the AC version does not: IN620 lists 1756-PB75R with protection type Ex nA IIC T4 Gc under ATEX certificate DEMKO13ATEX1325026X and IECEx UL 14.0008X, matching the 1756-PSCA2 adapter. That makes the DC pair the default in a Zone 2 panel where the adapter is already certified.

Power budget follows the same rule as the AC unit: 75 W maximum at 5.1 V DC, and the chassis must still run on one supply alone. Field power for devices usually comes from a separate 24 V supply, so keep the controller's 24 V DC input circuit and the field 24 V rail as separate circuits in the drawing rather than assuming one bus serves both.

Commissioning in five steps

  1. Mount the two supplies remotely and land both on the 1756-PSCA2 chassis adapter: the adapter is a passive device and simply funnels power from one or two supplies into the single backplane power connector.
  2. Use the published cable — 1756-CPR2, 1756-CPR2D or 1756-CPR2U — and never connect or disconnect it while either backplane power source is energised: an arc at the connector is an explosion hazard in a classified area and wears the contacts.
  3. Wire the mains side with 2.5 mm² (14 AWG) 90 °C copper at 1.2 mm insulation maximum, tighten to 0.565 N·m (5 lb·in), and protect every ungrounded supply with a 15 A time-delay fuse.
  4. Keep annunciator wiring to 10 m (32.8 ft) maximum if you use the annunciator contacts, and note the wire categories: category 1 on the power ports and category 3 on the 1756-CPR2 connections.
  5. Commission by load: with both supplies healthy the pair shares the chassis current, so confirm the sharing before you rely on it. A single healthy supply must carry the entire chassis load — that is the design promise, not a margin.

Diagnostics: status indicators

Three bi-colour indicators plus the alphanumeric display cover almost every commissioning fault, so most problems are resolved at the panel without a laptop.

 Indicator State Meaning and first action
 Check 2 Input at the supply Measure at the supply terminals, not at the bus: the DC version needs 18 V minimum, and a long run on a 24 V bus can sit below that at the supply while reading healthy at the source.
 Check 3 Cable and connector Power down before touching a CPR2 connection. Worn contacts on the redundant cable connector add resistance and show up as a supply that runs hot under load.
 Check 4 Load sharing Under load the two supplies should share the chassis current. A large offset means one path is degraded — check cable, connector and supply in that order.
 Check 5 Fusing and torque One 15 A time-delay fuse per ungrounded supply, terminals at 0.565 N·m, one conductor per terminal, 2.5 mm² (14 AWG) 90 °C copper.
 Check 6 Chassis series 1756-PB75R pairs into A4/C, A7/C, A10/C, A13/C and A17/C chassis; the AC version uses the series B list. A mixed chassis decision changes the supply part number.

Installation checks per Rockwell publication 1756-IN620, which covers adapter mounting, cable seating, load sharing, fusing and the chassis compatibility table and 1756-IN050.

Replacing a 1756-ENBT

The 1756-PB75R is active, so a like-for-like replacement is the straightforward path. What matters in an existing panel is that the replacement is the same input class: dropping an AC supply into a DC-wired enclosure, or the reverse, changes the fusing, the input terminals and the annunciator wiring.

If one supply of a pair fails, the pair is designed to keep the chassis running on the other. That is the moment to schedule the replacement, not to defer it: the redundancy is gone until the second supply is back, and the adapter and cables are outside the published redundancy claim regardless.

When the chassis is being replaced rather than the supply, confirm the chassis series first. The redundant supply lists are series-specific, and a series change moves the part number between the AC and DC tables.

Which ControlLogix redundant power supply to specify

  • 1756-PA75R — AC redundant supply, 120/240 V AC nominal, 5.1 V DC at 13 A, 75 W maximum, pairs into chassis A4/B…A17/B.
  • 1756-PB75R — DC redundant supply, 24 V DC nominal (18 V minimum at the input), 5.1 V DC at 13 A, 75 W maximum, pairs into chassis A4/C…A17/C.
  • 1756-PAXTR / 1756-PBXTR — the XT redundant pair; rated 0…60 °C only when mounted in a non-XT chassis.
  • 1756-PSCA2 / 1756-PSCA2XT — the passive chassis adapter the supplies feed; one per chassis, two supply cables land on it.
  • 1756-CPR2 — the 0.91 m (3 ft) redundant supply cable; also offered as 1756-CPR2D and 1756-CPR2U.
  • 1756-PA75 / 1756-PB75 — the non-redundant single supplies; same 75 W class, no second supply and no adapter.

FAQ — 1756-PB75R ControlLogix DC Redundant Power Supply | Rockwell

What input range does the 1756-PB75R accept?

24 V DC nominal, listed as a 19-32 VDC redundant supply, with an 18 V minimum at the input terminals. Input power is 110 W maximum and inrush 30 A maximum (Rockwell product record, 1756-IN620).

What does it deliver to the backplane?

5.1 V DC at 13 A, with 4 A at 3.3 V DC, 1.5 A at 1.2 V DC and 2.8 A at 24 V DC available, and a 75 W maximum power output across 0…60 °C.

Is it approved for hazardous locations?

Yes — Ex nA IIC T4 Gc, ATEX certificate DEMKO13ATEX1325026X and IECEx certificate IECEx UL 14.0008X, the same certificates held by the 1756-PSCA2 adapter. Note the AC version 1756-PA75R does not carry this approval (1756-IN620).

Which chassis does it fit?

1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C and 1756-A17/C. The AC supply 1756-PA75R is listed against the series B chassis, so the chassis series decides the supply.

How is it connected to the chassis?

Through a 1756-PSCA2 (or 1756-PSCA2XT) chassis adapter and a 1756-CPR2, 1756-CPR2D or 1756-CPR2U cable, 0.91 m (3 ft) in the CPR2 case. The adapter is passive and the cable is not supplied with the chassis.

Can I mix the 1756-PB75R with an AC supply in the same pair?

Yes. IN620 states that the AC supplies (1756-PA75R, 1756-PAXTR) and the DC supplies (1756-PB75R, 1756-PBXTR) can be mixed and matched in tandem, which is a practical way to feed one side from the plant DC bus and the other from an AC circuit.

What are the mechanical and environmental limits?

175 mm high, 145 mm wide, 137 mm deep, 1.45 kg, 0…60 °C operating, 5…95% relative humidity non-condensing, 30 g operating shock and 2 g vibration at 10…500 Hz. DC input immunity is specified to IEC 61000-4-29, including 10 ms interruptions and 60% dips for 100 ms.

What wiring and protection does the installation need?

2.5 mm² (14 AWG) 90 °C copper with 1.2 mm maximum insulation, 0.565 N·m terminal torque, one conductor per terminal, and a 15 A time-delay fuse in every ungrounded supply connection. Annunciator wiring is limited to 10 m (32.8 ft).

Does the pair protect against an adapter or cable failure?

No. The redundant design is stated to account for operational anomalies in the power supply only; the chassis adapter and the power supply cables are excluded. A failed adapter or cable stops the chassis with both supplies healthy.


Data sources. Technical values on this page come from Rockwell publications 1756-IN620 (ControlLogix Redundant Power Supply, installation instructions), 1756-IN619 (ControlLogix Power Supply installation instructions) and 1756-TD005 (ControlLogix power supply technical data) and the manufacturer's product page for 1756-PB75R. Values re-checked 15 November 2026.
