Allen Bradley PLC 1794-TB3S / 1794TB3S

China Allen Bradley PLC 1794-TB3S / 1794TB3S supplier
Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier Allen Bradley PLC 1794-TB3S / 1794TB3S supplier

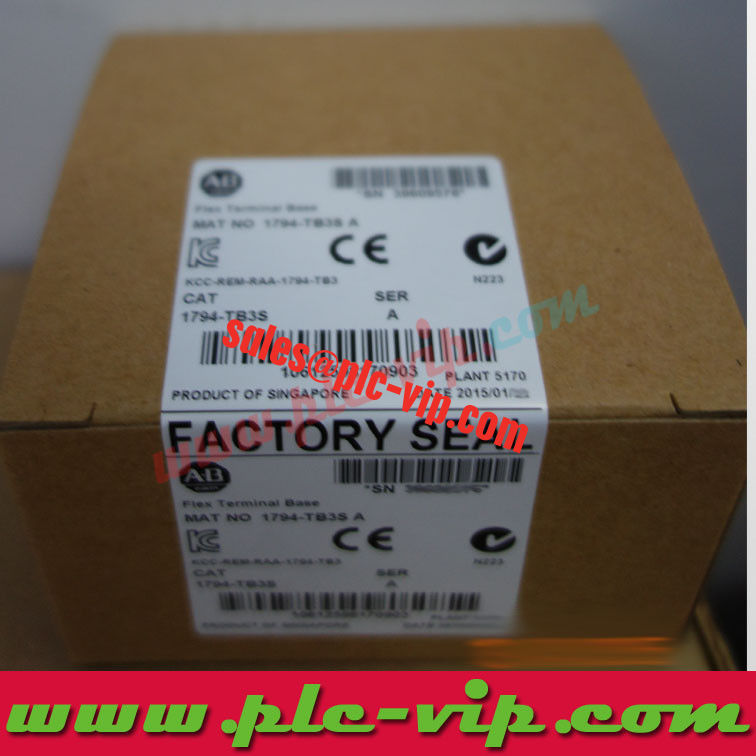

Large Image :  Allen Bradley PLC 1794-TB3S / 1794TB3S

Product Details:

Place of Origin: Made in MALAYSIA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1794-TB3S / 1794TB3S

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $85.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

1794-TB3S technical data PDF download FLEX I/O 1794-TB3S / 1794TB3S Terminal Base Unit, Spring Clamp

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PLC I/O

The 1794-TB3S is the spring-clamp version of the general-purpose base: the same 16 I/O, 18 common and 18 +V terminals at 10 A, terminated by spring rather than screw.

Spring clamps remove the screwdriver from the termination step, which is faster on a 16-point card and more consistent where the same wire gauge is used throughout.

1794-TB2 16-terminal cage clamp base, 2-wire, up to 132V AC IN STOCK
1794-TB3 16-terminal cage clamp base, 3-wire devices IN STOCK
1794-TB3S 16-terminal spring clamp base, 3-wire devices IN STOCK
1794-TB32 32-terminal cage clamp base for 32-point modules IN STOCK
1794-TB32S 32-terminal spring clamp base for 32-point modules IN STOCK
1794-TB3T temperature base with two cold junction compensation sets IN STOCK
1794-TB3TS spring clamp temperature base with CJC sets IN STOCK
1794-TB3G grounded screw clamp base, 36 I/O, 10 chassis ground IN STOCK
1794-TB3GS grounded spring clamp base, 36 I/O, 10 chassis ground IN STOCK
1794-TBKD cage clamp base with 16 knife disconnects IN STOCK
1794-TBN NEMA-style screw clamp base, up to 264V AC/DC IN STOCK
1794-TBNF fused NEMA-style base, eight 5 x 20 mm fuses IN STOCK
1794-TB37DS 37-pin D-shell termination for digital and analog modules IN STOCK
1794-TB62DS 62-pin D-shell termination for digital and analog modules IN STOCK

Product Specifications 1794-TB3S (PDF)
 Application
 FLEX I/O terminal base, 1794 backplane
 Cat Num
 1794-TB3S
 Brand Name
 Rockwell
 Termination
 Spring clamp, 16 I/O, 18 common, 18 +V
 Wire size
 0.34...3.3 mm2 (22...12 AWG), 75 deg C or greater, 1.2 mm insulation max
 Current capacity
 10 A maximum
 Voltage
 Up to 132V AC / 156V DC
 Dimensions
 94 x 94 x 69 mm
 Operating temperature
 -20...70 deg C

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1794-DU001 (module specifications) and 1794-SG002 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

1794-TB3S original product photograph, wide view 1794-TB3S original product photograph, wide view 1794-TB3S original product photograph, wide view

Termination

Spring clamp terminals hold the wire by spring force, with no screw to torque and no chance of a loose termination after a vibration cycle.

16 I/O, 18 common and 18 +V matches the 1794-TB3 terminal count exactly.

24...12 AWG with 1.2 mm maximum insulation diameter, and a 10 A base rating.

The selection guide describes it as providing faster, simpler wire installation than the cage clamp version — the trade is that a spring clamp is harder to re-terminate in a tight panel.

Electrical

Up to 132V AC / 156V DC on the terminals, so an AC input card and a DC output card can both sit on this base type.

10 A maximum , the same as every base in the family.

-20...70 deg C operating range , wider than the 1794-TB2 and matched to the XT modules.

Current capacity, wire gauge and dimensions are shared with the screw-clamp base, so a substitution is a wiring-method change only.

Application and limits

Standard base for 16-point modules, inputs and outputs alike.

Not for temperature inputs — thermocouple and RTD modules need the CJC sets on the 1794-TB3T or 1794-TB3TS.

Not for 32-point modules — those need the 1794-TB32S in spring clamp.

Not for 250V circuits — the NEMA-style 1794-TBN is rated to 264V AC/DC.

Mounting

35 x 7.5 mm DIN rail, snapping on by hand and removed with a flat-blade screwdriver.

25 mm minimum air space around the system, and a zinc-plated, yellow-chromated steel rail for grounding.

1794-NM1 kit for panel mounting without a rail; 1492-EA35 rail locks for high-vibration locations.

One end cap per controller system closes the assembly.

Where it fits

Panels built with one wire gauge where spring termination is faster and repeatable.

High-vibration machinery where a screw that can loosen is the concern.

Not for thermocouples or 32-point cards; TB3T and TB32S cover those.

Not for knife-disconnect troubleshooting; the 1794-TBKD provides 16 disconnects.

FAQ — 1794-TB3S

What termination does the 1794-TB3S use?

Spring clamp terminals, 16 I/O, 18 common and 18 +V.

What wire size does it accept?

0.34...3.3 mm2 (22...12 AWG) with 1.2 mm maximum insulation.

What current can it carry?

10 A maximum.

What is the operating temperature?

-20...70 deg C.

Is it the same as the 1794-TB3?

Electrically yes; the difference is spring clamp instead of cage clamp termination.

What is it not suitable for?

Thermocouple modules, which need the CJC sets of the 1794-TB3T.


Data sources. Technical values on this page come from Rockwell publication 1794-SG002 (FLEX I/O Selection Guide, terminal base comparison) and 1794-IN092. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
