Allen Bradley PLC 1794-AENT / 1794AENT

China Allen Bradley PLC 1794-AENT / 1794AENT supplier
Allen Bradley PLC 1794-AENT / 1794AENT supplier Allen Bradley PLC 1794-AENT / 1794AENT supplier Allen Bradley PLC 1794-AENT / 1794AENT supplier Allen Bradley PLC 1794-AENT / 1794AENT supplier Allen Bradley PLC 1794-AENT / 1794AENT supplier Allen Bradley PLC 1794-AENT / 1794AENT supplier Allen Bradley PLC 1794-AENT / 1794AENT supplier Allen Bradley PLC 1794-AENT / 1794AENT supplier

Large Image :  Allen Bradley PLC 1794-AENT / 1794AENT

Product Details:

Place of Origin: Made in SINGAPORE
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1794-AENT / 1794AENT

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $310.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

1794-AENT technical data PDF download FLEX I/O 1794-AENT / 1794AENT EtherNet/IP Adapter

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PLC I/O

The 1794-AENT is the single-port EtherNet/IP adapter that turns a row of FLEX I/O modules into a node on the plant network: one RJ45 connector, up to 8 modules behind it, 640 mA of Flexbus power to share.

It is the adapter most FLEX I/O islands ship with, and the one that decides whether the island is a network node or a rack on a controller backplane.

1794-AENT EtherNet/IP adapter, single RJ45, 8 modules IN STOCK
1794-AENTR dual-port EtherNet/IP adapter, redundancy capable IN STOCK
1794-AENTRXT dual-port EtherNet/IP adapter, extended temperature IN STOCK
1794-ACN15 ControlNet adapter, 15 Mbps, 8 modules IN STOCK
1794-ACN15K ControlNet adapter, 15 Mbps, conformal coated IN STOCK
1794-ACNR ControlNet adapter with redundant media IN STOCK
1794-ACNR15XT ControlNet adapter, redundant media, extended temperature IN STOCK
1794-ACN ControlNet adapter module, 8 modules IN STOCK
1794-ADN DeviceNet adapter, 8 modules IN STOCK
1794-ADNK DeviceNet adapter, conformal coated IN STOCK
1794-APB Profibus DP adapter, 8 modules IN STOCK
1794-APBDPV1 Profibus DP-V1 adapter, 8 modules IN STOCK
1794-ASB Remote I/O adapter, 8 modules IN STOCK
1794-ASB2 Remote I/O adapter, extended functionality IN STOCK
1794-ASBLT Remote I/O adapter with built-in termination IN STOCK

Product Specifications 1794-AENT (PDF)
 Application
 FLEX I/O EtherNet/IP adapter
 Cat Num
 1794-AENT
 Brand Name
 Rockwell
 I/O module capacity
 8 modules
 Input voltage
 24V DC nom, 19.2...31.2V DC range
 Communication rate
 10/100 Mbps
 Flexbus output current
 640 mA max
 Power consumption, max
 440 mA at 24V DC
 Ethernet connector
 RJ45, Category 5
 Isolation
 50V continuous, tested 1000V AC for 60 s
 Operating temperature
 0...55 deg C

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1794-DU001 (module specifications) and 1794-SG002 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

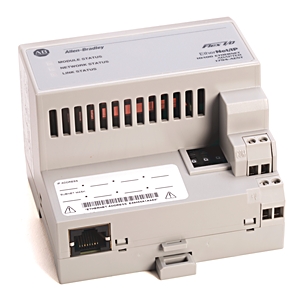

1794-AENT original product photograph, wide view 1794-AENT original product photograph, wide view 1794-AENT original product photograph, wide view

Network side

10/100 Mbps over an RJ45 Category 5 connector, with three status indicators: module, network and link.

Addressing is set by three thumbwheel switches, 001...254, which map to 192.168.1.xxx with a 255.255.255.0 mask.

DHCP is enabled out of the box, with the switches left at 999, so the adapter asks a server for an address on first power-up.

A 100 MB full-duplex switch is the recommended connection, which the publication states to reduce collisions and lost packets.

Backplane side

<8 modules maximum behind one adapter, with 640 mA of 5V Flexbus current to distribute.

24V DC input on 19.2...31.2V DC, drawing 440 mA at 24V in the worst case.

Terminals B to E pass 24V common and 24V DC to the next module, so the rail is jumpered rather than rewired.

DIN rail mounting on 35 x 7.5 mm rail, grounded through the rail to chassis.

Power and thermal

7.3 W dissipation at 19.2V DC and 24.9 BTU/hr, the numbers for an enclosure thermal calculation.

<Isolation is 50V continuous, tested at 1000V AC for 60 s between power, Flexbus and Ethernet.

T4A North American temperature code, T4 for ATEX and IECEx, and an open-style enclosure rating.

0...55 deg C operating range, 179 g weight, 0.8 N*m terminal torque.

Application

Distributed I/O islands on an EtherNet/IP network.

Panels converting from remote I/O or ControlNet to EtherNet/IP.

Not redundant; the 1794-AENTR provides two ports for media redundancy.

Not extended temperature; the -XT parts cover -25...70 deg C.

Where it fits

Single-port islands where a star topology is acceptable.

Cost-sensitive nodes that do not need dual media.

Not for 16 modules; the capacity is 8 per adapter.

Not for DeviceNet or ControlNet islands.

FAQ — 1794-AENT

How many I/O modules can the 1794-AENT carry?

8 modules behind a single adapter.

What is the network speed?

10/100 Mbps over an RJ45 Category 5 connector.

How is the IP address set?

Three thumbwheel switches, 001...254, or DHCP with the switches at 999.

What is the Flexbus output?

640 mA maximum at 5V DC.

What is the power consumption?

440 mA at 24V DC maximum, 7.3 W dissipation at 19.2V DC.

What is the operating temperature?

0...55 deg C, T4A temperature code.


Data sources. Technical values on this page come from Rockwell publication 1794-IN082 (FLEX I/O EtherNet/IP Adapters). Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
