Allen Bradley PLC 1794-CE3 / 1794CE3

China Allen Bradley PLC 1794-CE3 / 1794CE3 supplier
Allen Bradley PLC 1794-CE3 / 1794CE3 supplier Allen Bradley PLC 1794-CE3 / 1794CE3 supplier Allen Bradley PLC 1794-CE3 / 1794CE3 supplier Allen Bradley PLC 1794-CE3 / 1794CE3 supplier Allen Bradley PLC 1794-CE3 / 1794CE3 supplier

Large Image :  Allen Bradley PLC 1794-CE3 / 1794CE3

Product Details:

Place of Origin: Made in SINGAPORE
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1794-CE3 / 1794CE3

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $98.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

1794-CE3 technical data PDF download FLEX I/O 1794-CE3 / 1794CE3 0.9 m Extender Cable

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PLC I/O

The 1794-CE3 is the 0.9 m extender cable — the same function as the 1794-CE1 across three times the distance.

It is the choice when the second row of the island sits in another compartment or below a duct rather than immediately beside the first.

1794-PS3 120/220V AC power supply, 24V DC 3.0 A IN STOCK
1794-PS13 120/220V AC power supply, 24V DC 1.3 A IN STOCK
1794-CE1 0.3 m (1 ft) extender cable for FLEX I/O IN STOCK
1794-CE3 0.9 m (3 ft) extender cable for FLEX I/O IN STOCK
1794-NM1 panel mounting kit with 18 screws IN STOCK
1794-N2 empty slot filler module, no electronics IN STOCK
1794-CJC2 cold junction compensation kit, two parts IN STOCK
1794-LBL label kit with die-cut sheet and five labels IN STOCK

Product Specifications 1794-CE3 (PDF)
 Application
 FLEX I/O backplane extender cable
 Cat Num
 1794-CE3
 Brand Name
 Rockwell
 Length
 0.9 m (3 ft)
 Use
 One cable per system, between any modules or adapter and module
 Purpose
 Splits the system into two rows or changes horizontal to vertical

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1794-DU001 (module specifications) and 1794-SG002 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

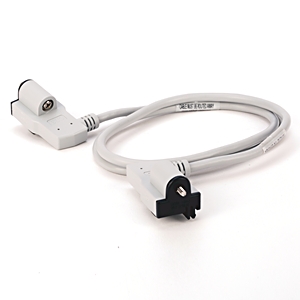

1794-CE3 original product photograph, wide view 1794-CE3 original product photograph, wide view 1794-CE3 original product photograph, wide view

What it does

0.9 m (3 ft) of backplane extension, one cable per system in the documented two-row layout.

Installed between any two modules or between the adapter and a module.

Same electrical function as the 1794-CE1, only longer.

Publication 1794-IN012 covers the cable and the layout diagram.

Layout consequences

The two sections are separate DIN rail runs, each with its own 25 mm air space.

Chassis grounding is per rail section, not carried through the cable.

The backplane still needs one end cap per system, with both ends of the split capped.

Longer cable means more slack to manage; support it rather than letting it hang.

Application

Two-compartment panels where the island must continue past a partition.

Vertical runs below or above the main rail.

Not for tight layouts; the 1794-CE1 leaves less slack.

Not a substitute for a second adapter when the run exceeds the cable.

Ordering

1794-CE3: 0.9 m (3 ft).

1794-CE1: 0.3 m (1 ft).

One per system in the recommended arrangement.

Both cables are passive extenders for the backplane bus.

Where it fits

Split panels with a real distance between the two rail runs.

Machine frames where the I/O follows the mechanics.

Not for outdoor runs; the cable is inside the enclosure.

Not for high-vibration unsupported spans; secure it.

FAQ — 1794-CE3

How long is the 1794-CE3?

0.9 m (3 ft).

How many are used per system?

One, per the selection guide.

Where is it installed?

Between any two modules, or between the adapter and a module.

What does it enable?

A two-row layout, or horizontal to vertical rearrangement.

Is there a shorter version?

Yes, the 1794-CE1 at 0.3 m.

Does it carry chassis ground?

No; each rail section needs its own ground path.


Data sources. Technical values on this page come from Rockwell publication 1794-SG002 (FLEX I/O Selection Guide, accessory section) and 1794-IN012. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
