Allen Bradley PLC 1794-PS3 / 1794PS3

China Allen Bradley PLC 1794-PS3 / 1794PS3 supplier
Allen Bradley PLC 1794-PS3 / 1794PS3 supplier Allen Bradley PLC 1794-PS3 / 1794PS3 supplier Allen Bradley PLC 1794-PS3 / 1794PS3 supplier Allen Bradley PLC 1794-PS3 / 1794PS3 supplier Allen Bradley PLC 1794-PS3 / 1794PS3 supplier

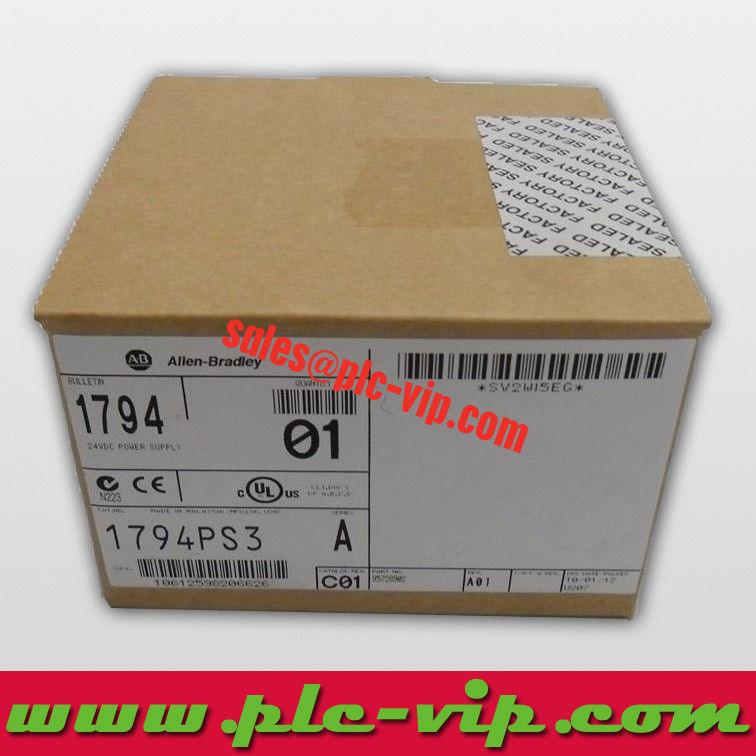

Large Image :  Allen Bradley PLC 1794-PS3 / 1794PS3

Product Details:

Place of Origin: Made in MALAYSIA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1794-PS3 / 1794PS3

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $148.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

1794-PS3 technical data PDF download FLEX I/O 1794-PS3 / 1794PS3 120/220V AC Power Supply, 3 A

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PLC I/O

The 1794-PS3 converts 120V or 220V AC into 24V DC at 3.0 A for a FLEX I/O adapter and its backplane modules.

It is the larger of the two FLEX I/O supplies. Three amps covers an adapter with a full complement of modules, or several adapters when their combined load stays inside the rating.

1794-TB2 16-terminal cage clamp base, 2-wire, up to 132V AC IN STOCK
1794-TB3 16-terminal cage clamp base, 3-wire devices IN STOCK
1794-TB3S 16-terminal spring clamp base, 3-wire devices IN STOCK
1794-TB32 32-terminal cage clamp base for 32-point modules IN STOCK
1794-TB32S 32-terminal spring clamp base for 32-point modules IN STOCK
1794-TB3T temperature base with two cold junction compensation sets IN STOCK
1794-TB3TS spring clamp temperature base with CJC sets IN STOCK
1794-TB3G grounded screw clamp base, 36 I/O, 10 chassis ground IN STOCK
1794-TB3GS grounded spring clamp base, 36 I/O, 10 chassis ground IN STOCK
1794-TBKD cage clamp base with 16 knife disconnects IN STOCK
1794-TBN NEMA-style screw clamp base, up to 264V AC/DC IN STOCK
1794-TBNF fused NEMA-style base, eight 5 x 20 mm fuses IN STOCK
1794-TB37DS 37-pin D-shell termination for digital and analog modules IN STOCK
1794-TB62DS 62-pin D-shell termination for digital and analog modules IN STOCK

Product Specifications 1794-PS3 (PDF)
 Application
 FLEX I/O adapter power supply, 1794 backplane
 Cat Num
 1794-PS3
 Brand Name
 Rockwell
 Input voltage
 120V / 220V AC
 Input power
 86 W
 Apparent input power, max
 205 VA
 Transformer load, max
 250 VA
 Output
 24V DC, 3.0 A maximum
 Surge capability
 Six adapters at 23 A for 2 ms each
 Dimensions
 87 x 94 x 69 mm

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1794-DU001 (module specifications) and 1794-SG002 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

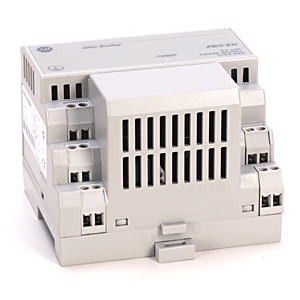

1794-PS3 original product photograph, wide view 1794-PS3 original product photograph, wide view 1794-PS3 original product photograph, wide view

Rating

120V or 220V AC input, 24V DC output at 3.0 A maximum, which is the figure to sum against the module currents in the selection guide.

86 W real input power and 205 VA apparent input power, with a 250 VA transformer load.

Use watts for heat inside the enclosure and VA for distribution sizing, a distinction the publication makes explicitly.

Surge output drives six adapters at 23 A for 2 ms each, which is the inrush a bank of adapters presents at power-up.

87 x 94 x 69 mm is wider than the 1794-PS13 because of the larger transformer.

Sizing the load

Every FLEX I/O adapter provides internal power to the maximum possible number of eight modules; a supply module is needed to feed 24V to the adapter, as the publication puts it.

Digital inputs draw their listed current; digital outputs draw their listed current plus the load current, so an output card's supply budget is not its specification current.

Analog outputs also draw load current, limited by the maximum current or resistive load per channel.

Counter modules may need output load power, and the guide recommends a separate supply for that load for noise immunity.

If the total exceeds 3.0 A, add a second supply — the guide's own instruction rather than an oversized single unit.

Installation practice

Non-Allen-Bradley DC supplies can be used if they operate within the specifications of the devices they power.

1606 switched-mode supplies reach up to 40 A at 24V DC when more power is needed than the PS3 provides.

The supply feeds the adapter, and the adapter feeds the backplane; the 24V is not wired module to module.

Transformer sizing uses the VA load of each supply plus all other loads on the same transformer, not the sum of the DC currents.

Where it fits

120/220V AC panels that need a 24V rail for FLEX I/O without a separate DIN power supply.

Larger islands where 3.0 A covers the module total.

Not for small islands; the 1794-PS13 delivers 1.3 A in a narrower housing.

Not a field-load supply; output and counter load current has to be in the budget.

Selection summary

1794-PS3: 3.0 A, 86 W, 205 VA, 250 VA transformer load, six adapters surge, 87 mm wide.

1794-PS13: 1.3 A, 36 W, 53 VA, 90 VA transformer load, four adapters surge, 69 mm wide.

Both accept 120V or 220V AC and produce 24V DC for the adapter.

The K suffix on either catalog number is the conformally coated version for extended-temperature use.

FAQ — 1794-PS3

What output does the 1794-PS3 provide?

24V DC at 3.0 A maximum from a 120V or 220V AC input.

What is the input power?

86 W real power and 205 VA apparent power, with a 250 VA transformer load.

How many adapters can it surge?

Six adapters at 23 A for 2 ms each.

How do I size the load?

Sum the module currents from the selection guide, including output and counter load current.

Can another 24V supply be used?

Yes, if it meets the specifications of the devices it powers; 1606 supplies reach 40 A.

What are the dimensions?

87 x 94 x 69 mm.


Data sources. Technical values on this page come from Rockwell publication 1794-SG002 (FLEX I/O Selection Guide, power supply comparison) and 1794-IN069. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
