Allen Bradley PLC 1794-TBNK / 1794TBNK

China Allen Bradley PLC 1794-TBNK / 1794TBNK supplier
Allen Bradley PLC 1794-TBNK / 1794TBNK supplier Allen Bradley PLC 1794-TBNK / 1794TBNK supplier Allen Bradley PLC 1794-TBNK / 1794TBNK supplier Allen Bradley PLC 1794-TBNK / 1794TBNK supplier Allen Bradley PLC 1794-TBNK / 1794TBNK supplier Allen Bradley PLC 1794-TBNK / 1794TBNK supplier Allen Bradley PLC 1794-TBNK / 1794TBNK supplier Allen Bradley PLC 1794-TBNK / 1794TBNK supplier Allen Bradley PLC 1794-TBNK / 1794TBNK supplier

Large Image :  Allen Bradley PLC 1794-TBNK / 1794TBNK

Product Details:

Place of Origin: Made in MALAYSIA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1794-TBNK / 1794TBNK

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $93.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

1794-TBNK technical data PDF download FLEX I/O 1794-TBNK / 1794TBNK NEMA-Style Base, Coated

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PLC I/O

The 1794-TBNK is the coated NEMA-style base: 16 I/O, 2 common and 2 +V terminals, rated to 264V AC/DC and shipped with a cover over the I/O wiring.

264V is what makes the NEMA base different from the rest of the family. It is the base for 120/220V AC modules where the field wiring itself sits at line potential.

1794-TB2 16-terminal cage clamp base, 2-wire, up to 132V AC IN STOCK
1794-TB3 16-terminal cage clamp base, 3-wire devices IN STOCK
1794-TB3S 16-terminal spring clamp base, 3-wire devices IN STOCK
1794-TB32 32-terminal cage clamp base for 32-point modules IN STOCK
1794-TB32S 32-terminal spring clamp base for 32-point modules IN STOCK
1794-TB3T temperature base with two cold junction compensation sets IN STOCK
1794-TB3TS spring clamp temperature base with CJC sets IN STOCK
1794-TB3G grounded screw clamp base, 36 I/O, 10 chassis ground IN STOCK
1794-TB3GS grounded spring clamp base, 36 I/O, 10 chassis ground IN STOCK
1794-TBKD cage clamp base with 16 knife disconnects IN STOCK
1794-TBN NEMA-style screw clamp base, up to 264V AC/DC IN STOCK

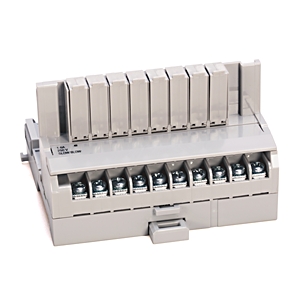

1794-TBNF fused NEMA-style base, eight 5 x 20 mm fuses IN STOCK
1794-TB37DS 37-pin D-shell termination for digital and analog modules IN STOCK
1794-TB62DS 62-pin D-shell termination for digital and analog modules IN STOCK

Product Specifications 1794-TBNK (PDF)
 Application
 FLEX I/O NEMA-style terminal base, high voltage
 Cat Num
 1794-TBNK
 Brand Name
 Rockwell
 Termination
 Screw clamp, NEMA style, with wiring cover
 Connections
 16 I/O, 2 common, 2 +V
 Voltage
 Up to 264V AC/DC
 Wire size
 0.34...3.3 mm2 (22...12 AWG), 75 deg C or greater
 Dimensions
 94 x 94 x 69 mm
 Operating temperature
 -20...70 deg C
 Coating
 Conformal

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1794-DU001 (module specifications) and 1794-SG002 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

1794-TBNK original product photograph, wide view 1794-TBNK original product photograph, wide view 1794-TBNK original product photograph, wide view

Terminals and cover

16 I/O, 2 common and 2 +V terminals, NEMA-style screw clamp with larger gauge capacity.

264V AC/DC rating on the terminals, above the 132V AC / 156V DC of the cage clamp family.

A cover for I/O wiring is part of the base, which is what the NEMA designation is for.

-20...70 deg C with the K coating over the assembly.

High voltage practice

Terminal voltage rating is not a module rating; the installed module must also be rated for the circuit.

Field wiring at line potential needs the cover and separation from low-voltage signals.

2 common and 2 +V only, so this base is not a 16-point 3-wire digital base.

The 1794-TBN is the uncoated equivalent at the same 264V rating.

Application

120/220V AC input and output modules in a FLEX I/O island.

Panels where field circuits are at line voltage and a covered termination is required.

Not for 32-point cards; the 1794-TB32 is the 32-point base.

Not for fused output protection; the 1794-TBNF carries eight fuses.

Mounting

35 x 7.5 mm DIN rail with 25 mm air space.

Zinc-plated, yellow-chromated steel rail for chassis grounding.

1794-NM1 panel kit where no rail is used.

One end cap per system, bases plugging together into the backplane.

Selection summary

1794-TBN: uncoated NEMA base, 264V AC/DC.

1794-TBNK: the same base with conformal coating.

1794-TBNF: fused NEMA base, eight 5 x 20 mm fuses.

Choose the K version for -XT modules and condensing cabinets.

FAQ — 1794-TBNK

What voltage is the 1794-TBNK rated for?

Up to 264V AC/DC at the terminals.

How many terminals does it have?

16 I/O, 2 common and 2 +V.

Does it include a wiring cover?

Yes; the cover is part of the NEMA-style construction.

What is the K suffix?

Conformal coating, paired with -XT modules.

What is the operating temperature?

-20...70 deg C.

Can it take 32-point modules?

No; use the 1794-TB32 for 32-point cards.


Data sources. Technical values on this page come from Rockwell publication 1794-SG002 (FLEX I/O Selection Guide, terminal base comparison) and 1794-IN092. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
