Allen Bradley PLC 1734-TOPS / 1734TOPS

China Allen Bradley PLC 1734-TOPS / 1734TOPS supplier
Allen Bradley PLC 1734-TOPS / 1734TOPS supplier Allen Bradley PLC 1734-TOPS / 1734TOPS supplier Allen Bradley PLC 1734-TOPS / 1734TOPS supplier Allen Bradley PLC 1734-TOPS / 1734TOPS supplier Allen Bradley PLC 1734-TOPS / 1734TOPS supplier

Large Image :  Allen Bradley PLC 1734-TOPS / 1734TOPS

Product Details:

Place of Origin: Made in CHINA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley Terminal Base 1734-TOPS / 1734TOPS

Payment & Shipping Terms:

Minimum Order Quantity: 10 /PCS
Price: $8.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 30 PCS
Detailed Product Description

1734-TOPS technical data PDF download POINT I/O 1734-TOPS / 1734TOPS 8-Terminal Wiring Base

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: POINT I/O Terminal Base

The 1734-TOPS is a 8-terminal POINT I/O wiring base with a spring-clamp removable terminal block: the base mounts on the DIN rail, the I/O module snaps into it, and integrated one-piece block carries the field wiring.

The lightest base in the family at 55.68 g, and the one that needs a specific screwdriver to release a wire.

1734-TB 8 terminal wiring base with removable screw-clamp RTB IN STOCK
1734-TB3 12 terminal wiring base with removable screw-clamp RTB3 IN STOCK
1734-TB3S 12 terminal wiring base with removable spring-clamp RTB3S IN STOCK
1734-TOP 8 terminal one-piece base, screw-clamp IN STOCK
1734-TOPS 8 terminal one-piece base, spring-clamp IN STOCK
1734-TOP3 12 terminal one-piece base, screw-clamp IN STOCK
1734-TOP3S 12 terminal one-piece base, spring-clamp IN STOCK
1734-CTM Common terminal module, 2 A per point, 4 A per module IN STOCK

Product Specifications 1734-TOPS (PDF)
 Number of terminations
 8
 Termination type
 spring-clamp
 Wiring block
 integrated one-piece block
 Field power bus supply voltage
 28.8V DC, 120/240V AC
 Field power bus supply current, max
 10 A
 Signal terminal voltage, max
 28.8V DC, 120/240V AC
 Signal terminal current, max
 2 A
 Wire size
 0.25...2.5 mm2 (22...14 AWG), 75 deg C or greater, 1.2 mm insulation max
 Dimensions, HxWxD
 49 x 12 x 144 mm
 Weight, approx
 55.68 g
 Enclosure type rating
 None (open-style)
 Temperature, operating
 Dependent on the installed module, -20...55 deg C

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1734-IN028 (module specifications) and 1734-UM001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

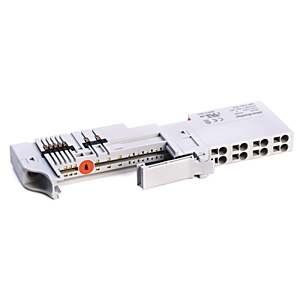

1734-TOPS original product photograph 1734-TOPS original product photograph, second view 1734-TOPS original product photograph, third view

Eight spring-clamp terminals, one moulding

0/1 and 2/3 carry the channels, 4/5 common, 6/7 supply. The clamp is released by inserting a 3 mm bladed screwdriver - catalog number 1492-N80 - into the opening at about 97 degrees and pushing gently up. A random pocket screwdriver will chew the plastic.

The 1492-N80 requirement

Rockwell names the tool in the installation instructions because the release slot is angled: the blade surface has to be parallel with the top of the opening. This is the one POINT I/O base where the wrong tool turns a service call into a base replacement.

55.68 g, shortest rail footprint

49 x 12 x 144 mm, 55.68 g. Lower and lighter than 1734-TOP because the spring mechanism replaces the screw towers, which is an advantage in a compact enclosure with a shallow depth.

Ratings that apply to the whole base

Field power bus 10 A and signal terminals 2 A, at 28.8V DC or 120/240V AC. The 10 A figure is the bus capacity that the 1734-EP24DC and 1734-FPD modules are built around; the 2 A is per signal terminal, which is why an output slice rated 2 A per point uses the base at its limit rather than in the middle of its range. Isolation and voltage segregation come from the module that sits in the base, not from the base itself - the base is a passive wiring carrier.

Removing a base means removing its neighbour first

Rockwell's removal sequence is explicit: remove the module in the base, then the module in the base to the right, then the RTB, then release the orange base locking screw and lift straight up. The base to the right has to come out because the interlocking side pieces and the POINTBus contacts overlap. Pulling a base with power applied interrupts the backplane and can cause unintended machine motion.

FAQ — 1734-TOPS

What tool releases the wire on 1734-TOPS?

A 3 mm bladed screwdriver, catalog number 1492-N80, inserted at about 97 degrees into the opening and pushed gently up.

How many terminals does it have?

Eight, wired 0/1, 2/3 channels, 4/5 common, 6/7 field supply.

What does it weigh?

55.68 g, the lightest terminal base in the POINT I/O family.

What are the electrical ratings?

10 A field power bus, 2 A per signal terminal, 28.8V DC or 120/240V AC.

How does it differ from 1734-TBS?

TOPS is one-piece and spring-clamp in 49 mm height; TBS is a two-piece assembly with a removable block in 65 mm height.


Data sources. Technical values on this page come from Rockwell publication 1734-IN028 (POINT I/O One-piece Wiring Bases) and 1734-UM001. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
