Allen Bradley PLC 1734-OE4C / 1734OE4C

China Allen Bradley PLC 1734-OE4C / 1734OE4C supplier
Allen Bradley PLC 1734-OE4C / 1734OE4C supplier Allen Bradley PLC 1734-OE4C / 1734OE4C supplier Allen Bradley PLC 1734-OE4C / 1734OE4C supplier Allen Bradley PLC 1734-OE4C / 1734OE4C supplier Allen Bradley PLC 1734-OE4C / 1734OE4C supplier Allen Bradley PLC 1734-OE4C / 1734OE4C supplier Allen Bradley PLC 1734-OE4C / 1734OE4C supplier Allen Bradley PLC 1734-OE4C / 1734OE4C supplier Allen Bradley PLC 1734-OE4C / 1734OE4C supplier

Large Image :  Allen Bradley PLC 1734-OE4C / 1734OE4C

Product Details:

Place of Origin: Made in SINGAPORE
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley POINT I/O 1734-OE4C / 1734OE4C

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $228.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 30 PCS
Detailed Product Description

1734-OE4C technical data PDF download POINT I/O 1734-OE4C / 1734OE4C 4-Channel Analog Current Output Module

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: POINT I/O Analog Output

The 1734-OE4C provides four 4...20 mA or 0...20 mA outputs in one 12 mm slice, with 16-bit resolution over 0...21 mA - the highest resolution of the 1734 current output family, against 13 bits on the two-channel 1734-OE2C.

Four channels in one module mean a shared reference and a shared failure domain: the dissipation rises to 2.15 W with outputs unloaded, and one module failure takes four loops with it.

1734-OE2C 2 analog current outputs, 4...20 mA, 13 bits, non-isolated IN STOCK
1734-OE2V 2 analog voltage outputs, 0...10V or +/-10V, 14 bits, non-isolated IN STOCK
1734-OE4C 4 analog current outputs, 4...20 mA, 16 bits IN STOCK

Product Specifications 1734-OE4C (PDF)
 Number of outputs
 4 single-ended, non-isolated, current
 Resolution
 16 bits over 0...21 mA, 2.5 uA/count
 Output current range
 4...20 mA or 0...20 mA, user configurable
 Data format
 Signed integer
 Accuracy
 0.1% full scale @ 25 °C, including offset, gain, non-linearity and repeatability
 Accuracy drift with temperature
 less than 50 ppm/deg C
 Step response to 63% of full scale
 40 us
 Output conversion rate
 1 us
 Power dissipation, max
 1.86 W with 750 ohm load on each output, 2.15 W with 0 ohm
 Thermal dissipation, max
 6.34 BTU/hr at 750 ohm, 7.33 BTU/hr at 0 ohm
 Terminal base
 1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS
 Keyswitch position
 4
 POINTBus current, max
 75 mA @ 5V DC
 Isolation voltage
 50V continuous, basic insulation, I/O to system
 Operating temperature
 -20...55 °C

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1734-SG001 (module specifications) and 1734-UM001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

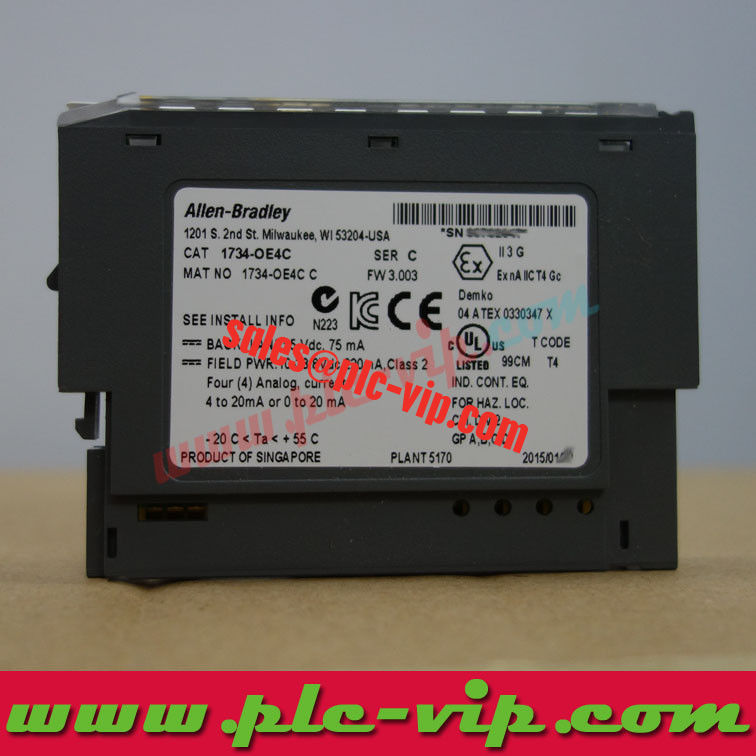

1734-OE4C original product photograph, wide view 1734-OE4C original product photograph, label view 1734-OE4C original product photograph, second unit

16 bits where the two-channel module has 13

Both modules quote 2.5 µA per count, but the four-channel module resolves 16 bits over 0...21 mA against 13 bits on 1734-OE2C. For a ratio control valve or a temperature setpoint that has to move in small increments the extra resolution removes visible stepping; for a simple open/close positioner the two-channel module is sufficient.

Four loops, one failure domain

A single module now carries four current loops. Its power dissipation is 2.15 W at zero burden and 6.34 to 7.33 BTU/hr, roughly double the two-channel module, and losing the module loses all four outputs at once. Where the process needs independent loops, two 1734-OE2C modules buy isolation of failure at the cost of panel space.

Thermal behaviour with burden

1.86 W at 750 Ω burden and 2.15 W at 0 Ω reflects the same physics as the two-channel module: a shorted or very light burden is the hot case. In a closed cabinet with other heat sources, that difference between 6.34 and 7.33 BTU/hr is what the enclosure calculation has to absorb.

Drift and speed

Less than 50 ppm/°C drift, 40 µs step response to 63% of full scale and a 1 µs conversion rate. The higher resolution costs nothing in speed, but the drift specification is the loosest of the OE family (5 ppm on OE2V, 30 ppm on OE2C) - a consideration for outdoor panels.

Base and keyswitch

1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS at keyswitch position 4, POINTBus draw 75 mA at 5V DC, 50V continuous isolation to system. The four-channel module does not list the 1734-TB3/TB3S base in its published data, so a TB3-based panel needs a base check before ordering.

Adding a fifth loop to an existing slice

Where a panel already runs two 1734-OE2C modules and needs a fifth and sixth loop, one 1734-OE4C replaces both at 12 mm instead of 24 mm and one keyswitch position instead of two. The saving is panel width and two backplane addresses; the cost is that the two new loops now share a module with four others, so a spare-part strategy has to keep an OE4C on the shelf rather than an OE2C.

FAQ — 1734-OE4C

How does 1734-OE4C differ from 1734-OE2C?

Four current outputs instead of two, 16-bit resolution over 0...21 mA instead of 13 bits, 40 us step response instead of 24 us, and higher dissipation - 2.15 W unloaded against 1.83 W. Both use keyswitch 4 and 4...20 mA or 0...20 mA ranges.

What resolution does the module provide?

16 bits over 0...21 mA, 2.5 uA per count, with 0.1% of full scale accuracy at 25 deg C.

What is the drift over temperature?

Less than 50 ppm/deg C, looser than the 30 ppm/deg C of 1734-OE2C and the 5 ppm/deg C of 1734-OE2V.

Which terminal bases fit 1734-OE4C?

The published data lists 1734-TB, 1734-TBS, 1734-TOP and 1734-TOPS; 1734-TB3 and 1734-TB3S are not listed, so verify before using a TB3-based assembly.

Are the four outputs isolated?

No. Isolation is 50V continuous basic insulation from I/O to system, with no channel-to-channel isolation.


Data sources. Technical values on this page come from Rockwell publication 1734-IN027 series installation instructions for the 2-channel analog output modules (1734-OE2C, 1734-OE2CK, 1734-OE2V, 1734-OE2VK, Series C), 1734-SG001E-EN-P (POINT I/O Modules Selection Guide, March 2013) for 1734-OE4C and 1734-UM001. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
