Allen Bradley PLC 1734-ACNR / 1734ACNR

China Allen Bradley PLC 1734-ACNR / 1734ACNR supplier
Allen Bradley PLC 1734-ACNR / 1734ACNR supplier Allen Bradley PLC 1734-ACNR / 1734ACNR supplier Allen Bradley PLC 1734-ACNR / 1734ACNR supplier Allen Bradley PLC 1734-ACNR / 1734ACNR supplier Allen Bradley PLC 1734-ACNR / 1734ACNR supplier Allen Bradley PLC 1734-ACNR / 1734ACNR supplier Allen Bradley PLC 1734-ACNR / 1734ACNR supplier Allen Bradley PLC 1734-ACNR / 1734ACNR supplier Allen Bradley PLC 1734-ACNR / 1734ACNR supplier Allen Bradley PLC 1734-ACNR / 1734ACNR supplier

Large Image :  Allen Bradley PLC 1734-ACNR / 1734ACNR

Product Details:

Place of Origin: Made in SINGAPORE
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1734-ACNR / 1734ACNR

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $245.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 25 PCS
Detailed Product Description

1734-ACNR technical data PDF download POINT I/O 1734-ACNR / 1734ACNR ControlNet Redundant Adapter

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: POINT I/O Communication Adapter

The 1734-ACNR is the ControlNet head of a POINT I/O assembly with two coaxial channels, A and B, so the adapter keeps talking to the controller when one trunk cable or one tap fails.

It carries 17 modules on its internal 1 A POINTBus supply, addresses 248 output bytes, and consumes 10.2 W at 28.8V DC - which is more than the EtherNet/IP equivalent, because the ControlNet physical layer is built into the adapter.

1734-AENT EtherNet/IP adapter, 10/100 Mbit, 63 modules, 1.0 A POINTBus IN STOCK
1734-ADN DeviceNet adapter, 125/250/500 kbit, 63 modules IN STOCK
1734-ADNX DeviceNet adapter with Subnet scanner, node 0 on the subnet IN STOCK
1734-ACNR ControlNet adapter, redundant coax A/B, node 01...99 IN STOCK
1734-APB PROFIBUS DP adapter, 63 modules on one DP node IN STOCK

Product Specifications 1734-ACNR (PDF)
 Network
 ControlNet, redundant media, coaxial channel A and channel B
 Node address
 2-position thumbwheel, 01...99
 Expansion I/O capacity
 Up to 17 modules at 75 mA each (1.275 A), further modules need an expansion power supply
 POINTBus output current, max
 1 A @ 5V DC (4.75...5.25V DC)
 Input voltage rating, nom
 24V DC, range 10...28.8V DC
 Field side power requirement, max
 425 mA @ 24V DC (+20% = 28.8V DC)
 Field power bus supply current, max
 10 A
 Inrush current
 6 A for 10 ms
 Output byte capacity
 248 bytes
 Isolation voltage
 50V continuous, Basic insulation, type tested 750V AC for 60 s
 Power consumption
 10.2 W @ 28.8V DC
 Processor compatibility
 1747, 1756, 1761, 1762, 1764, 1789, 1794
 Temperature code
 T4A (North American)
 Operating temperature
 -20...55 °C
 Dimensions, HxWxD
 76.2 x 54.9 x 133.4 mm
 Weight, approx
 255 g

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1734-IN582 (module specifications) and 1734-UM008 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

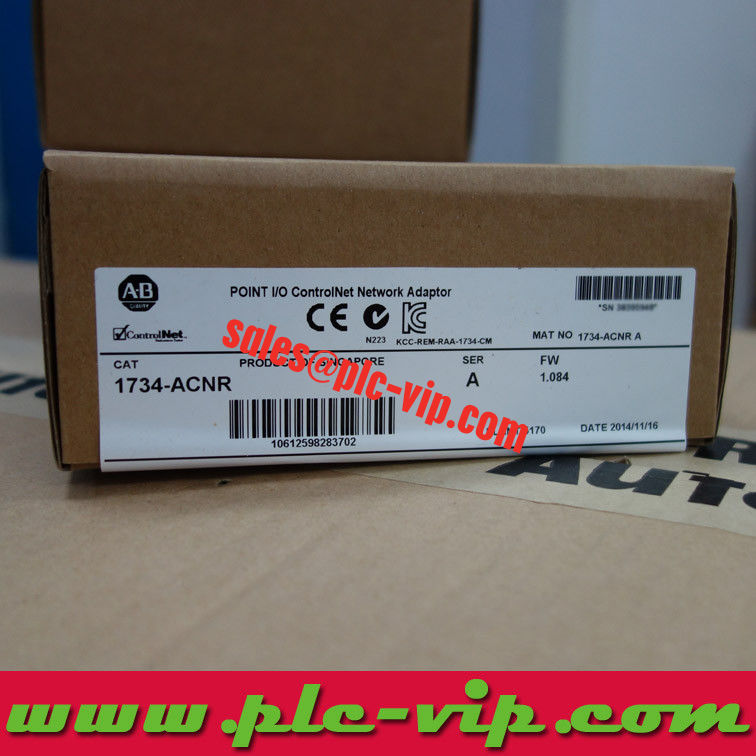

1734-ACNR original product photograph, wide view 1734-ACNR original product photograph, label view 1734-ACNR original product photograph, second unit

What media redundancy actually protects

Two coax channels are not two networks: both carry the same ControlNet traffic and the receiver picks the healthy channel. A cut trunk, a failed tap or a loose BNC on one segment therefore costs a re-tune, not a shutdown. What it does not protect is the adapter itself, the POINTBus, or the modules - those remain single points of failure and must be covered by spare parts rather than by the redundant cabling.

17 modules, and why the arithmetic matters

The published expansion table works through 17 modules at 75 mA, which is 1.275 A. The adapter's POINTBus output is rated 1 A at 5V DC, so a stack of analog or relay modules reaches the ceiling well before 17 slots. Design to the 1.0 A rating and insert a 1734-EP24DC where the budget runs out, rather than trusting the module count.

Node address 01...99

A 2-position thumbwheel selects 01 to 99 - the deepest node range of any POINT I/O adapter, which is what a large ControlNet segment needs. The address is read at power-up, so changing it means a power cycle; the adapter is then scheduled by the ControlNet scanner like any other node.

Isolation is 750V AC, not 2550V DC

50V continuous, Basic insulation, type tested at 750V AC for 60 s between communication, user power and chassis. That is a logic-level barrier for a coax network - it is not a substitute for separating the assembly's 24V field wiring from mains circuits elsewhere in the panel.

Series C modules only

Rockwell states that only Series C POINT I/O modules work with the 1734-ACNR; Series A and B modules do not. A like-for-like replacement of an older ControlNet adapter therefore becomes a module audit as well, and the spare-parts list has to be checked before the swap, not after.

Where the 10.2 W goes

At 28.8V DC the adapter consumes 10.2 W and passes up to 10 A of field power to the modules, with 425 mA taken for itself. In a 76.2 x 54.9 x 133.4 mm housing weighing 255 g, the heat is concentrated at one end of the stack, so vertical clearance above the assembly and the enclosure's internal circulation decide whether the 55 deg C ambient limit is actually held.

FAQ — 1734-ACNR

What does redundant media mean on 1734-ACNR?

The adapter has two coaxial ControlNet channels, A and B, carrying the same traffic so a failed cable or tap on one segment does not stop communication. The adapter, POINTBus and modules are still single points of failure.

How many modules can 1734-ACNR support?

Up to 17 modules at 75 mA each, but the POINTBus output is 1 A at 5V DC. Add the current of every module and use 1734-EP24DC expansion supplies beyond that.

What node addresses are available?

01 to 99, set with the 2-position thumbwheel, and read at power-up.

What isolation voltage does the adapter have?

50V continuous, Basic insulation, type tested at 750V AC for 60 s - a logic-level barrier, not a mains barrier.

Does 1734-ACNR work with Series A or B modules?

No. Only Series C POINT I/O modules are supported by the 1734-ACNR.


Data sources. Technical values on this page come from Rockwell publication 1734-IN582 (POINT I/O ControlNet Adapter 1734-ACNR, 1734-ACRNK) and 1734-UM008 (POINT I/O ControlNet Adapter 1734-ACNR User Manual). Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
