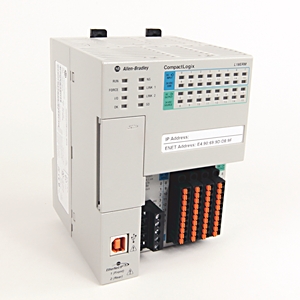

The 1769-L18ERM-BB1B is a CompactLogix 5370 L1-series controller: the only L1 controller that runs motion axes — one or two — over EtherNet/IP.
512 KB memory, 8 EtherNet/IP nodes, 256 connections and 32 sockets. Same 512 KB, eight nodes and 11.5 W as the standard L18ER; the difference is the motion licence built into the firmware.
| 1769-IA16 | Compact 16-point 120V AC input module | IN STOCK |
| 1769-IQ16 | Compact 16-point 24V DC sink/source input module | IN STOCK |
| 1769-IQ32 | Compact 32-point 24V DC sink/source input module | IN STOCK |
| 1769-OA16 | Compact 16-point 120/240V AC output module | IN STOCK |
| 1769-OB16 | Compact 16-point 24V DC output module | IN STOCK |
| 1769-OB32 | Compact 32-point 24V DC output module | IN STOCK |
| 1769-OW16 | Compact 16-point relay output module | IN STOCK |
| 1769-IF4 | Compact 4-channel analog input module | IN STOCK |
| 1769-IF8 | Compact 8-channel analog input module | IN STOCK |
| 1769-IF16C | Compact 16-channel current input module | IN STOCK |
| 1769-OF4 | Compact 4-channel analog output module | IN STOCK |
| 1769-OF8V | Compact 8-channel voltage output module | IN STOCK |
| 1769-OF8C | Compact 8-channel current output module | IN STOCK |
| 1769-ARM | Compact address reserve module | IN STOCK |
Cat Num |
1769-L18ERM-BB1B |
Application |
CompactLogix 5370 control system |
Brand Name |
Rockwell |
User memory |
512 KB |
EtherNet/IP nodes, max |
8 |
Local expansion, max |
8 - 1734 POINT I/O modules |
I/O banks, max |
Not applicable (single controller cluster) |
Embedded I/O |
16 sinking 24V DC digital inputs, 16 sourcing 24V DC digital outputs |
Integrated motion axes |
1 or 2 axes over EtherNet/IP |
Current draw @ 5V DC |
1 A |
Current draw @ 24V DC, controller |
Not applicable (built-in 24V DC input power supply) |
Power dissipation, max |
11.5 W |
Power supply distance rating |
Not applicable (embedded power supply) |
Operating temperature |
-20...+60 °C (-4...+140 °F) |
North American temperature code |
T4A |
Weight, approx |
0.66 kg (1.5 lb) |
Module width |
100 mm (3.94 in.) |
Programming |
Studio 5000 Logix Designer; relay ladder, structured text, function block, SFC |
Tasks |
32 continuous/periodic tasks, 100 programs per task |
Connections, max |
256 |
Sockets, max |
32 |
Ethernet ports |
2 (embedded switch, one IP address) |
USB port |
1 (temporary connection only) |
Nonvolatile memory |
1784-SD1 card (1 Gb) shipped with controller; 1784-SD2 (2 Gb) optional |
Battery |
Not required; internal energy-storage solution holds the clock |
Enclosure type rating |
None (open-style) |
Certification |
c-UL-us UL Listed, Class I Div 2; UKCA/CE EMC; RCM; RoHS |
Vibration |
5 g @ 10...500 Hz |
Shock, operating |
20 g DIN rail / 30 g panel |
Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1769-TD006 (module specifications) and 1769-SG001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.
How much user memory does the 1769-L18ERM-BB1B have?
512 KB of user memory, with a 1784-SD1 card of 1 Gb fitted at shipment and the 1784-SD2 card available for 2 Gb.
How many EtherNet/IP nodes can the 1769-L18ERM-BB1B control?
Up to 8 nodes on EtherNet/IP, within 256 total connections and 32 sockets.
How many local expansion modules does the 1769-L18ERM-BB1B support?
8 - 1734 POINT I/O modules.
What is the current draw of the 1769-L18ERM-BB1B?
1 A at 5V DC and Not applicable (built-in 24V DC input power supply) at 24V DC for the controller; power dissipation is 11.5 W.
How wide is the 1769-L18ERM-BB1B?
100 mm (3.94 in.) wide and weighs approximately 0.66 kg (1.5 lb), mounted on DIN rail.
What temperature range does the 1769-L18ERM-BB1B accept?
-20...+60 °C (-4...+140 °F) operating, with a North American temperature code of T4A.
