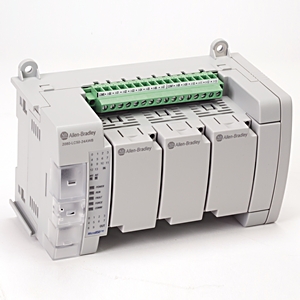

The 2080-LC50-24AWB is the 24-point Micro850 with 120 V AC inputs and ten relay outputs, plus an embedded Ethernet port.
The Micro850 is the expandable end of the family: four 2085 expansion modules, three plug-in slots and eight Ethernet nodes.
| 2080-LC10-12AWA | Micro810, 8 AC in / 4 relay out | IN STOCK |
| 2080-LC10-12QWB | Micro810, 8 DC/AC in / 4 relay out | IN STOCK |
| 2080-LC10-12QBB | Micro810, 8 DC/AC in / 4 DC source out | IN STOCK |
| 2080-LC10-12DWD | Micro810, 8 12V DC in / 4 relay out | IN STOCK |
| 2080-LC20-20AWB | Micro820, 12 AC in / 8 relay out | IN STOCK |
| 2080-LC20-20QWB | Micro820, 12 DC in / 8 relay out | IN STOCK |
| 2080-LC20-20QBB | Micro820, 12 DC in / 8 DC source out | IN STOCK |
| 2080-LC20-20AWBR | Micro820 with removable terminal blocks | IN STOCK |
| 2080-LC20-20QWBR | Micro820 with removable terminal blocks | IN STOCK |
| 2080-LC20-20QBBR | Micro820 with removable terminal blocks | IN STOCK |
| 2080-LC30-10QWB | Micro830, 6 DC/AC in / 4 relay out | IN STOCK |
| 2080-LC30-10QVB | Micro830, 6 DC/AC in / 4 DC sink out | IN STOCK |
| 2080-LC30-16AWB | Micro830, 10 AC in / 6 relay out | IN STOCK |
| 2080-LC30-16QWB | Micro830, 10 DC/AC in / 6 relay out | IN STOCK |
| 2080-LC30-16QVB | Micro830, 10 DC/AC in / 6 DC sink out | IN STOCK |
| 2080-LC30-24QWB | Micro830, 14 DC/AC in / 10 relay out | IN STOCK |
| 2080-LC30-24QVB | Micro830, 14 DC/AC in / 10 DC sink out | IN STOCK |
| 2080-LC30-24QBB | Micro830, 14 DC/AC in / 10 DC source out | IN STOCK |
| 2080-LC30-48AWB | Micro830, 28 AC in / 20 relay out | IN STOCK |
| 2080-LC30-48QWB | Micro830, 28 DC/AC in / 20 relay out | IN STOCK |
| 2080-LC30-48QVB | Micro830, 28 DC/AC in / 20 DC sink out | IN STOCK |
| 2080-LC50-24AWB | Micro850, 14 AC in / 10 relay out | IN STOCK |
| 2080-LC50-24QVB | Micro850, 14 DC/AC in / 10 DC sink out | IN STOCK |
| 2080-LC50-24QBB | Micro850, 14 DC/AC in / 10 DC source out | IN STOCK |
| 2080-LC50-48AWB | Micro850, 28 AC in / 20 relay out | IN STOCK |
| 2080-LC50-48QWB | Micro850, 28 DC/AC in / 20 relay out | IN STOCK |
| 2080-LC50-48QVB | Micro850, 28 DC/AC in / 20 DC sink out | IN STOCK |
| 2080-LC50-48QBB | Micro850, 28 DC/AC in / 20 DC source out | IN STOCK |
Catalog number |
2080-LC50-24AWB |
Family |
Micro850 expandable Ethernet controller |
I/O points |
24 (14 inputs, 10 relay outputs) |
Inputs |
14 inputs, 120 V AC |
Outputs |
10 relay outputs, 2 A at 240 V AC and 1 A at 24 V DC |
Supply |
24 V DC Class 2, 21.4 to 26.4 V DC |
Communication |
USB 2.0 Type B, 10/100 Base-T Ethernet RJ45, RS-232/RS-485 non-isolated combo serial |
Plug-in modules |
3 slots (24-point) or 5 slots (48-point), plus up to four expansion I/O modules |
Dimensions, H x W x D |
90 x 158 x 80 mm |
Shipping weight |
0.423 kg |
Temperature rating |
-20 to 65 C (-4 to 149 F) |
Power consumption, max |
11 W without plug-ins and expansion, 33 W with |
Lifecycle |
Rockwell literature 2080-TD001 lists the 2080-L50E successor for this point count; the LC50 catalog number itself does not appear in the current revision |
Output terminals |
Relay |
Ethernet nodes |
8 |
Expansion I/O |
Up to four 2085 modules |
Remote LCD |
2080-REMLCD supported from firmware 23.011 |
Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2080-TD001 (module specifications) and 2080-UM002 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.
The 2080-LC50-24AWB is the 24-point Micro850 with 120 V AC inputs and ten relay outputs, plus an embedded Ethernet port.
The Micro850 is the expandable end of the family: four 2085 expansion modules, three plug-in slots and eight Ethernet nodes.
It is the controller for a machine that needs more than 24 points later but has to start at 24.
Relay outputs are rated 2 A at 240 V AC and 1 A at 24 V DC and will switch a contactor directly.
Input circuit is 120 V AC at 16 mA; the AC input models are for panels with existing AC field wiring.
Terminal screw torque is 0.4 to 0.5 Nm with a 0.6 x 3.5 mm screwdriver.
Communication and capacity. USB 2.0 Type B, 10/100 Base-T Ethernet RJ45, RS-232/RS-485 non-isolated combo serial
3 slots (24-point) or 5 slots (48-point), plus up to four expansion I/O modules plug-in modules can be fitted, each drawing about 1.44 W of the controller's internal budget.
Connected Components Workbench is the programming environment for the whole family, so a project built for one Micro800 controller converts to another with the I/O reassigned.
Mounting is DIN rail or panel, 90 x 158 x 80 mm, shipping 0.423 kg.
Rated ambient -20 to 65 C (-4 to 149 F), maximum consumption 11 W without plug-ins and expansion, 33 W with.
Lifecycle. Rockwell literature 2080-TD001 lists the 2080-L50E successor for this point count; the LC50 catalog number itself does not appear in the current revision
Three plug-in slots, four expansion I/O modules, eight Ethernet nodes and REMLCD support from firmware 23.011.
Rockwell's technical data lists the 2080-L50E-24AWB successor for this point count in the current revision.
Supply is 24 V DC Class 2, 21.4 to 26.4 V DC.
How many I/O points does 2080-LC50-24AWB have?
Micro850 expandable Ethernet controller: 24 (14 inputs, 10 relay outputs).
What is the input type on 2080-LC50-24AWB?
14 inputs, 120 V AC.
What does 2080-LC50-24AWB use for communication?
USB 2.0 Type B, 10/100 Base-T Ethernet RJ45, RS-232/RS-485 non-isolated combo serial.
What are the dimensions of 2080-LC50-24AWB?
90 x 158 x 80 mm, 0.423 kg.
What is the lifecycle status of 2080-LC50-24AWB?
Rockwell literature 2080-TD001 lists the 2080-L50E successor for this point count; the LC50 catalog number itself does not appear in the current revision.
