Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC

China Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC supplier
Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC supplier Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC supplier Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC supplier Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC supplier Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC supplier Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC supplier

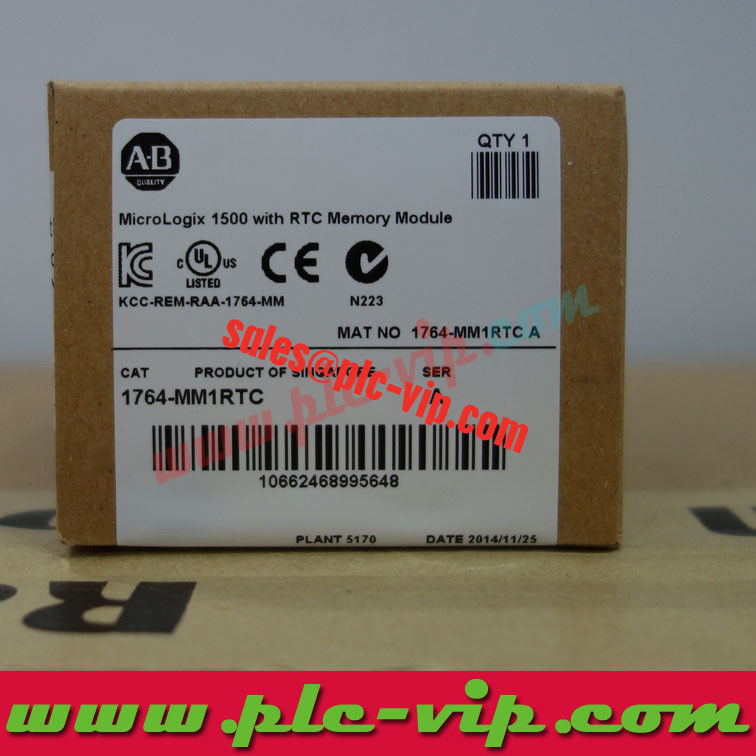

Large Image :  Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC

Product Details:

Place of Origin: Made in SINGAPORE
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1764-MM1RTC / 1764MM1RTC

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $92.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

1764-MM1RTC technical data PDF download 1764-MM1RTC Rockwell MicroLogix 1500 8K Memory Module with RTC

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: MicroLogix 1100 / 1763

1764-MM1RTC is a 8K with real-time clock memory module for the MicroLogix 1500: 8K of user memory, clock included.

Its job is transport and recovery — the program goes onto the module at the panel and comes back onto a replacement processor without a laptop.

1764-24AWA Base, 12 ac inputs, 12 relay outputs, ac power IN STOCK
1764-28BXB1 Base, 28 point, 24V dc, relay + FET IN STOCK
1764-LSP Standard processor, 7.6 KB IN STOCK
1764-DAT Data access tool IN STOCK
1764-MM1 Memory module, 8K IN STOCK
1764-MM2 Memory module, 16K IN STOCK
1764-MM3 Memory module, 16K plus recipe data IN STOCK
1764-MM1RTC 8K memory with real-time clock IN STOCK
1764-MM2RTC 16K memory with real-time clock IN STOCK
1764-MM3RTC 16K memory with real-time clock and recipe data IN STOCK
1764-RTC Real-time clock IN STOCK
1764-RPLTB1 Replacement part IN STOCK
1764-RPLTB2 Replacement part IN STOCK
1764-RPLCDR1 Replacement part IN STOCK

Product Specifications 1764-MM1RTC (PDF)
 Catalog number
 1764-MM1RTC
 Description
 MicroLogix 1500 memory module with real-time clock
 Memory size
 8K
 Real-time clock
 Included
 Programs held
 One user program at a time
 Fits
 1764-LSP or 1764-LRP processor option slot
 Lifecycle status
 Discontinued June 30, 2017
 Replacement category
 No planned RA replacement
 UPC
 662468995641
 Warranty
 1 year standard
 Publication
 1764-UM001

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1764-UM001 (module specifications) and 1764-UM001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

1764-MM1RTC 1764-MM1RTC 1764-MM1RTC 1764-MM1RTC 1764-MM1RTC

Memory and RTC

8K of user memory, and carries the real-time clock. The module stores one program at a time; the controller's RUN LED flashes during transfer.

The RTC variant exists because the processor has no clock of its own — timestamped fault records and scheduled operations need this module.

Which module for which program

8K modules suit the 1764-LSP and its 8K program limit. Programs above 8K need the enhanced 1764-LRP and a 16K module.

There is no functional difference between this module and the MM3 equivalent unless the program writes recipe data to the Data Log Queue.

Fit and use

The module goes into the processor option slot and is loaded or stored from the programming software. It shares that slot with 1764-RTC and 1764-DAT — one device at a time.

Power down before fitting. The connector pins are exposed the moment the cover comes off, and a module fitted with the controller live is how processors get killed.

Lifecycle

Discontinued June 30, 2017, replacement category No planned RA replacement. The whole MicroLogix 1500 line was retired in 2017.

Modules are consumable-grade hardware: limited write cycles, easily bent pins, and no way to test them without a working processor.

Related parts

1764-RTC is the clock-only module; 1764-MM1/MM2/MM3 are the memory-only versions of the same part.

1764-LSP and 1764-LRP processors, 1764-24AWA and 1764-28BXB1 base units.

FAQ — 1764-MM1RTC

How much memory does 1764-MM1RTC hold?

8K of user memory.

Does 1764-MM1RTC include a real-time clock?

Yes.

Is 1764-MM1RTC still available from Rockwell?

No. Discontinued June 30, 2017; No planned RA replacement.

Can 1764-MM1RTC store more than one program?

No — one user program at a time.

Does 1764-MM1RTC fit the 1764-LSP?

Yes, in the processor option slot.


Data sources. Memory size, RTC option and the MM2/MM3 recipe-data difference come from the 1764-UM001 memory module table; discontinued dates and UPCs come from the individual Rockwell product pages. Any attribute a publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
