1746-A13 is the 13-slot chassis of the Allen-Bradley SLC 500 modular system: 1746 SLC System, 13-Slot Chassis-Modular Hardware Style.
The chassis is the part that fixes the machine's I/O count. Every card, the processor and the power supply are sized against the slots and the backplane rails this rack provides.
| 1746-A2 | 2-Slot Expansion Chassis | IN STOCK |
| 1746-A4 | SLC 4 Slots Chassis | IN STOCK |
| 1746-A7 | SLC 7 Slots Chassis | IN STOCK |

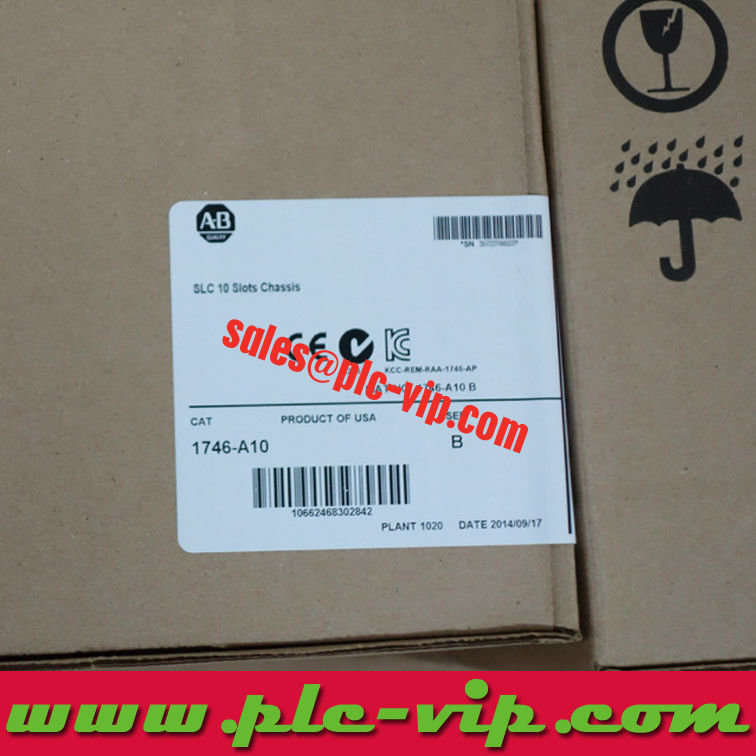

| 1746-A10 | SLC 10 Slots Chassis | IN STOCK |
| 1746-A13 | SLC 13 Slots Chassis | IN STOCK |
Application |
1746 SLC System, 13-Slot Chassis-Modular Hardware Style |
Cat Num |
1746-A13 |
Brand Name |
Rockwell |
Product Type |
SLC 500 13-slot chassis |
Number of slots |
13 |
Chassis |
13-slot chassis, modular hardware style |
Cooling |
Convection |
Temperature rating |
0...60 °C (32...140 °F) |
Minimum enclosure size, H x W x D |
17.1 x 50.2 x 14.5 cm |
Lifecycle |
Discontinued |
Discontinued date |
March 31, 2024 |
Replacement category |
No planned RA replacement |
Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1746-IN016 (module specifications) and 1746-IN016 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.
Rockwell description: 1746 SLC System, 13-Slot Chassis-Modular Hardware Style.

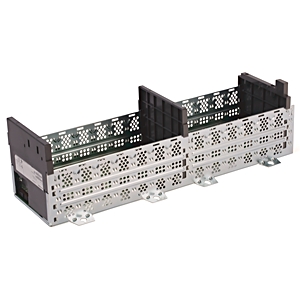

It is a 13-slot chassis in the modular hardware style, with a card guide per slot, one backplane connector per slot and a mounting foot at each end.
Application: 1746 SLC System, 13-Slot Chassis-Modular Hardware Style.
Cat Num: 1746-A13.
Brand Name: Rockwell.
Product Type: SLC 500 13-slot chassis.
Number of slots: 13.
Chassis: 13-slot chassis, modular hardware style.
Cooling: Convection.
Temperature rating: 0...60 °C (32...140 °F).
Minimum enclosure size, H x W x D: 17.1 x 50.2 x 14.5 cm.
Lifecycle: Discontinued.
Discontinued date: March 31, 2024.
Replacement category: No planned RA replacement.
Slot 0 is reserved for the processor or for a communication adapter; the remaining 12 slots take I/O and specialty modules. The power supply mounts at the left end of the rack and is not a slot.
Rockwell documents the modular SLC 500 system as connecting up to three chassis with 30 I/O modules to a single controller or communication adapter, so a 13-slot rack is one segment of that budget, not the whole limit.
Cards are addressed by slot, so the slot number printed beside each card is what the ladder program uses; moving a card to another slot changes its addresses.
The rack runs at 0...60 °C ambient and cools by convection, so the enclosure has to let air move past the cards. The minimum enclosure figures Rockwell prints are the space the rack and its terminal blocks need, not a clearance allowance for wiring.
Rockwell lists a minimum enclosure of 17.1 x 50.2 x 14.5 cm (H x W x D) for this chassis.
Field wiring lands on the removable terminal blocks at the front of each card, so the panel needs working room in front of the rack as well as above and below it.
Rockwell lists 1746-A13 as discontinued, date March 31, 2024, replacement category No planned RA replacement.
No replacement catalog number is planned, so a failed chassis is replaced from the secondary market or the machine is migrated to a CompactLogix platform.
Rockwell's migration guidance for Bulletin 1746 routes I/O to Compact 5000 modules on a Logix controller; a chassis is the part that cannot be carried across, because the new I/O does not use this backplane.
What is 1746-A13?
1746 SLC System, 13-Slot Chassis-Modular Hardware Style. 13-slot chassis, modular hardware style.
How many slots does 1746-A13 have?
13 slots, of which slot 0 is reserved for the processor or an adapter.
What is the ambient temperature rating of 1746-A13?
0...60 °C (32...140 °F), convection cooled.
Is 1746-A13 still available?
Rockwell lists it as discontinued, date March 31, 2024, replacement category No planned RA replacement.
How many chassis can one SLC 500 controller drive?
Up to three chassis with 30 I/O modules in total, per Rockwell's SLC I/O system description.
