Allen Bradley PLC 1746-A10 / 1746A10

China Allen Bradley PLC 1746-A10 / 1746A10 supplier
Allen Bradley PLC 1746-A10 / 1746A10 supplier Allen Bradley PLC 1746-A10 / 1746A10 supplier Allen Bradley PLC 1746-A10 / 1746A10 supplier Allen Bradley PLC 1746-A10 / 1746A10 supplier Allen Bradley PLC 1746-A10 / 1746A10 supplier

Large Image :  Allen Bradley PLC 1746-A10 / 1746A10

Product Details:

Place of Origin: Made in USA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1746-A10 / 1746A10

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $398.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 5 PCS
Detailed Product Description

1746-A10 technical data PDF download 1746-A10 SLC 10 Slots Chassis

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: SLC 500 chassis

1746-A10 is the 10-slot chassis of the Allen-Bradley SLC 500 modular system: 1746 SLC System, 10 Slot Chassis-Modular Hardware Style.

The chassis is the part that fixes the machine's I/O count. Every card, the processor and the power supply are sized against the slots and the backplane rails this rack provides.

1746-A2 2-Slot Expansion Chassis IN STOCK
1746-A4 SLC 4 Slots Chassis IN STOCK
1746-A7 SLC 7 Slots Chassis IN STOCK
1746-A10 SLC 10 Slots Chassis IN STOCK
1746-A13 SLC 13 Slots Chassis IN STOCK

Product Specifications 1746-A10 (PDF)
 Application
 1746 SLC System, 10 Slot Chassis-Modular Hardware Style
 Cat Num
 1746-A10
 Brand Name
 Rockwell
 Product Type
 SLC 500 10-slot chassis
 Number of slots
 10
 Chassis
 10-slot chassis, modular hardware style
 Cooling
 Convection
 Temperature rating
 0...60 °C (32...140 °F)
 Minimum enclosure size, H x W x D
 17.1 x 39.7 x 14.5 cm
 Lifecycle
 Discontinued
 Discontinued date
 March 31, 2024
 Replacement category
 No planned RA replacement

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1746-IN016 (module specifications) and 1746-IN016 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

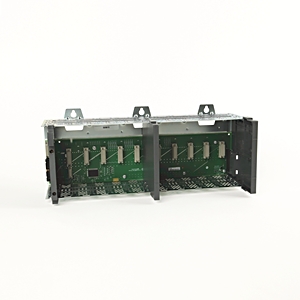

1746-A10 original product photograph 1 1746-A10 original product photograph 2 1746-A10 original product photograph 3 1746-A10 original product photograph 4

What 1746-A10 is

Rockwell description: 1746 SLC System, 10 Slot Chassis-Modular Hardware Style.

It is a 10-slot chassis in the modular hardware style, with a card guide per slot, one backplane connector per slot and a mounting foot at each end.

Technical data

Application: 1746 SLC System, 10 Slot Chassis-Modular Hardware Style.

Cat Num: 1746-A10.

Brand Name: Rockwell.

Product Type: SLC 500 10-slot chassis.

Number of slots: 10.

Chassis: 10-slot chassis, modular hardware style.

Cooling: Convection.

Temperature rating: 0...60 °C (32...140 °F).

Minimum enclosure size, H x W x D: 17.1 x 39.7 x 14.5 cm.

Lifecycle: Discontinued.

Discontinued date: March 31, 2024.

Replacement category: No planned RA replacement.

Slot layout and system limits

Slot 0 is reserved for the processor or for a communication adapter; the remaining 9 slots take I/O and specialty modules. The power supply mounts at the left end of the rack and is not a slot.

Rockwell documents the modular SLC 500 system as connecting up to three chassis with 30 I/O modules to a single controller or communication adapter, so a 10-slot rack is one segment of that budget, not the whole limit.

Cards are addressed by slot, so the slot number printed beside each card is what the ladder program uses; moving a card to another slot changes its addresses.

Mounting, enclosure and thermal limits

The rack runs at 0...60 °C ambient and cools by convection, so the enclosure has to let air move past the cards. The minimum enclosure figures Rockwell prints are the space the rack and its terminal blocks need, not a clearance allowance for wiring.

Rockwell lists a minimum enclosure of 17.1 x 39.7 x 14.5 cm (H x W x D) for this chassis.

Field wiring lands on the removable terminal blocks at the front of each card, so the panel needs working room in front of the rack as well as above and below it.

Lifecycle and spares position

Rockwell lists 1746-A10 as discontinued, date March 31, 2024, replacement category No planned RA replacement.

No replacement catalog number is planned, so a failed chassis is replaced from the secondary market or the machine is migrated to a CompactLogix platform.

Rockwell's migration guidance for Bulletin 1746 routes I/O to Compact 5000 modules on a Logix controller; a chassis is the part that cannot be carried across, because the new I/O does not use this backplane.

FAQ — 1746-A10

What is 1746-A10?

1746 SLC System, 10 Slot Chassis-Modular Hardware Style. 10-slot chassis, modular hardware style.

How many slots does 1746-A10 have?

10 slots, of which slot 0 is reserved for the processor or an adapter.

What is the ambient temperature rating of 1746-A10?

0...60 °C (32...140 °F), convection cooled.

Is 1746-A10 still available?

Rockwell lists it as discontinued, date March 31, 2024, replacement category No planned RA replacement.

How many chassis can one SLC 500 controller drive?

Up to three chassis with 30 I/O modules in total, per Rockwell's SLC I/O system description.


Data sources. Technical values on this page come from Rockwell publication 1746-IN016 and the Rockwell product page for this catalog number. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
