Allen Bradley PLC 1746-P3 / 1746P3

China Allen Bradley PLC 1746-P3 / 1746P3 supplier
Allen Bradley PLC 1746-P3 / 1746P3 supplier Allen Bradley PLC 1746-P3 / 1746P3 supplier Allen Bradley PLC 1746-P3 / 1746P3 supplier Allen Bradley PLC 1746-P3 / 1746P3 supplier Allen Bradley PLC 1746-P3 / 1746P3 supplier Allen Bradley PLC 1746-P3 / 1746P3 supplier Allen Bradley PLC 1746-P3 / 1746P3 supplier Allen Bradley PLC 1746-P3 / 1746P3 supplier

Large Image :  Allen Bradley PLC 1746-P3 / 1746P3

Product Details:

Place of Origin: Made in MALAYSIA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley Power Supplies 1746-P3 / 1746P3

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $279.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 5 PCS
Detailed Product Description

1746-P3 technical data PDF download 1746-P3 SLC Rack Mounting Power Supply

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: SLC 500 power supply

1746-P3 is the rack mounting power supply for the SLC 500 modular system: 1746 SLC System, Power Supply - Rack Mount, 24 VDC, 3.6A.

It converts the panel supply into the two backplane rails the cards draw from, 5V dc and 24V dc, and on most versions into a small isolated 24V dc source for sensors.

1746-P1 SLC Rack Mounting Power Supply IN STOCK
1746-P2 SLC Rack Mounting Power Supply IN STOCK
1746-P3 SLC Rack Mounting Power Supply IN STOCK
1746-P4 SLC Rack Mounting Power Supply IN STOCK
1746-P5 SLC Rack Mounting Power Supply IN STOCK
1746-P6 SLC Rack Mounting Power Supply IN STOCK
1746-P7 SLC Rack Mounting Power Supply IN STOCK

Product Specifications 1746-P3 (PDF)
 Application
 1746 SLC System, Power Supply - Rack Mount, 24 VDC, 3.6A
 Cat Num
 1746-P3
 Brand Name
 Rockwell
 Product Type
 SLC 500 rack mounting power supply
 Line voltage
 19.2...28.8V dc
 Typical line power requirement
 90 VA typical
 Inrush current, max
 Not published
 Internal capacity, 5V dc
 3.6 A at 5V dc
 Internal capacity, 24V dc
 0.87 A at 24V dc
 24V dc user-power output
 None, no external 24V dc source
 Isolation
 600V ac RMS for 1 s (version B or later)
 Fuse protection
 1746-F3 or equivalent, replaceable
 Dimensions, W x D x H
 not published separately from the P1/P2 rack depth
 Temperature, ambient operating
 0...60 °C (32...140 °F)
 Lifecycle
 Discontinued
 Discontinued date
 September 30, 2024
 Replacement category
 No planned RA replacement

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1746-IN004 (module specifications) and 1746-IN004 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

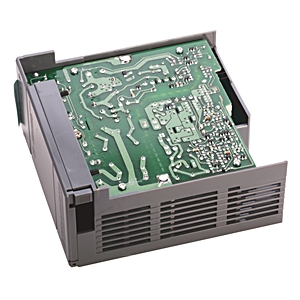

1746-P3 original product photograph 1 1746-P3 original product photograph 2 1746-P3 original product photograph 3 1746-P3 original product photograph 4

What 1746-P3 is

Rockwell description: 1746 SLC System, Power Supply - Rack Mount, 24 VDC, 3.6A.

The supply bolts to the left end of the chassis and feeds the backplane; it is not a slot card and it does not consume a slot address.

Electrical ratings

Application: 1746 SLC System, Power Supply - Rack Mount, 24 VDC, 3.6A.

Cat Num: 1746-P3.

Brand Name: Rockwell.

Product Type: SLC 500 rack mounting power supply.

Line voltage: 19.2...28.8V dc.

Typical line power requirement: 90 VA typical.

Inrush current, max: Not published.

Internal capacity, 5V dc: 3.6 A at 5V dc.

Internal capacity, 24V dc: 0.87 A at 24V dc.

24V dc user-power output: None, no external 24V dc source.

Isolation: 600V ac RMS for 1 s (version B or later).

Fuse protection: 1746-F3 or equivalent, replaceable.

Dimensions, W x D x H: not published separately from the P1/P2 rack depth.

Temperature, ambient operating: 0...60 °C (32...140 °F).

Lifecycle: Discontinued.

Discontinued date: September 30, 2024.

Replacement category: No planned RA replacement.

Sizing the backplane budget

The 5V dc and 24V dc figures above are the supply's internal capacity. Every card in the rack draws from them, and the sum has to stay inside both rails at the same time, not just inside the larger one.

The 24V dc user output is a separate, isolated source for field devices. On the 1746-P4 the total of backplane and user power cannot exceed 70 W, so a fully loaded 10 A rack leaves little for sensors.

Capacity is derated 5 percent above 55 °C on the P1, P2, P4, P5 and P6, which matters in a sealed panel where the internal temperature runs above the ambient figure.

Wiring, jumper and hold-up

The P1, P2 and P4 have an input voltage jumper that has to be set before power is applied; the P3, P5, P6 and P7 have no jumper. Setting the jumper with the supply energised exposes line voltage on the pins.

The ground screw goes to the nearest ground bus with 1.68 mm² (#14 AWG) 75 °C copper, and the incoming terminals take the same wire, tightened to 0.8 N·m (7 lb-in).

Hold-up time is what the controller keeps scanning after the line drops. The P5 holds the CPU for 20 ms at full load, the P6 for 5 ms, and the P7 for 40 ms at 24V dc input and full load; the P7 also latches off if the input sits between 4V and 9V until it is raised to 11V dc.

Lifecycle and spares position

Rockwell lists 1746-P3 as discontinued, date September 30, 2024, replacement category No planned RA replacement.

Rockwell prints no replacement catalog number on the product page, so a failed supply is replaced from stock or the rack is migrated.

A power supply is the part that decides how much I/O a rack can hold, so a spare is normally kept at the same current rating rather than at the same physical size.

FAQ — 1746-P3

What is 1746-P3?

1746 SLC System, Power Supply - Rack Mount, 24 VDC, 3.6A. Rack mounting power supply for the SLC 500 modular system.

What input voltage does 1746-P3 accept?

19.2...28.8V dc.

How much current does 1746-P3 give the backplane?

3.6 A at 5V dc at 5V dc and 0.87 A at 24V dc at 24V dc.

Can 1746-P3 power field sensors?

None, no external 24V dc source.

Is 1746-P3 still available?

Rockwell lists it as discontinued, date September 30, 2024, replacement category No planned RA replacement.


Data sources. Technical values on this page come from Rockwell publication 1746-IN004 and the Rockwell product page for this catalog number. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
