Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8

China Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8 supplier
Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8 supplier Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8 supplier Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8 supplier Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8 supplier Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8 supplier Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8 supplier Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8 supplier Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8 supplier

Large Image :  Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8

Product Details:

Place of Origin: Made in USA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PanelView 2711P-T12C4A8 / 2711PT12C4A8

Payment & Shipping Terms:

Minimum Order Quantity: 1/PCS
Price: $2895.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

2711P-T12C4A8 technical data PDF download 2711P-T12C4A8 PanelView Plus 6 1250 Touch 12.1 in AC

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PanelView Plus 6 Terminal

The 2711P-T12C4A8 is a PanelView Plus 6 1250-model terminal: 12.1 in at 800 x 600 (SVGA) on a color TFT, with touch screen input and 100...240V AC.

All 700...1500 terminals carry Ethernet, RS-232 and two USB host ports, a rear communication module slot for DH+/DH-485 or ControlNet, and 512 MB RAM with 512 MB nonvolatile memory.

2711P-K10C4A8 Keypad, color, Ethernet + RS-232 + 2 USB, AC input IN STOCK
2711P-T10C4A8 Touch, color, Ethernet + RS-232 + 2 USB, AC input IN STOCK
2711P-B10C4A8 Keypad and touch, color, Ethernet + RS-232 + 2 USB, AC IN STOCK
2711P-K10C4D8 Keypad, color, Ethernet + RS-232 + 2 USB, DC input IN STOCK
2711P-T10C4D8 Touch, color, Ethernet + RS-232 + 2 USB, DC input IN STOCK
2711P-B10C4D8 Keypad and touch, color, Ethernet + RS-232 + 2 USB, DC IN STOCK
2711P-K10C4A9 Keypad, color, Ethernet + RS-232 + 2 USB, AC, extended CE IN STOCK
2711P-T10C4A9 Touch, color, Ethernet + RS-232 + 2 USB, AC, extended CE IN STOCK
2711P-B10C4A9 Keypad and touch, color, AC, extended CE features IN STOCK
2711P-K10C4D9 Keypad, color, Ethernet + RS-232 + 2 USB, DC, extended CE IN STOCK
2711P-T10C4D9 Touch, color, Ethernet + RS-232 + 2 USB, DC, extended CE IN STOCK
2711P-B10C4D9 Keypad and touch, color, DC, extended CE features IN STOCK

Product Specifications 2711P-T12C4A8 (PDF)
 Application
 PanelView Plus 6 operator terminal, 1250 model, 12.1 in
 Cat Num
 2711P-T12C4A8
 Brand Name
 Rockwell
 Display Size
 12.1 in
 Display Type
 Color active-matrix TFT
 Resolution
 800 x 600 (SVGA)
 Colour Depth
 18-bit color graphics
 Active Area
 246 x 184 mm
 Brightness
 300 cd/m2
 Operator Input
 Touch screen
 Touch Screen
 8-wire analog resistive
 Communication Ports
 Ethernet 10/100, RS-232, 2 USB host, plus one communication module slot
 Input Power
 100...240V AC, 50...60 Hz
 Power Consumption
 160 VA max, 65 VA typical
 Memory
 512 MB RAM, 512 MB nonvolatile (approx. 79 MB free user memory)
 Operating System
 Windows CE 6.0
 Removable Storage
 Hot-swappable SD slot, 1784-SDx / 1784-SDHCx
 Panel Cutout
 257 x 338 mm (10.11 x 13.29 in)
 Dimensions
 282 x 363 x 55 mm
 Weight
 3.2 kg approx.
 Backlight
 CCFL, 50,000 h min at 25 deg C, field replaceable
 Clock Battery
 2711P-RY2032 (CR2032), 4 years min at 25 deg C
 Degree Of Protection
 NEMA Type 12, 13, 4X indoor and IP54, IP65 (front)

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711P-UM006 (module specifications) and 2711P-TD001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

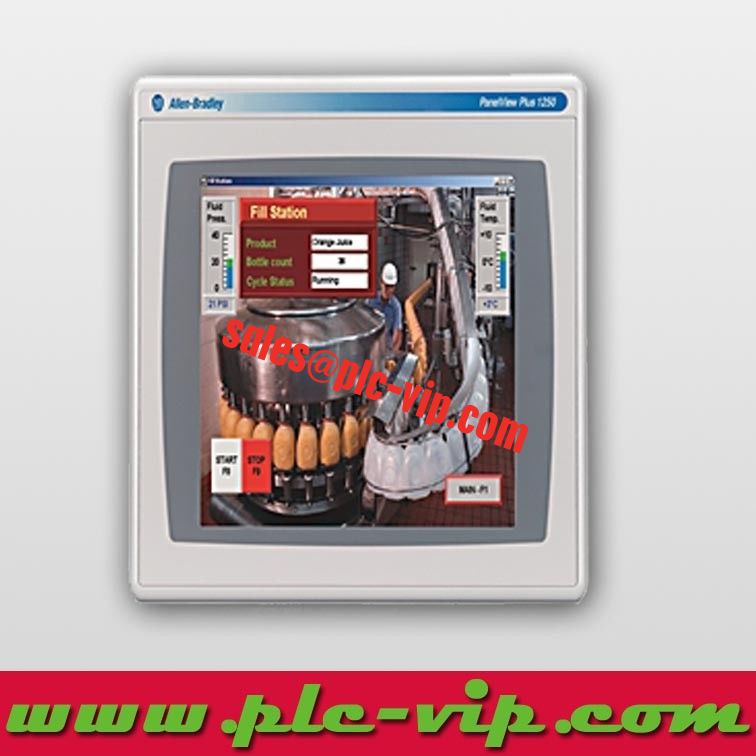

2711P-T12C4A8 PanelView Plus 6 12.1 in terminal, original listing photograph 1 2711P-T12C4A8 PanelView Plus 6 12.1 in terminal, original listing photograph 2

What the 2711P-T12C4A8 is

The 1250 model is the 12.1 in size of the PanelView Plus 6 range: 800 x 600 (SVGA), 18-bit color, active area 246 x 184 mm, 300 cd/m2. Operator input is an 8-wire analog resistive touch screen spanning the 12.1 in display.

The front measures 282 x 363 and sits 55 mm behind the panel; the cutout is 257 x 338 mm (10.11 x 13.29 in).

The larger the front, the more the enclosure carries: 3.2 kg approx. of terminal hangs on the mounting levers together with the door, so check hinge rating and panel thickness before installing.

Specifications that drive the design

Display: 12.1 in, 800 x 600 (SVGA), 18-bit color, active area 246 x 184 mm, 300 cd/m2. The backlight is a cold-cathode fluorescent lamp rated 50,000 hours minimum at 25 deg C and is field replaceable on 700...1500 terminals, unlike the LED backlight of the 400 and 600 models.

Input power: 100...240V AC, 50...60 Hz, 160 VA max (65 VA typical). A 1500-model AC terminal is rated 160 VA maximum and 65 VA typical; the DC terminals draw 70 W maximum (2.9 A at 24V DC) and 39 W typical, so size the supply on the maximum figures and the heat budget on the typical ones.

CCFL thermal control: when the internal temperature falls below 10 deg C the backlight runs at full rated current for at least five minutes to warm the display, and above 60 deg C it is underdriven to 40% or less of full brightness. This changes intensity only, so a dim screen in a cold or hot cabinet is normal behaviour, not a failure.

Front protection is NEMA Type 12, 13 and 4X indoor plus IP54 and IP65; relative humidity 5...95% noncondensing, 15 G shock at 11 ms, operating altitude up to 2000 m.

Cutout, clearance and mounting

Cut 257 x 338 mm (10.11 x 13.29 in) using the template supplied with the terminal. Depth to the rear of the logic module is 55 mm and the communication module adds more, so keep at least 100 mm clear where a module is fitted.

A touch front and a keypad front need different openings in this size as well: 257 x 338 mm (10.11 x 13.29 in) against 257 x 390 mm (10.11 x 15.35 in). Decide the catalog number before the enclosure is cut.

Torque the mounting levers evenly and re-check the corners; on a 12.1 in front one slack lever shows up as an IP65 leak at the gasket.

Power, grounding and wiring

DC: 18...32V DC, 70 W maximum, 2.9 A at 24V DC, 39 W typical. AC: 100...240V AC, 50...60 Hz, 160 VA maximum, 65 VA typical.

Power terminal blocks accept 0.3...2.1 mm2 (22...14 AWG) 90 deg C copper at 0.45...0.56 N m (4...5 lb in), two wires per terminal up to 1.3 mm2 (16 AWG).

Functional earth is mandatory: the DC negative is internally tied to the FE terminal and the AC input relies on protective earth. Land the earth conductor first and torque it before the terminal cover goes back on.

The real-time clock is backed by a 2711P-RY2032 coin cell, 4 years minimum at 25 deg C, and drifts about plus or minus 2 minutes per month.

Communication and software

Standard: Ethernet 10/100 with auto MDI/MDI-X, RS-232, two USB 2.0 host ports, and a rear slot for a DH+/DH-485 or ControlNet communication module, scheduled or unscheduled.

Ethernet serves EtherNet/IP tag access, FactoryTalk ViewPoint clients and project download; RS-232 covers DF1, ASCII, bar-code readers and printers; a USB flash drive moves applications and data logs without touching the network.

FactoryTalk View Machine Edition 6.10 or later is required. The hot-swappable SD slot takes 1784-SDx and 1784-SDHCx cards for file transfer, firmware upgrade and data logging.

USB circuit parameters for nonincendive field wiring: 5.25V DC, 1.68 A short-circuit current, 10 microfarad, 15 microhenry.

Choosing the 1250-model catalog number

Three choices separate the rows in this size: operator input (keypad, touch, or keypad and touch), input power (AC or DC), and the operating system suffix (8 = Windows CE 6.0, 9 = Windows CE 6.0 with extended features). Display, memory and communication are identical across the size.

Touch-only keeps the smaller opening (257 x 338 mm (10.11 x 13.29 in)) and the lighter 3.2 kg approx. front; any keypad front moves to 257 x 390 mm (10.11 x 15.35 in) and 3.4 kg approx.. If the application is already written for touch, adding a keypad buys nothing except panel area and mass.

AC input suits a cabinet that already has 100...240V; DC input at 70 W maximum is the lighter load where a 24V supply with the current headroom exists. Suffix 9 adds the extended Windows CE features needed by some older FactoryTalk View ME projects.

FAQ — 2711P-T12C4A8

Does 2711P-T12C4A8 have a touch screen?

Yes, an 8-wire analog resistive touch screen is the only operator input.

What cutout does 2711P-T12C4A8 need?

257 x 338 mm (10.11 x 13.29 in). The front measures 282 x 363 with a 55 mm depth.

What resolution does 2711P-T12C4A8 display?

800 x 600 (SVGA) with 18-bit color on a 246 x 184 mm active area.

How much power does 2711P-T12C4A8 draw?

100...240V AC, 50...60 Hz, 160 VA maximum and 65 VA typical.

Is the backlight of 2711P-T12C4A8 replaceable?

Yes. 700...1500 terminals use a field-replaceable CCFL backlight rated 50,000 hours minimum at 25 deg C; the 400 and 600 models use a non-replaceable LED backlight.

How heavy is 2711P-T12C4A8?

3.2 kg approx. for this front; the touch version of the same size is 3.2 kg approx..

Which communication options does 2711P-T12C4A8 support?

Ethernet 10/100, RS-232 and two USB host ports are standard; the rear slot accepts a DH+/DH-485 or ControlNet communication module.

What memory does 2711P-T12C4A8 have?

512 MB RAM and 512 MB nonvolatile memory, about 79 MB free for the application, on Windows CE 6.0.

What replaces the clock battery in 2711P-T12C4A8?

2711P-RY2032, an equivalent CR2032 coin cell, 4 years minimum at 25 deg C.


Data sources. Technical values on this page come from 2711P-UM006 and 2711P-TD001, together with the Rockwell product page for this catalog number. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
