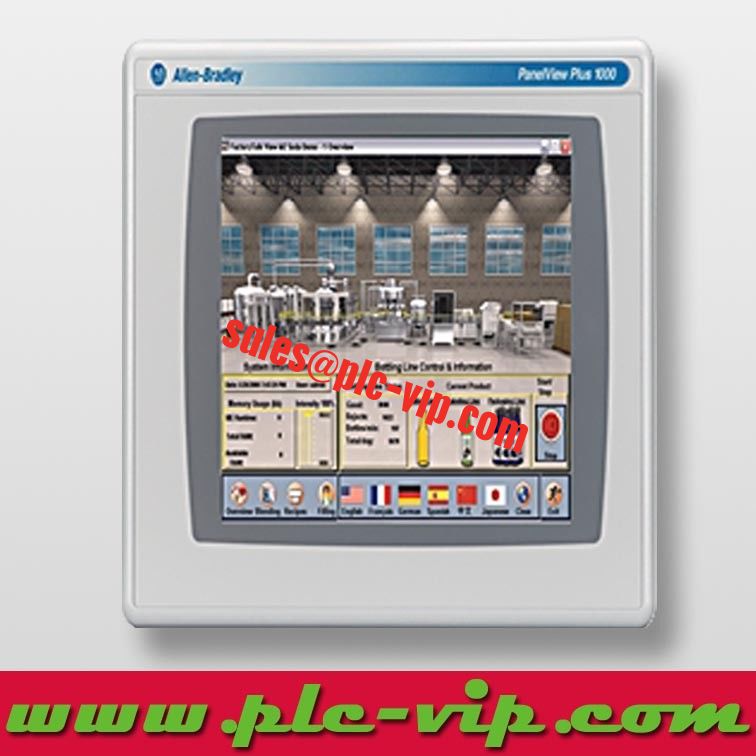

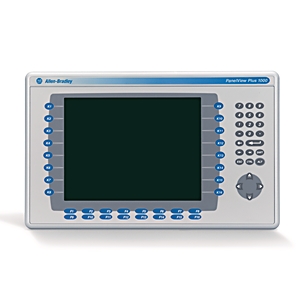

The 2711P-B10C4A8 is a PanelView Plus 6 1000-model terminal: a 10.4 in 640 x 480 color TFT with keypad and touch screen, Ethernet, RS-232 and two USB host ports input and 100...240V AC.
Unlike the 400 and 600 models, every 700...1500 terminal has Ethernet, RS-232 and two USB host ports as standard and accepts a communication module in the rear slot (DH+/DH-485 or ControlNet). Memory is 512 MB RAM and 512 MB nonvolatile, about 79 MB free for the application.
| 2711P-K10C4A8 | Keypad, color, Ethernet + RS-232 + 2 USB, AC input | IN STOCK |
| 2711P-T10C4A8 | Touch, color, Ethernet + RS-232 + 2 USB, AC input | IN STOCK |
| 2711P-B10C4A8 | Keypad and touch, color, Ethernet + RS-232 + 2 USB, AC | IN STOCK |
| 2711P-K10C4D8 | Keypad, color, Ethernet + RS-232 + 2 USB, DC input | IN STOCK |
| 2711P-T10C4D8 | Touch, color, Ethernet + RS-232 + 2 USB, DC input | IN STOCK |
| 2711P-B10C4D8 | Keypad and touch, color, Ethernet + RS-232 + 2 USB, DC | IN STOCK |
| 2711P-K10C4A9 | Keypad, color, Ethernet + RS-232 + 2 USB, AC, extended CE | IN STOCK |
| 2711P-T10C4A9 | Touch, color, Ethernet + RS-232 + 2 USB, AC, extended CE | IN STOCK |
| 2711P-B10C4A9 | Keypad and touch, color, AC, extended CE features | IN STOCK |
| 2711P-K10C4D9 | Keypad, color, Ethernet + RS-232 + 2 USB, DC, extended CE | IN STOCK |
| 2711P-T10C4D9 | Touch, color, Ethernet + RS-232 + 2 USB, DC, extended CE | IN STOCK |
| 2711P-B10C4D9 | Keypad and touch, color, DC, extended CE features | IN STOCK |
Application |
PanelView Plus 6 operator terminal, 1000 model, 10.4 in |
Cat Num |
2711P-B10C4A8 |
Brand Name |
Rockwell |
Display Size |
10.4 in |
Display Type |
Color active-matrix TFT |
Resolution |
640 x 480 (VGA) |
Colour Depth |
18-bit color graphics |
Active Area |
211 x 158 mm |
Brightness |
300 cd/m2 |
Operator Input |
Keypad and touch screen |
Touch Screen |
8-wire analog resistive |
Communication Ports |
Ethernet 10/100, RS-232, 2 USB host, plus one communication module slot |
Input Power |
100...240V AC, 50...60 Hz |
Power Consumption |
160 VA max |
Memory |
512 MB RAM, 512 MB nonvolatile (approx. 79 MB free user memory) |
Operating System |
Windows CE 6.0 |
Removable Storage |
Hot-swappable SD slot, 1784-SDx / 1784-SDHCx |
Panel Cutout |
224 x 375 mm (8.8 x 14.75 in) |
Dimensions |
248 x 399 x 55 mm |
Weight |
2.8 kg approx. |
Backlight |
CCFL, 50,000 h min at 25 deg C, field replaceable |
Clock Battery |
2711P-RY2032 (CR2032), 4 years min at 25 deg C |
Degree of Protection |
NEMA Type 12, 13, 4X indoor and IP54, IP65 |
Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711P-UM006 (module specifications) and 2711P-TD001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.
The 1000 model is the 10.4 in size of the PanelView Plus 6 range and shares its 640 x 480 pixel map with the 700 model, so a 700 application transfers without redesign. The front carries a membrane keypad and a 8-wire resistive touch screen, so template-based recipes and direct touch both work on one catalog number.
The front measures 248 x 399 and the cutout is 224 x 375 mm (8.8 x 14.75 in); depth behind the panel is 55 mm, the same figure for every input style in this size.
Only keypad and keypad/touch fronts need the wider 224 x 375 mm opening; the touch front uses 224 x 305 mm. Cutting the touch opening in a panel intended for a keypad model leaves the keypad front unable to seat, so fix the catalog number before the enclosure is fabricated.
Display: 10.4 in, 640 x 480, 18-bit color, active area 211 x 158 mm, 300 cd/m2. The backlight is a cold-cathode fluorescent lamp rated 50,000 hours minimum at 25 deg C and is field replaceable on 700...1500 terminals - unlike the LED backlight of the 400 and 600 models.
Input power: 100...240V AC (50...60 Hz), 160 VA max. The AC terminals draw 160 VA maximum at 100...240V AC, four times the 60 VA of a 600-model AC terminal; check the panel feed and any shared circuit.
Mass: 2.8 kg approx. for this front. A 10.4 in terminal plus the enclosure door load has to be carried by the mounting levers, so confirm the panel thickness is within the lever range before hanging the unit.
Environment: front rated NEMA Type 12, 13 and 4X indoor and IP54/IP65, relative humidity 5...95% noncondensing, 15 G shock at 11 ms, operating altitude up to 2000 m.
CCFL thermal behaviour: below 10 deg C internal temperature the backlight is overdriven at full rated current for at least five minutes to warm the display, and above 60 deg C it is underdriven to 40% or less of full brightness. Temperature control affects intensity only, so a cold cabinet start is not a fault.
Cut the opening 224 x 375 mm (8.8 x 14.75 in) from the template shipped with the terminal. Depth to the rear of the logic module is 55 mm, and the communication module in the rear slot adds further depth, so leave at least 100 mm clear behind the panel where a module is fitted.
Keep the lower rear face clear for the power terminal block and the earth conductor. The DC terminal is not isolated from the functional earth in this range either, so the supply must be SELV or Class 2 and the FE terminal must be wired.
Tighten the mounting levers evenly until the gasket compresses, then re-check the four corners; a 10.4 in front is heavy enough that one uneven lever shows as an IP65 leak at the corner.
DC: 18...32V DC, 70 W maximum, 2.9 A at 24V DC. AC: 100...240V AC, 50...60 Hz, 160 VA maximum.
Power blocks accept 0.3...2.1 mm2 (22...14 AWG) 90 deg C copper at 0.45...0.56 N m (4...5 lb in); two wires per terminal are allowed up to 1.3 mm2 (16 AWG).
Functional earth is mandatory: the DC negative is internally tied to the FE terminal, and the AC input relies on protective earth for EMC. Route the earth conductor first and torque it before closing the terminal cover.
The real-time clock runs from a 2711P-RY2032 coin cell, 4 years minimum at 25 deg C, accurate to about plus or minus 2 minutes per month.
Standard on this catalog number: Ethernet 10/100 with auto MDI/MDI-X, RS-232, two USB 2.0 host ports for keyboard, mouse and USB flash drive. The rear slot accepts a communication module for DH+/DH-485 or ControlNet, scheduled or unscheduled.
Ethernet carries EtherNet/IP tag access, FactoryTalk ViewPoint clients and project download; the RS-232 port covers DF1, ASCII, bar-code readers and printers; a USB flash drive moves applications and data logs without a network.
FactoryTalk View Machine Edition version 6.10 or later is required. The hot-swappable SD slot takes 1784-SDx and 1784-SDHCx cards for file transfer, firmware upgrade and data logging.
USB circuit parameters for nonincendive field wiring are 5.25V DC, 1.68 A short-circuit current, 10 microfarad and 15 microhenry.
Four choices define the 10.4 in terminal: operator input (keypad, touch, or keypad and touch), input power (AC or DC), and the operating system suffix (8 = Windows CE 6.0, 9 = Windows CE 6.0 with extended features). Color, 640 x 480 resolution, 512 MB memory and the 55 mm depth are common to every row, so the choice is about the front and the supply only.
Touch-only keeps the 224 x 305 mm cutout and 2.5 kg mass; any keypad front moves to 224 x 375 mm and 2.8 kg. AC input suits an enclosure with a 100...240V feed already present, but 160 VA has to be allowed for in the circuit loading; DC input at 70 W is the lighter option where a 24V supply with adequate current is available.
Does 2711P-B10C4A8 have a touch screen?
Yes. This catalog number has a membrane keypad and a 8-wire resistive touch screen.
What cutout does 2711P-B10C4A8 need?
224 x 375 mm (8.8 x 14.75 in). The front measures 248 x 399 and the depth is 55 mm.
How much power does 2711P-B10C4A8 draw?
100...240V AC, 50...60 Hz, 160 VA maximum.
Is the backlight of 2711P-B10C4A8 replaceable?
Yes. The 700...1500 terminals use a field-replaceable CCFL backlight rated 50,000 hours minimum at 25 deg C; the 400 and 600 models use a non-replaceable LED backlight.
What memory and resolution does 2711P-B10C4A8 have?
512 MB RAM and 512 MB nonvolatile memory, about 79 MB free for the application, on a 640 x 480 18-bit color display.
Which communication modules fit 2711P-B10C4A8?
The rear slot takes the PanelView Plus 6 communication modules for DH+/DH-485 or ControlNet, scheduled or unscheduled, alongside the standard Ethernet and RS-232 ports.
Can 2711P-B10C4A8 run an application built for a 700 model?
Yes. Both sizes use a 640 x 480 display, so the same FactoryTalk View ME application transfers without redesign, provided the input style matches the project.
What replaces the clock battery in 2711P-B10C4A8?
2711P-RY2032, an equivalent CR2032 coin cell, 4 years minimum at 25 deg C.
