Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9

China Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9 supplier
Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9 supplier Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9 supplier Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9 supplier Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9 supplier Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9 supplier Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9 supplier Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9 supplier

Large Image :  Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9

Product Details:

Place of Origin: Made in USA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PanelView 2711P-T6C5A9 / 2711PT6C5A9

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $1065.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

2711P-T6C5A9 technical data PDF download 2711P-T6C5A9 PanelView Plus 6 600 Touch Color RS-232 + USB AC

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PanelView Plus 6 Terminal

The 2711P-T6C5A9 is a PanelView Plus 6 600-model terminal: 5.7 in color display, touch screen, RS-232 and USB and 100...240V AC. The suffix 9 adds the extended Windows CE 6.0 features; display, power and cutout data are identical to the suffix 8 terminal.

Catalog breakdown: 2711P- T = touch, 6 = 5.7 in display, C = color, 5A = RS-232 + USB, A = AC input, 9 = Windows CE 6.0 with extended features.

2711P-K6M5A8 Keypad, grayscale 16 levels, RS-232 + USB, AC IN STOCK
2711P-T6M5A8 Touch, grayscale 16 levels, RS-232 + USB, AC IN STOCK
2711P-B6M5A8 Keypad and touch, grayscale, RS-232 + USB, AC IN STOCK
2711P-K6M5D8 Keypad, grayscale 16 levels, RS-232 + USB, DC IN STOCK
2711P-T6M5D8 Touch, grayscale 16 levels, RS-232 + USB, DC IN STOCK
2711P-B6M5D8 Keypad and touch, grayscale, RS-232 + USB, DC IN STOCK
2711P-K6C5A8 Keypad, color 18-bit, RS-232 + USB, AC IN STOCK
2711P-T6C5A8 Touch, color 18-bit, RS-232 + USB, AC IN STOCK
2711P-B6C5A8 Keypad and touch, color, RS-232 + USB, AC IN STOCK
2711P-K6C5D8 Keypad, color 18-bit, RS-232 + USB, DC IN STOCK
2711P-T6C5D8 Touch, color 18-bit, RS-232 + USB, DC IN STOCK
2711P-B6C5D8 Keypad and touch, color, RS-232 + USB, DC IN STOCK

Product Specifications 2711P-T6C5A9 (PDF)
 Application
 PanelView Plus 6 operator terminal, 600 model, machine-level HMI
 Cat Num
 2711P-T6C5A9
 Brand Name
 Rockwell
 Display Size
 5.7 in
 Display Type
 Color active-matrix TFT
 Resolution
 320 x 240
 Colour Depth
 18-bit color graphics
 Operator Input
 Touch screen
 Touch Screen
 8-wire analog resistive
 Communication Ports
 RS-232 and USB
 USB Ports
 One USB 2.0 host port, one USB device port
 Input Power
 100...240V AC, 50...60 Hz
 Power Consumption
 60 VA max
 Memory
 256 MB RAM, 512 MB nonvolatile (approx. 73 MB free user memory)
 Operating System
 Windows CE 6.0 with extended features
 Removable Storage
 SD card slot, cat. no. 1784-SDx
 Panel Cutout
 123 x 156 mm (4.86 x 6.15 in)
 Dimensions
 152 x 185 mm front, 68 mm, 98 mm with the AC power module deep
 Weight
 594 g approx.
 Brightness
 440 cd/m2
 Backlight
 White LED, not replaceable, 25,000 h min at 25 deg C
 Clock Battery
 2711P-RY2032 (CR2032), 4 years min at 25 deg C
 Degree of Protection
 NEMA Type 12, 13, 4X indoor and IP54, IP65

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711P-UM006 (module specifications) and 2711P-TD001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

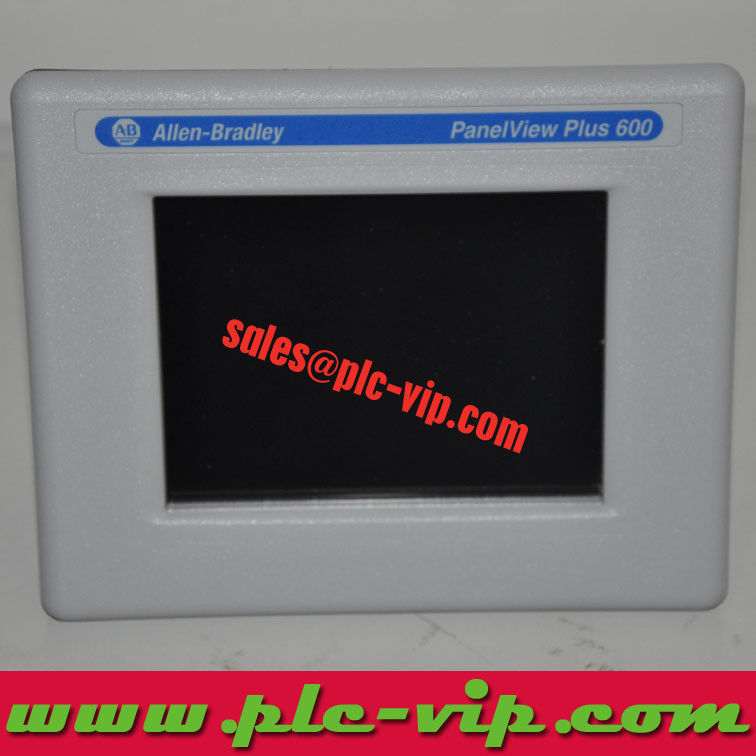

2711P-T6C5A9 PanelView Plus 6 600 terminal, original listing photograph 1 2711P-T6C5A9 PanelView Plus 6 600 terminal, original listing photograph 2

What the 2711P-T6C5A9 is

The 600 model is the smallest PanelView Plus 6 size offered with a touch screen, and it keeps the 320 x 240 pixel layout of the 3.5 in 400 model while raising the display to 5.7 in. Operator input is a 8-wire analog resistive touch screen over the display, the usual choice when operators select recipes or acknowledge alarms on screen.

The front measures 152 x 185 mm and the cutout is 123 x 156 mm (4.86 x 6.15 in); depth to the logic module is 68 mm, 98 mm with the AC power module, and the AC power module adds 30 mm.

Memory is 256 MB RAM and 512 MB nonvolatile, about 73 MB free for the application, with an SD slot for 1784-SDx cards. The 700...1500 terminals use a 512 MB/512 MB logic module, a different figure.

Specifications that decide the panel design

Display: 5.7 in, 320 x 240 pixels, 18-bit color TFT, brightness 440 cd/m2. The white LED backlight is rated 25,000 hours minimum at 25 deg C and is not field replaceable.

Input power: 100...240V AC (50...60 Hz), 60 VA max. The AC variant takes 100...240V AC at 50...60 Hz and needs protective earth on the power terminal block.

Mass: 594 g approx. for this input style; a touch-only front weighs 594 g, any keypad front 728 g. Leave room for the cable bend radius behind the 68 mm, 98 mm with the AC power module body.

Environment: NEMA Type 12, 13 and 4X indoor, IP54 and IP65 at the front, with the gasket compressed by the mounting levers.

Cutout, clearance and mounting

Cut the opening 123 x 156 mm (4.86 x 6.15 in) from the template supplied with the terminal. The touch front keeps the 123 x 156 mm opening of the 400 model, so a 400 can be upgraded to a 600 touch without cutting steel.

Depth to the logic module is 68 mm, 98 mm with the AC power module. Keep the lower rear face clear for the power block, the RS-232 connector and the USB ports, and route the earth conductor before clamping the levers.

Tighten the mounting levers evenly until the gasket compresses, then check the seal at all four corners before applying power.

Power, grounding and wiring

DC terminals work over 18...30V DC at 25 W maximum (1.0 A at 24V DC). PanelView Plus 6 400 and 600 terminals have a nonisolated DC supply with DC negative tied internally to the functional earth terminal, so a floating supply is not permitted.

AC terminals take 100...240V AC at 50...60 Hz and 60 VA maximum, with protective earth on the terminal block.

Power blocks accept 0.3...2.1 mm2 (22...14 AWG) 90 deg C copper at 0.45...0.56 N m (4...5 lb in); two wires per terminal are allowed up to 1.3 mm2 (16 AWG).

The real-time clock is held by a 2711P-RY2032 coin cell rated 4 years minimum at 25 deg C, accurate to about plus or minus 2 minutes per month.

Communication and software

This catalog number carries RS-232 and USB, one USB 2.0 host port for a keyboard, mouse or USB drive, and one USB device port for programming.

There is no Ethernet port on this catalog number: RS-232 handles DF1, ASCII or printer output and the USB host port carries a keyboard, mouse or USB drive. A 20 option terminal in the same 600 range adds 10/100 connectivity.

FactoryTalk View Machine Edition version 6.10 or later is required on 400 and 600 terminals; projects built in 5.x must be converted before download. Transfer runs over Ethernet, serial or a 1784-SDx card.

USB circuit parameters for nonincendive field wiring are 5.25V DC, 1.68 A short-circuit current, 10 microfarad and 15 microhenry; peripherals in a classified area must stay within them.

Reading the 600-model suffix

Only two attributes separate the 600 catalog numbers that share a front: the communication option (5 = RS-232 + USB, 20 = Ethernet + RS-232 + USB) and the operating system suffix (8 = Windows CE 6.0, 9 = Windows CE 6.0 with extended features). Display, memory, power and cutout are unchanged, so a suffix 9 terminal drops into a cabinet built for suffix 8.

Color is the only display choice carrying suffix 9 in this size; grayscale catalog numbers are listed with suffix 8 only. Choose color where the HMI uses state colours or trends, grayscale for text, alarm and numeric screens.

AC input is chosen where a 100...240V feed already exists in the enclosure; DC input suits a 24V panel with a Class 2 or SELV supply. Ethernet is required for controller tag access, ViewPoint and network download, while RS-232-only terminals are limited to serial links and USB peripherals.

FAQ — 2711P-T6C5A9

Does 2711P-T6C5A9 have a touch screen?

Yes, a 8-wire analog resistive touch screen is the only operator input on this catalog number.

What cutout does 2711P-T6C5A9 need?

123 x 156 mm (4.86 x 6.15 in). The front measures 152 x 185 mm and the body is 68 mm, 98 mm with the AC power module deep.

Does 2711P-T6C5A9 have Ethernet?

No. This is communication option 5 with RS-232 and USB only. Ethernet 600 terminals carry option 20, for example 2711P-T6C20A8.

What supply does 2711P-T6C5A9 need?

100...240V AC, 50...60 Hz, 60 VA maximum, with protective earth connected.

What does the suffix 9 add on 2711P-T6C5A9?

Windows CE 6.0 with extended features instead of plain Windows CE 6.0. Display, memory, power and cutout are identical to the suffix 8 terminal.

How heavy is 2711P-T6C5A9?

594 g approx.; the touch-only front is listed at 594 g and any keypad front at 728 g.

Is the backlight of 2711P-T6C5A9 replaceable?

No. It is a white LED rated 25,000 hours minimum at 25 deg C and is not a field-replaceable part.

What replaces the clock battery in 2711P-T6C5A9?

2711P-RY2032, an equivalent CR2032 coin cell, 4 years minimum at 25 deg C.


Data sources. Technical values on this page come from 2711P-UM006 and 2711P-TD001, together with the Rockwell product page for this catalog number. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
