Allen Bradley PanelView 2711P-K6C5D8 / 2711PK6C5D8

China Allen Bradley PanelView 2711P-K6C5D8 / 2711PK6C5D8 supplier
Allen Bradley PanelView 2711P-K6C5D8 / 2711PK6C5D8 supplier Allen Bradley PanelView 2711P-K6C5D8 / 2711PK6C5D8 supplier Allen Bradley PanelView 2711P-K6C5D8 / 2711PK6C5D8 supplier Allen Bradley PanelView 2711P-K6C5D8 / 2711PK6C5D8 supplier Allen Bradley PanelView 2711P-K6C5D8 / 2711PK6C5D8 supplier

Large Image :  Allen Bradley PanelView 2711P-K6C5D8 / 2711PK6C5D8

Product Details:

Place of Origin: Made in USA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PanelView 2711P-K6C5D8 / 2711PK6C5D8

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $1008.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

2711P-K6C5D8 technical data PDF download 2711P-K6C5D8 PanelView Plus 6 600 Model Terminal, Keypad, color 18-bit, RS-232 + USB, DC

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PanelView Plus 6 Terminal

The 2711P-K6C5D8 is a PanelView Plus 6 600-model terminal: a 5.7 in color display with keypad, RS-232 and USB, and 24V DC. The 600 model is the smallest size that offers a touch screen on its own, so a 5.7 in panel can be specified as touch only, keypad only, or both without changing the application.

The 167 x 266 mm front fits a 142 x 241 mm (5.61 x 9.50 in) cutout and stands 68 mm behind the panel. Catalog breakdown: 2711P- K = keypad, 6 = 5.7 in display, C = color, 5D = RS-232 + USB, D = DC input, 8 = Windows CE 6.0.

2711P-K6M5A8 Keypad, grayscale 16 levels, RS-232 + USB, AC IN STOCK
2711P-T6M5A8 Touch, grayscale 16 levels, RS-232 + USB, AC IN STOCK
2711P-B6M5A8 Keypad and touch, grayscale, RS-232 + USB, AC IN STOCK
2711P-K6M5D8 Keypad, grayscale 16 levels, RS-232 + USB, DC IN STOCK
2711P-T6M5D8 Touch, grayscale 16 levels, RS-232 + USB, DC IN STOCK
2711P-B6M5D8 Keypad and touch, grayscale, RS-232 + USB, DC IN STOCK
2711P-K6C5A8 Keypad, color 18-bit, RS-232 + USB, AC IN STOCK
2711P-T6C5A8 Touch, color 18-bit, RS-232 + USB, AC IN STOCK
2711P-B6C5A8 Keypad and touch, color, RS-232 + USB, AC IN STOCK
2711P-K6C5D8 Keypad, color 18-bit, RS-232 + USB, DC IN STOCK
2711P-T6C5D8 Touch, color 18-bit, RS-232 + USB, DC IN STOCK
2711P-B6C5D8 Keypad and touch, color, RS-232 + USB, DC IN STOCK

Product Specifications 2711P-K6C5D8 (PDF)
 Application
 PanelView Plus 6 operator terminal, 600 model, machine-level HMI
 Cat Num
 2711P-K6C5D8
 Brand Name
 Rockwell
 Display Size
 5.7 in
 Display Type
 Color active-matrix TFT
 Resolution
 320 x 240
 Colour Depth
 18-bit color graphics
 Operator Input
 Keypad
 Touch Screen
 Not fitted
 Communication Ports
 RS-232 and USB
 USB Ports
 One USB 2.0 host port, one USB device port
 Input Power
 24V DC nom, 18...30V DC range
 Power Consumption
 25 W max, 1.0 A at 24V DC
 Memory
 256 MB RAM, 512 MB nonvolatile (approx. 73 MB free user memory)
 Operating System
 Windows CE 6.0
 Removable Storage
 SD card slot, cat. no. 1784-SDx
 Panel Cutout
 142 x 241 mm (5.61 x 9.50 in)
 Dimensions
 167 x 266 mm front, 68 mm deep
 Weight
 728 g approx.
 Brightness
 440 cd/m2
 Backlight
 White LED, not replaceable, 25,000 h min at 25 deg C
 Clock Battery
 2711P-RY2032 (CR2032), 4 years min at 25 deg C
 Degree of Protection
 NEMA Type 12, 13, 4X indoor and IP54, IP65

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711P-UM006 (module specifications) and 2711P-TD001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

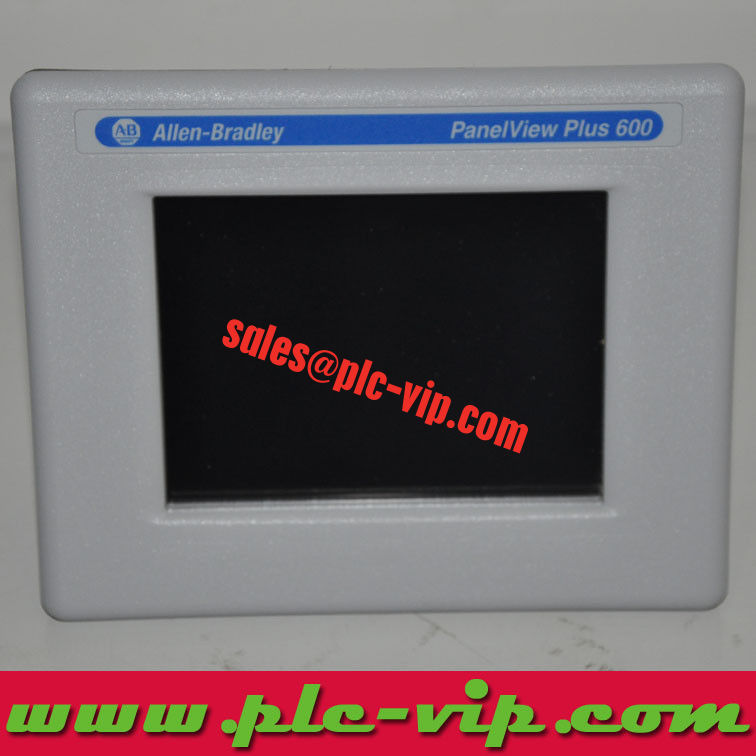

2711P-K6C5D8 PanelView Plus 6 600 terminal, original listing photograph 1 2711P-K6C5D8 PanelView Plus 6 600 terminal, original listing photograph 2

What the 2711P-K6C5D8 is

The 600 model sits between the 3.5 in 400 and the 6.5 in 700 terminals. It keeps the 320 x 240 pixel map of the 400 model but enlarges the display to 5.7 in, so existing 400 projects fit the same screen layout while the panel gets physically larger. PanelView Plus 6 runs FactoryTalk View Machine Edition applications on Windows CE 6.0.

Operator input is the membrane keypad with function keys, numeric entry and the arrow/Enter cluster, used where the panel is operated with gloves or the machine builder standardised on keypad entry. The 167 x 266 mm front means the cutout is 142 x 241 mm (5.61 x 9.50 in), and the depth to the logic module is 68 mm; the AC power module adds a further 30 mm.

Memory is 256 MB RAM and 512 MB nonvolatile, about 73 MB of which is free for the application, with an SD slot for 1784-SDx cards. The 700...1500 terminals use a different 512 MB/512 MB logic module, so do not carry this figure across to a larger size.

Specifications that decide the panel design

Display: 5.7 in, 320 x 240 pixels, 18-bit color TFT, brightness 440 cd/m2. Backlight is a white LED rated 25,000 hours minimum at 25 deg C and is not field replaceable.

Input power: 24V DC nom (18...30V DC), 25 W max (1.0 A at 24V DC). The DC variants use a nonisolated 24V DC supply: each terminal needs its own UL Class 2 or SELV source and the functional earth terminal on the power block must be wired.

Mass: 728 g approx. for this input style; the keypad and keypad/touch front is heavier than the touch-only front because of the keypad assembly. Allow for the cable bend radius behind the 68 mm body when laying out the enclosure.

Environment: NEMA Type 12, 13 and 4X indoor, IP54 and IP65 at the front, which covers washdown panels only when the gasket is correctly compressed by the mounting levers.

Cutout, clearance and mounting

Cut the panel opening 142 x 241 mm (5.61 x 9.50 in) using the full-size template supplied with the terminal. Keypad and keypad/touch models use a wider 142 x 241 mm opening, so an existing 400 cutout cannot be reused for this catalog number.

Depth to the logic module is 68 mm; the AC module version needs 98 mm. Keep the lower rear face clear for the power terminal block, the RS-232 connector and the USB ports, and route the earth conductor before clamping the levers.

Tighten the mounting levers evenly until the gasket compresses, then confirm the seal at all four corners before applying power.

Power, grounding and wiring

DC terminals accept 24V DC nominal over 18...30V DC and draw 25 W maximum (1.0 A at 24V DC). The 600 model, like all PanelView Plus 400 and 600 terminals, has a nonisolated DC supply with the DC negative internally tied to the functional earth terminal, so a floating supply is not an option.

AC terminals accept 100...240V AC at 50...60 Hz and draw 60 VA maximum, with protective earth on the terminal block.

Power blocks accept 0.3...2.1 mm2 (22...14 AWG) 90 deg C copper wire at 0.45...0.56 N m (4...5 lb in); two wires per terminal are allowed up to 1.3 mm2 (16 AWG).

The real-time clock is held by a 2711P-RY2032 coin cell rated 4 years minimum at 25 deg C, with about plus or minus 2 minutes per month accuracy.

Communication and software

This catalog number carries RS-232 and USB, plus one USB 2.0 host port for a keyboard, mouse or USB drive and one USB device port for programming.

There is no Ethernet port here: RS-232 handles DF1, ASCII or printer output, and the USB host port carries a keyboard, mouse or USB drive. An Ethernet model in the same 600 range provides 10/100 connectivity if the cell later needs network access.

The 400 and 600 models require FactoryTalk View Machine Edition version 6.10 or later; projects built in 5.x must be converted before download. Transfer is over Ethernet, serial or a 1784-SDx card.

USB circuit parameters for nonincendive field wiring are 5.25V DC, 1.68 A short-circuit current, 10 microfarad and 15 microhenry; peripherals in a classified area must not exceed them.

Choosing between the 600-model catalog numbers

The 600 model is offered as keypad, touch, or keypad and touch; grayscale 16-level or 18-bit color; communication option 5 (RS-232 + USB) or option 20 (Ethernet + RS-232 + USB); AC or DC input. The suffix 8 is Windows CE 6.0; color catalog numbers are also listed with suffix 9, which adds the extended CE features, and those carry identical display, power and cutout data.

  • 2711P-K6M5A8 — Keypad, grayscale 16 levels, RS-232 + USB, AC
  • 2711P-T6M5A8 — Touch, grayscale 16 levels, RS-232 + USB, AC
  • 2711P-B6M5A8 — Keypad and touch, grayscale, RS-232 + USB, AC
  • 2711P-K6M5D8 — Keypad, grayscale 16 levels, RS-232 + USB, DC
  • 2711P-T6M5D8 — Touch, grayscale 16 levels, RS-232 + USB, DC
  • 2711P-B6M5D8 — Keypad and touch, grayscale, RS-232 + USB, DC
  • 2711P-K6C5A8 — Keypad, color 18-bit, RS-232 + USB, AC
  • 2711P-T6C5A8 — Touch, color 18-bit, RS-232 + USB, AC
  • 2711P-B6C5A8 — Keypad and touch, color, RS-232 + USB, AC
  • 2711P-K6C5D8 — Keypad, color 18-bit, RS-232 + USB, DC
  • 2711P-T6C5D8 — Touch, color 18-bit, RS-232 + USB, DC
  • 2711P-B6C5D8 — Keypad and touch, color, RS-232 + USB, DC

Rules that hold across the range: touch-only keeps the 123 x 156 mm cutout and 594 g mass; any keypad front moves to 142 x 241 mm and 728 g. Grayscale is the cheaper display for text, alarm and numeric screens; color is needed where the HMI uses color-coded states or trend graphics. Ethernet is the only way to reach a controller on the network or to serve ViewPoint, and AC is chosen where a 100...240V feed already exists in the enclosure.

FAQ — 2711P-K6C5D8

Does 2711P-K6C5D8 have a touch screen?

No. This catalog number is keypad only; the touch version of the 600 model is 2711P-T6C5D8.

What cutout does 2711P-K6C5D8 need?

142 x 241 mm (5.61 x 9.50 in). The front measures 167 x 266 mm and the body is 68 mm deep.

Does 2711P-K6C5D8 have Ethernet?

No. This is communication option 5: RS-232 and USB only. Ethernet in the 600 range is the option 20 catalog number, for example 2711P-K6C20A8.

What supply does 2711P-K6C5D8 need?

24V DC nominal over 18...30V DC, 25 W maximum (1.0 A at 24V DC) from a UL Class 2 or SELV supply, with the functional earth terminal wired.

How heavy is 2711P-K6C5D8?

728 g approx.. The keypad and keypad/touch front is listed at 728 g and the touch-only front at 594 g.

Can 2711P-K6C5D8 display color graphics?

Yes, 18-bit color on an active-matrix TFT at 320 x 240.

Is the backlight of 2711P-K6C5D8 replaceable?

No. It is a white LED rated 25,000 hours minimum at 25 deg C and is not a field-replaceable part.

What replaces the clock battery in 2711P-K6C5D8?

2711P-RY2032, an equivalent CR2032 coin cell; 4 years minimum at 25 deg C.


Data sources. Technical values on this page come from 2711P-UM006 and 2711P-TD001, together with the Rockwell product page for this catalog number. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
