Allen Bradley PanelView 2711C-T10C / 2711CT10C

China Allen Bradley PanelView 2711C-T10C / 2711CT10C supplier
Allen Bradley PanelView 2711C-T10C / 2711CT10C supplier Allen Bradley PanelView 2711C-T10C / 2711CT10C supplier Allen Bradley PanelView 2711C-T10C / 2711CT10C supplier Allen Bradley PanelView 2711C-T10C / 2711CT10C supplier Allen Bradley PanelView 2711C-T10C / 2711CT10C supplier

Large Image :  Allen Bradley PanelView 2711C-T10C / 2711CT10C

Product Details:

Place of Origin: Made in USA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PanelView 2711C-T10C / 2711CT10C

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $995.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

2711C-T10C technical data PDF download 2711C-T10C PanelView Component C1000 10.4 in Touch

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PanelView Component Terminal

The 2711C-T10C is a PanelView Component C1000 terminal: 10.4 in, TFT color, active area 211 x 158 mm, driven by analog touch screen. Power is 18...30V DC at 24V DC nominal and the whole unit weighs 1.57 kg, so it suits small machines, packaging stations and retrofit panels where a full PanelView Plus is too large.

Rockwell Automation discontinued this catalog number on June 30, 2016 and lists the 2711R-T10T as its functional replacement. Stock still in the channel is bought as spare or for identical-machine rebuilds, and the technical data below is what a replacement decision actually needs.

2711C-K2M PanelView Component C200, 2 in Monochrome transflective STN, Numeric and function keys IN STOCK
2711C-F2M PanelView Component C200, 2 in Monochrome transflective STN, Function keys IN STOCK
2711C-K3M PanelView Component C300, 3 in Monochrome transflective FSTN, Numeric and function keys IN STOCK
2711C-T3M PanelView Component C300, 3 in Monochrome transflective FSTN, Analog touch screen IN STOCK
2711C-T4T PanelView Component C400, 4 in Color transmissive TFT, Analog touch screen and 4 function keys IN STOCK
2711C-T6M PanelView Component C600, 5.7 in Monochrome transflective FSTN, Analog touch screen IN STOCK
2711C-T10C PanelView Component C1000, 10.4 in Color transmissive TFT, Analog touch screen IN STOCK

Product Specifications 2711C-T10C (PDF)
 Application
 PanelView Component C1000 operator terminal, 10.4 in
 Cat Num
 2711C-T10C
 Brand Name
 Rockwell
 Display Size
 10.4 in
 Display Type
 Color transmissive TFT, active matrix
 Resolution
 640 x 480
 Active Area
 211 x 158 mm
 Operator Input
 Analog touch screen
 Backlight
 CCFL, not replaceable
 Communication Ports
 Ethernet 10/100 and RS-232
 Input Power
 18...30V DC, 24V DC nominal
 Power Consumption
 18 W (0.75 A at 24V DC)
 Memory Card
 SD card slot
 Clock Battery
 5 years minimum at 25 deg C
 Weight
 1.57 kg
 Lifecycle
 Discontinued June 30, 2016
 Functional Replacement
 2711R-T10T
 Mounting
 Panel mount with gasket, 24V DC supply via the terminal block

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711C-UM001 (module specifications) and 2711C-UM001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

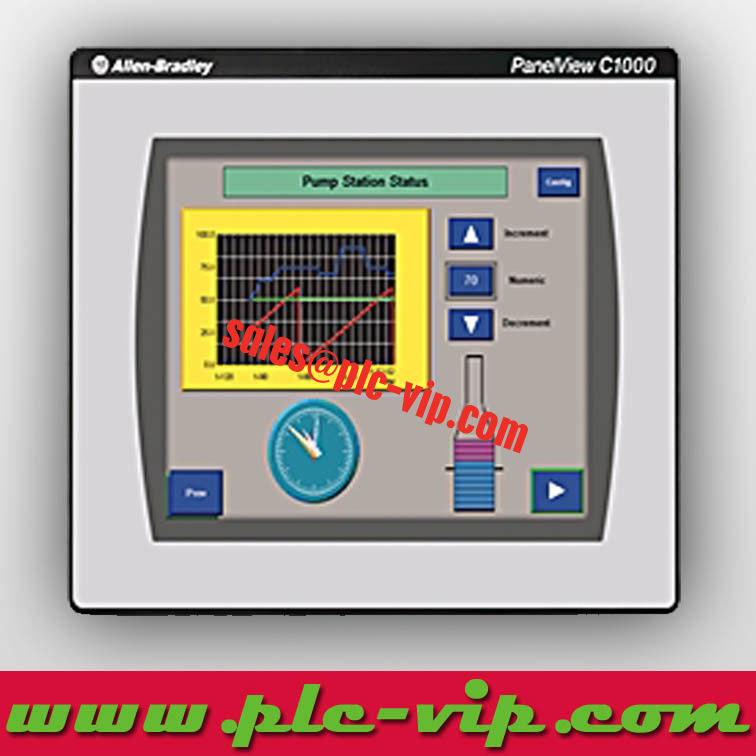

2711C-T10C PanelView Component C1000 terminal, original listing photograph 1 2711C-T10C PanelView Component C1000 terminal, original listing photograph 2

What the 2711C-T10C is

PanelView Component C1000: 10.4 in display, color transmissive tft, active area 211 x 158 mm, 640 x 480.

Operator input: analog touch screen. The analog touch screen is the only input, so the application needs no key sequence - and the panel needs no key legend.

Ports: Ethernet 10/100 and RS-232. An SD card slot takes project transfer and recipe storage without a network connection.

Power and environment

Input voltage range 18...30V DC, 24V DC nominal; maximum consumption 18 W (0.75 A at 24V DC). The supply must be SELV or Class 2 and the 24V rail has to hold above 18V at the terminal during inrush from contactors sharing the rail.

Backlight: CCFL, not replaceable. The lamp is not field replaceable on this series, so a dim display is a replacement or repair decision, not a lamp swap.

The real-time clock keeps a battery rated 5 years minimum at 25 deg C, longer than the 4 years of the PanelView Plus 6 clock cell.

Ethernet and serial communication

Ethernet 10/100 and RS-232. Ethernet carries EtherNet/IP tag access and project download; RS-232 covers DF1, ASCII, printer and bar-code links.

PanelView Component projects are built in PanelView Component DesignStation, not FactoryTalk View ME, so a project cannot be copied straight from a PanelView Plus terminal.

The SD slot accepts a card for project copy and recipe backup, which is the fastest way to clone a line of identical machines.

Why this catalog number is still bought

Discontinued June 30, 2016, functional replacement 2711R-T10T. Machines built before that date still need the same front size, the same port set and the same project, and a replacement with a different cutout would mean re-fabricating the enclosure door.

2711C-T10C at 10.4 in is a direct like-for-like swap for the same front; a move to the 2711R-T10T means a new project, a new cutout and a new wiring schedule.

The 18...30V DC input is the same window as the PanelView Plus 400 and 600 models, so a panel that already feeds 24V to a Plus terminal needs no supply change.

What to verify before you order

Front size and cutout: the 10.4 in front cannot be replaced by a larger model without cutting the door, and the gasket footprint differs between C1000 and later PanelView Edge terminals.

Input power: 18...30V DC only. There is no AC version in this series, so a machine fed from 100...240V AC needs a DIN-rail supply in the panel.

Software: the project must exist in PanelView Component DesignStation format. If only a FactoryTalk View ME archive survives, the replacement route is the 2711R-T10T, not another 2711C.

Communication: Ethernet 10/100 and RS-232. Confirm the PLC side still speaks the same protocol before swapping.

Specification summary

Display 10.4 in, 640 x 480, active area 211 x 158 mm; input analog touch screen; ports Ethernet 10/100 and RS-232; power 18 W (0.75 A at 24V DC); weight 1.57 kg; SD slot yes.

  • 2711C-K2M — PanelView Component C200, 2 in Monochrome transflective STN, Numeric and function keys
  • 2711C-F2M — PanelView Component C200, 2 in Monochrome transflective STN, Function keys
  • 2711C-K3M — PanelView Component C300, 3 in Monochrome transflective FSTN, Numeric and function keys
  • 2711C-T3M — PanelView Component C300, 3 in Monochrome transflective FSTN, Analog touch screen
  • 2711C-T4T — PanelView Component C400, 4 in Color transmissive TFT, Analog touch screen and 4 function keys
  • 2711C-T6M — PanelView Component C600, 5.7 in Monochrome transflective FSTN, Analog touch screen
  • 2711C-T10C — PanelView Component C1000, 10.4 in Color transmissive TFT, Analog touch screen

The table above is the whole PanelView Component family this catalog belongs to; a mismatch in resolution or touch type between two rows is what breaks a project copy, not the model number.

FAQ — 2711C-T10C

Is 2711C-T10C still available?

Rockwell Automation discontinued 2711C-T10C on June 30, 2016. Units still in distribution are sold as spare stock; the listed functional replacement is 2711R-T10T.

What display does 2711C-T10C have?

10.4 in, Color transmissive TFT, active matrix, active area 211 x 158 mm.

What input power does 2711C-T10C need?

18...30V DC with 24V DC nominal, drawing 18 W (0.75 A at 24V DC) maximum. There is no AC input version.

How much does 2711C-T10C weigh?

1.57 kg, which is light enough for a swing-arm or a small enclosure door.

Does 2711C-T10C have an SD card slot?

Yes, an SD card slot is fitted.

Which ports does 2711C-T10C have?

Ethernet 10/100 and RS-232.

Is the backlight of 2711C-T10C replaceable?

No. The lamp is rated as a CCFL tube but is not field replaceable on the PanelView Component series.

Can a PanelView Plus project run on 2711C-T10C?

No. PanelView Component terminals use PanelView Component DesignStation; a FactoryTalk View ME project does not transfer, so plan the migration to 2711R-T10T instead.


Data sources. Technical values on this page come from 2711C-UM001 appendix A and the Rockwell product page for this catalog number. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
