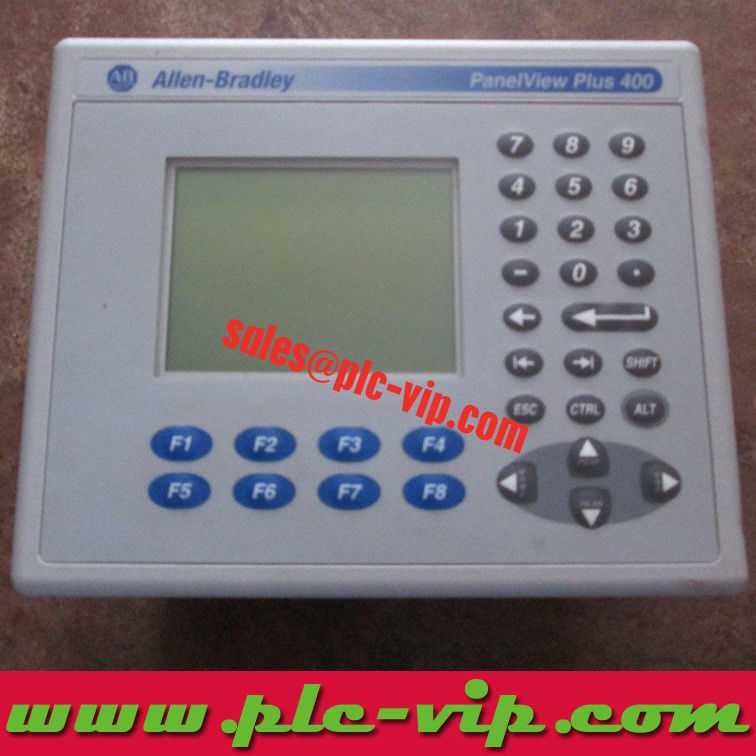

The 2711P-K4M20D8 is a PanelView Plus 6 400-model operator terminal: 3.5 in display with a grayscale screen, keypad, and Ethernet, RS-232 and USB. PanelView Plus 6 terminals run FactoryTalk View Machine Edition applications on Windows CE 6.0 and share one project structure across the 400, 600, 700, 1000, 1250 and 1500 sizes, so an application written for a 3.5 in panel can be opened on a larger terminal without rewriting the tags.
The catalog number decodes as K = keypad, 4 = 3.5 in display, 4 = Grayscale, 20 = Ethernet + RS-232 + USB, D = DC input, 8 = Windows CE 6.0. The 400 model uses a 123 x 156 mm panel cutout and mounts with the levers supplied with the terminal; the front is 152 x 185 mm, 60 mm.
| 2711P-K4M5A8 | Keypad, grayscale, RS-232 + USB, AC input | IN STOCK |
| 2711P-K4M5D8 | Keypad, grayscale, RS-232 + USB, DC input | IN STOCK |
| 2711P-K4M20A8 | Keypad, grayscale, Ethernet + RS-232 + USB, AC input | IN STOCK |
| 2711P-K4M20D8 | Keypad, grayscale, Ethernet + RS-232 + USB, DC input | IN STOCK |
| 2711P-K4C5A8 | Keypad, color, RS-232 + USB, AC input | IN STOCK |
| 2711P-B4C5A8 | Keypad and touch, color, RS-232 + USB, AC input | IN STOCK |
| 2711P-K4C5D8 | Keypad, color, RS-232 + USB, DC input | IN STOCK |
| 2711P-B4C5D8 | Keypad and touch, color, RS-232 + USB, DC input | IN STOCK |
| 2711P-K4C20A8 | Keypad, color, Ethernet + RS-232 + USB, AC input | IN STOCK |
| 2711P-K4C20D8 | Keypad, color, Ethernet + RS-232 + USB, DC input | IN STOCK |
Application |
PanelView Plus 6 operator terminal, 400 model, machine-level HMI |
Cat Num |
2711P-K4M20D8 |
Brand Name |
Rockwell |
Display Size |
3.5 in |
Display Type |
Grayscale LCD |
Resolution |
320 x 240 (QVGA) |
Operator Input |
Keypad |
Touch Screen |
Not fitted |
Communication Ports |
Ethernet 10/100, RS-232 and USB |
USB Ports |
One USB 2.0 type A host port, one device port |
Input Power |
24V DC nom, 18...30V DC range |
Power Consumption |
25 W max, 1.0 A at 24V DC |
Memory |
256 MB RAM, 512 MB nonvolatile (approx. 73 MB free user memory) |
Operating System |
Windows CE 6.0 |
Removable Storage |
SD card slot, cat. no. 1784-SDx |
Panel Cutout |
123 x 156 mm (4.86 x 6.15 in) |
Dimensions |
152 x 185 mm front, 60 mm deep |
Weight |
473 g approx. |
Backlight |
White LED, not replaceable, 25,000 h min at 25 deg C |
Clock Battery |
2711P-RY2032 (CR2032), 4 years min at 25 deg C |
Degree of Protection |
NEMA Type 12, 13, 4X indoor and IP54, IP65 |
Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711P-UM006 (module specifications) and 2711P-TD001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.
PanelView Plus 6 is the CE 6.0 generation of the PanelView Plus family. The 400 model is the smallest member: a 3.5 in display in a 152 x 185 mm front, keypad operator input, with the same 320 x 240 resolution used by the 600 model. Operator input is the membrane keypad with function keys F1...F4 (and F5...F8 on the keypad legend), numeric entry, and the arrow/Enter cluster, which suits gloved operation where a touch target is hard to hit.
Because the terminal is a 400 model, it carries 256 MB RAM and 512 MB nonvolatile memory with about 73 MB free for the application; the 700...1500 terminals use a 512 MB/512 MB logic module and should not be assumed to match this memory map.
Display: Grayscale, 320 x 240, 320 x 240 pixels. Backlight is a white LED rated 25,000 hours minimum at 25 deg C and is not field replaceable, so a dim panel means terminal replacement rather than a lamp swap.
Input power: 24V DC nom (18...30V DC), 25 W max (1.0 A at 24V DC). The DC variants use a nonisolated 24V DC supply; each terminal needs its own UL Class 2 or SELV supply and the functional earth terminal on the power block must be wired, because the DC negative is internally tied to that terminal.
Memory and storage: 256 MB RAM, 512 MB nonvolatile, roughly 73 MB free user memory, plus an SD card slot that accepts 1784-SDx cards for application and log transfer.
Mass and depth: 473 g, 60 mm. The 400 model replaces a PanelView Standard 550 cutout, which is why the 123 x 156 mm opening is unchanged on many existing machines.
Cut the panel opening 123 x 156 mm (4.86 x 6.15 in) using the full-size template shipped with the terminal; the front bezel is 152 x 185 mm, leaving a 14.5 mm overlap on each side and 29 mm top and bottom for the gasket.
Behind the panel the body needs 60 mm, plus cable bend radius at the power block. Leave room for the power terminal block and the RS-232/USB connectors, which sit on the lower rear face, and route the functional earth conductor before the terminal is clamped down.
The terminal is held by mounting levers that pull the bezel against the gasket; tighten them evenly until the gasket compresses, then check the seal at all four corners before power-up.
DC terminals accept 24V DC nominal over an 18...30V DC range and draw 25 W maximum (1.0 A at 24V DC). The supply must be Class 2 or SELV; a shared 24V rail feeding several terminals is acceptable only if each device still has a Class 2 or SELV source and the earth/ground terminal is connected.
AC terminals accept 100...240V AC at 50...60 Hz and draw 60 VA maximum. Connect protective earth to the terminal block; the block also carries the functional earth terminal for the 400 model.
Power terminal blocks take 0.3...2.1 mm2 (22...14 AWG) copper wire, 90 deg C rated, with a screw torque of 0.45...0.56 N m (4...5 lb in). Two wires per terminal are allowed up to 1.3 mm2 (16 AWG).
The terminal has no internal battery-backed shutdown sequence; the real-time clock keeps running from a 2711P-RY2032 coin cell rated 4 years minimum at 25 deg C, and accuracy is about plus or minus 2 minutes per month.
This terminal is the Ethernet version: Ethernet 10/100, RS-232 and USB.
Ethernet models run 10/100Base-T with auto MDI/MDI-X and can host a FactoryTalk View ME application that reads controller tags over EtherNet/IP; the serial models use RS-232 for DF1, ASCII or printer output and are normally chosen where the panel only speaks to one controller or a printer.
Programming is done in FactoryTalk View Studio and downloaded through Ethernet, serial or a 1784-SDx card. The 400 and 600 models require FactoryTalk View Machine Edition software version 6.10 or later; older 5.x projects must be converted before download.
The USB port is a 2.0 type A host rated 5.25V DC, 1.68 A short circuit current, 10 microfarad and 15 microhenry for nonincendive field wiring calculations; peripherals must not exceed those circuit parameters in a classified area.
The 400 model is offered in ten combinations. All ten use the same 3.5 in 320 x 240 display, the same 123 x 156 mm cutout, the same 473 g body and the same Windows CE 6.0 firmware; only operator input, display type, communication and power change.
Practical rule: keypad for gloved operation or where the panel has no touch window; keypad and touch where operators select recipes or acknowledge alarms on screen. Ethernet when the terminal reads tags from a CompactLogix or ControlLogix controller or serves ViewPoint data, RS-232 only for a single serial link. AC where a 100...240V feed already exists, DC where the panel runs on a 24V rail with a Class 2 or SELV source.
Does 2711P-K4M20D8 have an Ethernet port?
Yes. It provides 10/100Base-T Ethernet with auto MDI/MDI-X plus RS-232 and USB, which is the communication option 20 in the catalog number.
What panel cutout does 2711P-K4M20D8 need?
123 x 156 mm (4.86 x 6.15 in). The front bezel is 152 x 185 mm and the body is 60 mm behind the panel.
Can 2711P-K4M20D8 run a project written for a 7 in or 10 in terminal?
The application can be opened and converted, but the 400 model is 320 x 240 while the 700 and 1000 models are 640 x 480. Screens designed for the larger pixel area have to be re-laid out for the 3.5 in display; the tag database and alarms carry over.
What supply does 2711P-K4M20D8 require?
24V DC nominal over 18...30V DC, 25 W maximum (1.0 A at 24V DC), from a UL Class 2 or SELV supply, with the functional earth terminal on the power block wired.
How much application memory is free on 2711P-K4M20D8?
256 MB RAM and 512 MB nonvolatile memory, of which approximately 73 MB is free for the user application. Additional storage is added with a 1784-SDx card in the SD slot.
Is the backlight of 2711P-K4M20D8 replaceable?
No. It is a white LED rated 25,000 hours minimum at 25 deg C and is not a field-replaceable part; when the panel dims the terminal is replaced.
What replaces the clock battery in 2711P-K4M20D8?
Cat. no. 2711P-RY2032, an equivalent CR2032 coin cell. Life is 4 years minimum at 25 deg C and the clock accuracy is about plus or minus 2 minutes per month.
