Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4

China Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4 supplier
Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4 supplier Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4 supplier Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4 supplier Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4 supplier Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4 supplier Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4 supplier

Large Image :  Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4

Product Details:

Place of Origin: Made in MALAYSIA
Brand Name: Rockwell
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1769-IQ6XOW4 / 1769IQ6XOW4

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $139.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

1769-IQ6XOW4 technical data PDF download CompactLogix 1769-IQ6XOW4 / 1769IQ6XOW4 6-In 4-Relay-Out Combo Module

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PLC I/O

The 1769-IQ6XOW4 (also written 1769IQ6XOW4) is the Compact I/O combination slice: six 24V DC inputs and four relay outputs in a single slot, 280 g, four inches of DIN rail.

It exists for the small island of I/O that is not worth a dedicated card — a stand-alone valve station, a pump skid with four starters and six feedbacks, a remote panel where the bank has one slot left. On a 1769-IQ16 plus a 1769-OW8 it would take 2.5 slots; here it takes one.

1769-IA16 Compact 16-point 120V AC input module IN STOCK
1769-IQ16 Compact 16-point 24V DC sink/source input module IN STOCK
1769-IQ32 Compact 32-point 24V DC sink/source input module IN STOCK
1769-OA16 Compact 16-point 120/240V AC output module IN STOCK
1769-OB16 Compact 16-point 24V DC output module IN STOCK
1769-OB32 Compact 32-point 24V DC output module IN STOCK
1769-OW16 Compact 16-point relay output module IN STOCK
1769-IF4 Compact 4-channel analog input module IN STOCK
1769-IF8 Compact 8-channel analog input module IN STOCK
1769-IF16C Compact 16-channel current input module IN STOCK
1769-OF4 Compact 4-channel analog output module IN STOCK
1769-OF8V Compact 8-channel voltage output module IN STOCK
1769-OF8C Compact 8-channel current output module IN STOCK
1769-ARM Compact address reserve module IN STOCK

Product Specifications 1769-IQ6XOW4 (PDF)
 Application
 Compact I/O, 1769 bus
 Cat Num
 1769-IQ6XOW4
 Brand Name
 Rockwell
 Inputs
 6, 24V DC sink/source
 Input voltage range
 10…30V DC @ 30 °C; 10…26.4V DC @ 60 °C
 Input delay, on / off
 8 ms / 8 ms
 Input current draw
 105 mA @ 5.1V; 50 mA @ 24V
 Heat dissipation, max
 2.75 W
 Input off-state voltage / current
 5V DC / 1.5 mA
 Input on-state voltage / current
 10V DC / 2 mA
 Input surge current
 250 mA
 Input impedance
 3 kΩ
 Outputs
 4 normally open relay contacts
 Output voltage range
 5…265V AC / 5…125V DC
 Output delay, on / off
 10 ms / 10 ms
 Output leakage, max
 0 mA
 Output current, min
 10 mA @ 5V DC
 Output current per point / module
 2.5 A / 8 A
 Slot width / weight
 1 slot / 280 g

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1769-TD006 (module specifications) and 1769-SG001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

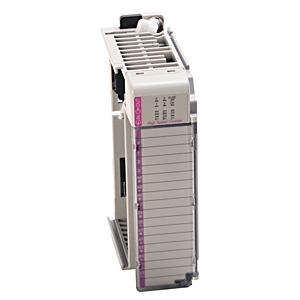

1769-IQ6XOW4 Compact I/O 6-input 4-relay-output combo module, factory packaging 1769-IQ6XOW4 module, front view with terminal block 1769-IQ6XOW4 label detail showing catalog number

Where the module sits in a CompactLogix system

Bank and supply. 105 mA at 5.1V and 50 mA at 24V, 2.75 W, one slot, 280 g; the 24V draw feeds the input opto-isolators, not the relay contacts. Six inputs. 24V DC sink or source, 10…30V DC at 30 °C but 10…26.4V DC at 60 °C, 8 ms filtering both directions, 3 kΩ impedance. Four dry contacts. 5…265V AC or 5…125V DC, 2.5 A per point but only 8 A per module — four points in one group share that ceiling.

Rules that decide the wiring

Relay ceiling is the module, not the point. 2.5 A per contact is available on one point at a time; with all four energised the total must stay under 8 A. 10 mA wetting current. A contact will not switch a 5V logic input reliably; the 24V DC inputs on the same card are the better path for low-level signals. Input derating with temperature. The 10…30V DC window narrows to 10…26.4V DC at 60 °C — a 30V rail has to be re-checked in a hot cabinet. Suppressors and loading. RC across AC coils and a diode across DC coils extend contact life; the output side has 0 mA leakage so no loading resistor is needed.

Commissioning in four checks

Add the four contact currents and confirm the module total is under 8 A — four 2.5 A loads would be 10 A and over the limit. Check the input supply is inside 10…26.4V DC at the cabinet's real internal temperature, not the bench temperature. Confirm the relay common terminal carries the intended field voltage; the contacts are dry. Torque terminals at 0.68 N·m (6 lb·in), 22…14 AWG solid copper rated 90 °C; the replacement block is 1769-RTBN18.

Which Compact I/O combo module to specify

1769-IQ6XOW4 — 6 DC inputs plus 4 relay outputs, 1 slot, 2.75 W. 1769-IQ16 + 1769-OW8 — 16 inputs and 8 relay outputs across 2 slots when the point count justifies it. 1769-IA16 / OA16 — the AC input and AC output pair when the signals are 100…240V AC rather than 24V DC. The combo module is a slot-count decision; at more than six inputs it is usually cheaper to fit a full card and keep the combo for a remote station.

Which Compact I/O mixed module to specify

1769-IQ6XOW4 — 6 DC inputs, 4 relay outputs, 1 slot, 280 g. 1769-IF4FXOF2F / 1769-IF4XOF2 — the analog equivalent when the mixed signal set is voltage or current. 1769-IQ16 + 1769-OW8 — 24 points across 2 slots, 4.5 slots of nothing else. One slot with six and four is the only reason to choose the combo; past that the dedicated cards cost less per point.

FAQ — 1769-IQ6XOW4

What does 1769-IQ6XOW4 contain?

Six 24V DC sink/source inputs and four normally open relay outputs in one slot — 105 mA at 5.1V, 50 mA at 24V, 2.75 W, 280 g.

How much current can the relay outputs of 1769-IQ6XOW4 switch?

2.5 A per point but only 8 A per module, on 5…265V AC or 5…125V DC contacts with 0 mA off-state leakage.

What is the input voltage range of 1769-IQ6XOW4?

10…30V DC at 30 °C and 10…26.4V DC at 60 °C, with 8 ms on and 8 ms off filtering and 3 kΩ input impedance.

Does 1769-IQ6XOW4 need a loading resistor on its relay outputs?

No. The outputs are dry relay contacts with 0 mA leakage; a loading resistor is only needed on solid-state outputs.

Why is the 8 A module limit important on 1769-IQ6XOW4?

Because four points at the full 2.5 A per point would be 10 A, over the 8 A per-module ceiling — the module total is the binding constraint.

Which terminal block does 1769-IQ6XOW4 use?

The 1769-RTBN18 replacement terminal block, 22…14 AWG solid copper rated 90 °C, torqued to 0.68 N·m (6 lb·in).


Data sources. Technical values on this page come from Rockwell publication 1769-TD006 (1769 Compact I/O Modules Specifications) and 1769-SG001 (CompactLogix and Compact GuardLogix Systems Selection Guide), both current Rockwell Automation documents. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
