Allen Bradley PLC 1769-CRR1 / 1769CRR1

China Allen Bradley PLC 1769-CRR1 / 1769CRR1 supplier
Allen Bradley PLC 1769-CRR1 / 1769CRR1 supplier Allen Bradley PLC 1769-CRR1 / 1769CRR1 supplier Allen Bradley PLC 1769-CRR1 / 1769CRR1 supplier Allen Bradley PLC 1769-CRR1 / 1769CRR1 supplier Allen Bradley PLC 1769-CRR1 / 1769CRR1 supplier

Large Image :  Allen Bradley PLC 1769-CRR1 / 1769CRR1

Product Details:

Place of Origin: Made in MALAYSIA
Brand Name: Rockwell
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PLC 1769-CRR1 / 1769CRR1

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $96.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

1769-CRR1 technical data PDF download 1769-CRR1 / 1769CRR1 Compact I/O Expansion Cable

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PLC I/O Accessory

The 1769-CRR1 is a Compact I/O expansion cable, right bank to right bank, 305 mm (1 ft), used to extend the 1769 backplane between two banks of modules.

It carries bus communication and nothing else. That single fact drives the whole specification: a 1769 system takes at most two expansion cables, giving three groups of modules, and each additional bank needs its own 1769-PA2, -PB2, -PA4 or -PB4 power supply.

The 1769-CRR1 and 1769-CRR3 are the same cable in different lengths — 305 mm (1 ft) against 1 m (3.28 ft), 350 g — so the choice is a layout decision, not an electrical one.

1769-IA16 Compact 16-point 120V AC input module IN STOCK
1769-IQ16 Compact 16-point 24V DC sink/source input module IN STOCK
1769-IQ32 Compact 32-point 24V DC sink/source input module IN STOCK
1769-OA16 Compact 16-point 120/240V AC output module IN STOCK
1769-OB16 Compact 16-point 24V DC output module IN STOCK
1769-OB32 Compact 32-point 24V DC output module IN STOCK
1769-OW16 Compact 16-point relay output module IN STOCK
1769-IF4 Compact 4-channel analog input module IN STOCK
1769-IF8 Compact 8-channel analog input module IN STOCK
1769-IF16C Compact 16-channel current input module IN STOCK
1769-OF4 Compact 4-channel analog output module IN STOCK
1769-OF8V Compact 8-channel voltage output module IN STOCK
1769-OF8C Compact 8-channel current output module IN STOCK
1769-ARM Compact address reserve module IN STOCK

Product Specifications 1769-CRR1 (PDF)
 Application
 Compact I/O, 1769 bus
 Cat Num
 1769-CRR1
 Brand Name
 Rockwell
 Function
 Extends the 1769 backplane communication lines between two banks
 Orientation
 Right bank to right bank, 305 mm (1 ft)
 Length
 305 mm (1 ft)
 Weight, approx
 300 g
 Cables per system, max
 2 (three banks maximum)
 Power carried
 Bus communication only; each bank needs its own supply

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 1769-TD006 (module specifications) and 1769-SG001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

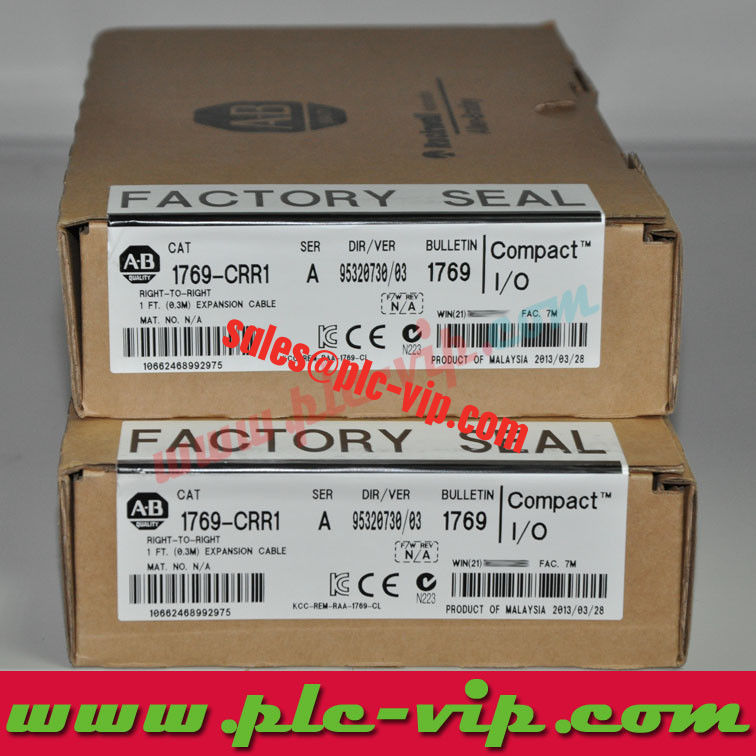

1769-CRR1 Compact I/O expansion cable, 305 mm (1 ft), factory packaging 1769-CRR1 expansion cable, connector detail 1769-CRR1 label detail showing catalog number

Where the cable sits in a Compact I/O system

Between two banks. The cable joins the end of one bank to the start of the next; the unused ends then take an end cap. Direction matters. Right bank to right bank, 305 mm (1 ft) is the right-to-left routing in this family; the left-to-left and right-to-right variants exist because the connector faces differ. Two cables per system. A third bank is the limit, whatever the total module count.

What the published data covers

Length and weight. 305 mm (1 ft), 300 g — the only two figures the data sheet prints, because the cable carries no supply current. What it does not carry. No 24V and no 5.1V: the bank after the cable is powered by its own supply, which is why the power budget is calculated bank by bank. Certifications. The same c-UL-us Class I Division 2, CE EMC and RoHS declarations as the end caps, when marked.

Commissioning in four checks

Count the banks before ordering cable: two cables total, three banks, three supplies. Match direction to the physical layout — a right-to-left cable in a right-to-right position does not reach. Cap every end without a cable, with 1769-ECL on the left and 1769-ECR on the right. Keep the cable route inside the enclosure and away from drive output wiring, as 1770-4.1 requires for all 1769 wiring.

Which expansion cable to specify

1769-CRR1 — Right bank to right bank, 305 mm (1 ft), 300 g. 1769-CRR3 — the same function in 1 m (3.28 ft), 350 g, 350 g. 1769-ECL / 1769-ECR — end caps for the ends the cables do not use. Length is decided by panel geometry; the direction is decided by which end of each bank the connector faces.

Panel layout with two expansion cables

Three banks, three supplies. Controller bank, then two expansion banks, each with its own 1769-PA2/PB2/PA4/PB4 and its own distance-rating count. Connector faces decide the part. A cable that must run from the right end of one bank to the left end of the next is the CRL type; same-direction runs use CLL or CRR. Two cables is a hard limit. A third expansion cable cannot be added, whatever the module count, so a large system is split into three banks rather than chained. Route the cable inside the enclosure and keep it clear of drive output wiring, as publication 1770-4.1 requires for all 1769 wiring.

FAQ — 1769-CRR1

What does 1769-CRR1 do?

It extends the 1769 backplane communication between two banks of Compact I/O modules over 305 mm (1 ft).

How long is 1769-CRR1?

305 mm (1 ft), weighing approximately 300 g.

How many 1769-CRR1 cables can one system use?

Two expansion cables in total, which allows three banks of I/O modules.

Does 1769-CRR1 carry power to the next bank?

No. It carries bus communication only, so each bank needs its own 1769-PA2, -PB2, -PA4 or -PB4 supply.

What is the difference between 1769-CRR1 and 1769-CRR3?

Length only: 305 mm (1 ft) against 1 m (3.28 ft), 350 g; the electrical function is identical.

What must be fitted to the ends left open by 1769-CRR1?

End caps — 1769-ECL at the left end and 1769-ECR at the right end — otherwise the backplane stays open.


Data sources. Technical values on this page come from Rockwell publication 1769-TD006 (1769 Compact I/O Modules Specifications) and 1769-SG001 (CompactLogix and Compact GuardLogix Systems Selection Guide), both current Rockwell Automation documents. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
