Allen Bradley PanelView 2711C-F2M / 2711CF2M

China Allen Bradley PanelView 2711C-F2M / 2711CF2M supplier
Allen Bradley PanelView 2711C-F2M / 2711CF2M supplier Allen Bradley PanelView 2711C-F2M / 2711CF2M supplier Allen Bradley PanelView 2711C-F2M / 2711CF2M supplier Allen Bradley PanelView 2711C-F2M / 2711CF2M supplier Allen Bradley PanelView 2711C-F2M / 2711CF2M supplier

Large Image :  Allen Bradley PanelView 2711C-F2M / 2711CF2M

Product Details:

Place of Origin: Made in USA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PanelView 2711C-F2M / 2711CF2M

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $120.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

2711C-F2M technical data PDF download 2711C-F2M PanelView Component C200 2 in Keypad

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PanelView Component Terminal

The 2711C-F2M is a PanelView Component C200 terminal: 2 in, monochrome STN/FSTN, active area 49 x 14 mm, driven by function keys. Power is 18...30V DC at 24V DC nominal and the whole unit weighs 0.19 kg, so it suits small machines, packaging stations and retrofit panels where a full PanelView Plus is too large.

Rockwell Automation discontinued this catalog number on July 02, 2018 and lists the 2711R-T4T as its functional replacement. Stock still in the channel is bought as spare or for identical-machine rebuilds, and the technical data below is what a replacement decision actually needs.

2711C-K2M PanelView Component C200, 2 in Monochrome transflective STN, Numeric and function keys IN STOCK
2711C-F2M PanelView Component C200, 2 in Monochrome transflective STN, Function keys IN STOCK
2711C-K3M PanelView Component C300, 3 in Monochrome transflective FSTN, Numeric and function keys IN STOCK
2711C-T3M PanelView Component C300, 3 in Monochrome transflective FSTN, Analog touch screen IN STOCK
2711C-T4T PanelView Component C400, 4 in Color transmissive TFT, Analog touch screen and 4 function keys IN STOCK
2711C-T6M PanelView Component C600, 5.7 in Monochrome transflective FSTN, Analog touch screen IN STOCK
2711C-T10C PanelView Component C1000, 10.4 in Color transmissive TFT, Analog touch screen IN STOCK

Product Specifications 2711C-F2M (PDF)
 Application
 PanelView Component C200 operator terminal, 2 in
 Cat Num
 2711C-F2M
 Brand Name
 Rockwell
 Display Size
 2 in
 Display Type
 Monochrome transflective STN, passive matrix
 Resolution
 122 x 32
 Active Area
 49 x 14 mm
 Operator Input
 Function keys
 Backlight
 LED, 50,000 h minimum, not replaceable
 Communication Ports
 RS-232 and DH-485
 Input Power
 18...30V DC, 24V DC nominal
 Power Consumption
 5 W (0.21 A at 24V DC)
 Memory Card
 None
 Clock Battery
 5 years minimum at 25 deg C
 Weight
 0.19 kg
 Lifecycle
 Discontinued July 02, 2018
 Functional Replacement
 2711R-T4T
 Mounting
 Panel mount with gasket, 24V DC supply via the terminal block

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711C-UM001 (module specifications) and 2711C-UM001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

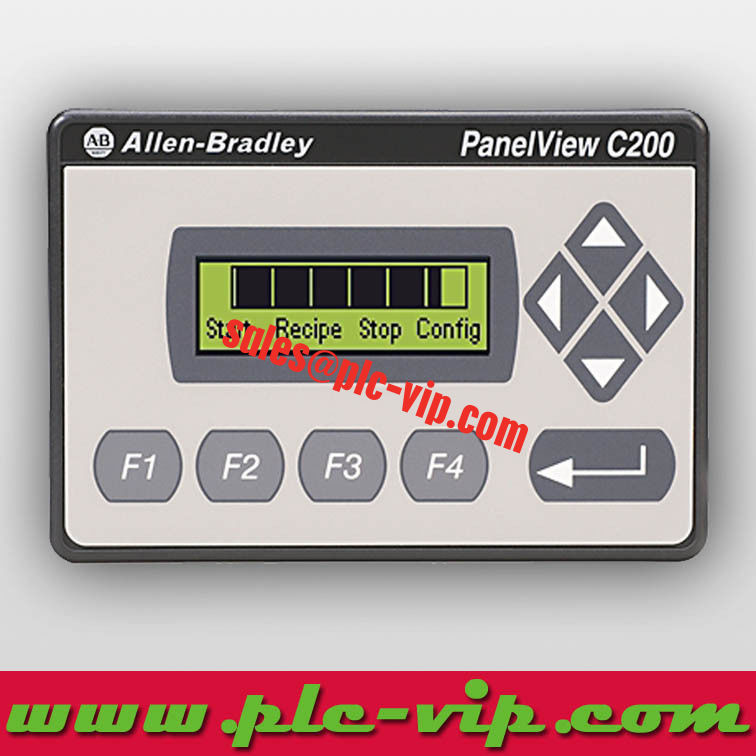

2711C-F2M PanelView Component C200 terminal, original listing photograph 1 2711C-F2M PanelView Component C200 terminal, original listing photograph 2

What the 2711C-F2M is

PanelView Component C200: 2 in display, monochrome transflective stn, active area 49 x 14 mm, 122 x 32.

Operator input: function keys. The keypad carries numeric entry plus function keys, with no touch layer, so every screen must be reachable by key navigation.

Ports: RS-232 and DH-485. There is no SD slot on this model, so projects and recipes move over the serial or Ethernet link.

Power and environment

Input voltage range 18...30V DC, 24V DC nominal; maximum consumption 5 W (0.21 A at 24V DC). The supply must be SELV or Class 2 and the 24V rail has to hold above 18V at the terminal during inrush from contactors sharing the rail.

Backlight: LED rated 50,000 hours minimum. The lamp is not field replaceable on this series, so a dim display is a replacement or repair decision, not a lamp swap.

The real-time clock keeps a battery rated 5 years minimum at 25 deg C, longer than the 4 years of the PanelView Plus 6 clock cell.

Serial and DH-485 communication

RS-232 and DH-485. DH-485 lets the terminal sit on a legacy SLC or MicroLogix network without a gateway, and RS-232 covers DF1, ASCII and printer or bar-code links.

PanelView Component projects are built in PanelView Component DesignStation, not FactoryTalk View ME, so a project cannot be copied straight from a PanelView Plus terminal.

No SD slot means a project transfer needs a live serial or Ethernet path; keep the download cable in the maintenance kit for a machine that is still running this terminal.

Why this catalog number is still bought

Discontinued July 02, 2018, functional replacement 2711R-T4T. Machines built before that date still need the same front size, the same port set and the same project, and a replacement with a different cutout would mean re-fabricating the enclosure door.

2711C-F2M at 2 in is a direct like-for-like swap for the same front; a move to the 2711R-T4T means a new project, a new cutout and a new wiring schedule.

The 18...30V DC input is the same window as the PanelView Plus 400 and 600 models, so a panel that already feeds 24V to a Plus terminal needs no supply change.

What to verify before you order

Front size and cutout: the 2 in front cannot be replaced by a larger model without cutting the door, and the gasket footprint differs between C200 and later PanelView Edge terminals.

Input power: 18...30V DC only. There is no AC version in this series, so a machine fed from 100...240V AC needs a DIN-rail supply in the panel.

Software: the project must exist in PanelView Component DesignStation format. If only a FactoryTalk View ME archive survives, the replacement route is the 2711R-T4T, not another 2711C.

Communication: RS-232 and DH-485. Confirm the PLC side still speaks the same protocol before swapping.

Specification summary

Display 2 in, 122 x 32, active area 49 x 14 mm; input function keys; ports RS-232 and DH-485; power 5 W (0.21 A at 24V DC); weight 0.19 kg; SD slot none.

  • 2711C-K2M — PanelView Component C200, 2 in Monochrome transflective STN, Numeric and function keys
  • 2711C-F2M — PanelView Component C200, 2 in Monochrome transflective STN, Function keys
  • 2711C-K3M — PanelView Component C300, 3 in Monochrome transflective FSTN, Numeric and function keys
  • 2711C-T3M — PanelView Component C300, 3 in Monochrome transflective FSTN, Analog touch screen
  • 2711C-T4T — PanelView Component C400, 4 in Color transmissive TFT, Analog touch screen and 4 function keys
  • 2711C-T6M — PanelView Component C600, 5.7 in Monochrome transflective FSTN, Analog touch screen
  • 2711C-T10C — PanelView Component C1000, 10.4 in Color transmissive TFT, Analog touch screen

The table above is the whole PanelView Component family this catalog belongs to; a mismatch in resolution or touch type between two rows is what breaks a project copy, not the model number.

FAQ — 2711C-F2M

Is 2711C-F2M still available?

Rockwell Automation discontinued 2711C-F2M on July 02, 2018. Units still in distribution are sold as spare stock; the listed functional replacement is 2711R-T4T.

What display does 2711C-F2M have?

2 in, Monochrome transflective STN, passive matrix, active area 49 x 14 mm.

What input power does 2711C-F2M need?

18...30V DC with 24V DC nominal, drawing 5 W (0.21 A at 24V DC) maximum. There is no AC input version.

How much does 2711C-F2M weigh?

0.19 kg, which is light enough for a swing-arm or a small enclosure door.

Does 2711C-F2M have an SD card slot?

No. Projects and recipes transfer over the RS-232 and DH-485 link.

Which ports does 2711C-F2M have?

RS-232 and DH-485.

Is the backlight of 2711C-F2M replaceable?

No. The lamp is rated 50,000 hours minimum but is not field replaceable on the PanelView Component series.

Can a PanelView Plus project run on 2711C-F2M?

No. PanelView Component terminals use PanelView Component DesignStation; a FactoryTalk View ME project does not transfer, so plan the migration to 2711R-T4T instead.


Data sources. Technical values on this page come from 2711C-UM001 appendix A and the Rockwell product page for this catalog number. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
