Allen Bradley PanelView 2711P-K10C4D8 / 2711PK10C4D8

China Allen Bradley PanelView 2711P-K10C4D8 / 2711PK10C4D8 supplier
Allen Bradley PanelView 2711P-K10C4D8 / 2711PK10C4D8 supplier Allen Bradley PanelView 2711P-K10C4D8 / 2711PK10C4D8 supplier Allen Bradley PanelView 2711P-K10C4D8 / 2711PK10C4D8 supplier Allen Bradley PanelView 2711P-K10C4D8 / 2711PK10C4D8 supplier Allen Bradley PanelView 2711P-K10C4D8 / 2711PK10C4D8 supplier

Large Image :  Allen Bradley PanelView 2711P-K10C4D8 / 2711PK10C4D8

Product Details:

Place of Origin: Made in USA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PanelView 2711P-K10C4D8 / 2711PK10C4D8

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $2237.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

2711P-K10C4D8 technical data PDF download 2711P-K10C4D8 PanelView Plus 6 1000 Keypad 10.4 inDC

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PanelView Plus 6 Terminal

The 2711P-K10C4D8 is the 1000-model terminal of the PanelView Plus 6 range: 10.4 in, 640 x 480 (VGA), active area 211 x 158 mm, 300 cd/m2, with keypad and 24V DC input over 18...32V DC.

This size is the one to check first when a 700 application is migrated: it keeps the 640 x 480 pixel map of the 700 model, so a project transfers without a screen redesign - only the cutout and the mass change.

2711P-K10C4A8 Keypad, color, Ethernet + RS-232 + 2 USB, AC input IN STOCK
2711P-T10C4A8 Touch, color, Ethernet + RS-232 + 2 USB, AC input IN STOCK
2711P-B10C4A8 Keypad and touch, color, Ethernet + RS-232 + 2 USB, AC IN STOCK
2711P-K10C4D8 Keypad, color, Ethernet + RS-232 + 2 USB, DC input IN STOCK
2711P-T10C4D8 Touch, color, Ethernet + RS-232 + 2 USB, DC input IN STOCK
2711P-B10C4D8 Keypad and touch, color, Ethernet + RS-232 + 2 USB, DC IN STOCK
2711P-K10C4A9 Keypad, color, Ethernet + RS-232 + 2 USB, AC, extended CE IN STOCK
2711P-T10C4A9 Touch, color, Ethernet + RS-232 + 2 USB, AC, extended CE IN STOCK
2711P-B10C4A9 Keypad and touch, color, AC, extended CE features IN STOCK
2711P-K10C4D9 Keypad, color, Ethernet + RS-232 + 2 USB, DC, extended CE IN STOCK
2711P-T10C4D9 Touch, color, Ethernet + RS-232 + 2 USB, DC, extended CE IN STOCK
2711P-B10C4D9 Keypad and touch, color, DC, extended CE features IN STOCK

Product Specifications 2711P-K10C4D8 (PDF)
 Application
 PanelView Plus 6 operator terminal, 1000 model, 10.4 in
 Cat Num
 2711P-K10C4D8
 Brand Name
 Rockwell
 Display Size
 10.4 in
 Display Type
 Color active-matrix TFT
 Resolution
 640 x 480 (VGA)
 Colour Depth
 18-bit color graphics
 Active Area
 211 x 158 mm
 Brightness
 300 cd/m2
 Operator Input
 Keypad
 Touch Screen
 Not fitted
 Keypad
 stainless-steel membrane with numeric, navigation and function keys
 Communication Ports
 Ethernet 10/100, RS-232, 2 USB host, plus one communication module slot
 Input Power
 24V DC nom, 18...32V DC range
 Power Consumption
 70 W max, 2.9 A at 24V DC, 39 W typical
 Memory
 512 MB RAM, 512 MB nonvolatile (approx. 79 MB free user memory)
 Operating System
 Windows CE 6.0
 Removable Storage
 Hot-swappable SD slot, 1784-SDx / 1784-SDHCx
 Panel Cutout
 224 x 375 mm
 Dimensions
 248 x 399 x 55 mm
 Weight
 2.8 kg approx.
 Backlight
 CCFL, 50,000 h min at 25 deg C, field replaceable
 Clock Battery
 2711P-RY2032 (CR2032), 4 years min at 25 deg C
 Degree of Protection
 NEMA Type 12, 13, 4X indoor and IP54, IP65

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711P-UM006 (module specifications) and 2711P-TD001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

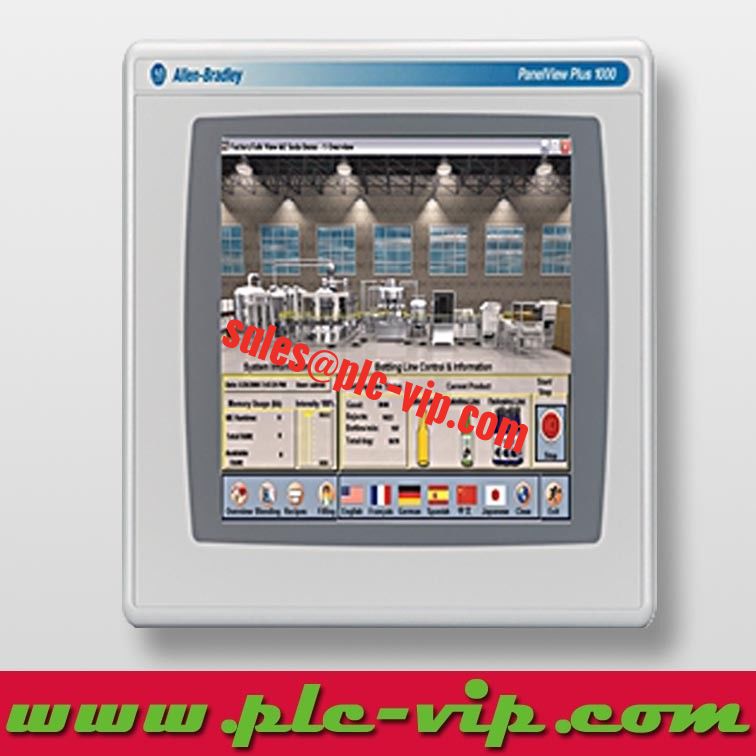

2711P-K10C4D8 PanelView Plus 6 10.4 in terminal, original listing photograph 1 2711P-K10C4D8 PanelView Plus 6 10.4 in terminal, original listing photograph 2

What the 2711P-K10C4D8 is

PanelView Plus 6 1000 model: 10.4 in color TFT, 640 x 480 (VGA), active area 211 x 158 mm, 300 cd/m2. Operator input is the membrane keypad - stainless-steel membrane with numeric, navigation and function keys - with no touch layer, so every screen has to be reachable by key navigation.

The front measures 248 x 399 and the cutout is 224 x 375 mm; depth behind the panel is 55 mm, and the communication module in the rear slot adds about 28 mm more.

Only keypad and keypad/touch fronts use the wider 224 x 375 mm opening; a touch front needs 224 x 305 mm. Cutting the touch opening in a panel intended for a keypad model leaves the keypad front unable to seat, so settle the catalog number before the enclosure is fabricated.

Specifications that decide the panel design

Display: 10.4 in, 640 x 480 (VGA), 18-bit color, active area 211 x 158 mm, 300 cd/m2. The backlight is a cold-cathode fluorescent lamp rated 50,000 hours minimum at 25 deg C and is field replaceable on 700...1500 terminals - unlike the LED backlight of the 400 and 600 models.

Input power: 24V DC nom (18...32V DC), 70 W max (2.9 A at 24V DC), 39 W typical. The DC terminals accept 18...32V DC, a wider window than the 18...30V of the small models, and draw up to 2.9 A at 24V DC, so size the supply for 70 W, not 25 W.

Mass: 2.8 kg approx. for this front. A panel door carrying this size of terminal plus the enclosure load has to be held by the mounting levers, so confirm panel thickness is inside the lever range.

Environment: front rated NEMA Type 12, 13 and 4X indoor and IP54/IP65, relative humidity 5...95%% noncondensing, 15 G shock at 11 ms, operating altitude up to 2000 m.

CCFL thermal behaviour: below 10 deg C internal temperature the backlight is overdriven at full rated current for at least five minutes to warm the display, and above 60 deg C it is underdriven to 40%% or less of full brightness. Temperature control affects intensity only, so a cold cabinet start is not a fault.

Cutout, clearance and mounting

Cut the opening 224 x 375 mm from the template shipped with the terminal. Leave at least 100 mm clear behind the panel where a communication module is fitted, and keep the lower rear face clear for the power terminal block and the earth conductor.

The DC terminal is not isolated from functional earth in this range either, so the supply must be SELV or Class 2 and the FE terminal must be wired. An AC supply needs protective earth on the three-position block.

Tighten the mounting levers evenly until the gasket compresses, then re-check the four corners; one uneven lever shows as an IP65 leak at the corner of a 10.4 in front.

Power, grounding and wiring

DC: 18...32V DC, 70 W maximum, 2.9 A at 24V DC, 39 W typical. AC: 100...240V AC, 50...60 Hz, 160 VA maximum.

Power blocks accept 0.3...2.1 mm2 (22...14 AWG) 90 deg C copper at 0.45...0.56 N m (4...5 lb in); two wires per terminal are allowed up to 1.3 mm2 (16 AWG).

Functional earth is mandatory: the DC negative is internally tied to the FE terminal and the AC input relies on protective earth for EMC. Route the earth conductor first and torque it before closing the terminal cover.

The real-time clock runs from a 2711P-RY2032 coin cell, 4 years minimum at 25 deg C, accurate to about plus or minus 2 minutes per month.

Communication and software

Standard on this catalog number: Ethernet 10/100 with auto MDI/MDI-X, RS-232, two USB 2.0 host ports. The rear slot accepts a communication module for DH+/DH-485 or ControlNet, scheduled or unscheduled.

Ethernet carries EtherNet/IP tag access, FactoryTalk ViewPoint clients and project download; RS-232 covers DF1, ASCII, bar-code readers and printers; a USB flash drive moves applications and data logs without a network.

FactoryTalk View Machine Edition version 6.10 or later is required. The hot-swappable SD slot takes 1784-SDx and 1784-SDHCx cards for file transfer, firmware upgrade and data logging.

USB circuit parameters for nonincendive field wiring are 5.25V DC, 1.68 A short-circuit current, 10 microfarad and 15 microhenry.

Choosing the catalog number in this size

Three choices define this terminal: operator input (keypad, touch, or keypad and touch), input power (AC or DC), and the operating system suffix (8 = Windows CE 6.0, 9 = Windows CE 6.0 with extended features). Color, VGA resolution, 512 MB memory and the 55 mm depth are common to every row.

  • 2711P-K10C4A8 — Keypad, color, Ethernet + RS-232 + 2 USB, AC input
  • 2711P-K10C4D8 — Keypad, color, Ethernet + RS-232 + 2 USB, DC input
  • 2711P-K12C4A8 — Keypad, color, AC input
  • 2711P-K12C4D8 — Keypad, color, DC input
  • 2711P-K15C4D8 — Keypad, color, 1500 model, DC input

Suffix 9 adds the extended Windows CE 6.0 features; display, power and cutout stay the same, so a 9 model replaces an 8 model on the same panel opening when the application needs the extra features.

FAQ — 2711P-K10C4D8

Does 2711P-K10C4D8 have a touch screen?

No. This terminal is keypad only; the touch version of the same size and supply is the T counterpart in the catalog table above.

What cutout does 2711P-K10C4D8 need?

224 x 375 mm. The front measures 248 x 399 and the depth is 55 mm.

What is the display resolution of 2711P-K10C4D8?

640 x 480 (VGA), 18-bit color, active area 211 x 158 mm, 300 cd/m2.

How much power does 2711P-K10C4D8 draw?

18...32V DC, 70 W maximum (2.9 A at 24V DC), 39 W typical.

Is the backlight of 2711P-K10C4D8 replaceable?

Yes. The 700...1500 terminals use a field-replaceable CCFL backlight rated 50,000 hours minimum at 25 deg C; the 400 and 600 models use a non-replaceable LED backlight.

What memory does 2711P-K10C4D8 have?

512 MB RAM and 512 MB nonvolatile memory, about 79 MB free for the application.

Can a 700-model application run on a 2711P-K10C4D8 model?

Yes. Both use a 640 x 480 pixel map, so the FactoryTalk View ME application transfers without redesign; the cutout and the front size are what change.

What replaces the clock battery in 2711P-K10C4D8?

2711P-RY2032, an equivalent CR2032 coin cell, 4 years minimum at 25 deg C.


Data sources. Technical values on this page come from 2711P-UM006 and 2711P-TD001, together with the Rockwell product page for this catalog number. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
