Allen Bradley PanelView 2711P-K4M5A8 / 2711PK4M5A8

China Allen Bradley PanelView 2711P-K4M5A8 / 2711PK4M5A8 supplier
Allen Bradley PanelView 2711P-K4M5A8 / 2711PK4M5A8 supplier Allen Bradley PanelView 2711P-K4M5A8 / 2711PK4M5A8 supplier Allen Bradley PanelView 2711P-K4M5A8 / 2711PK4M5A8 supplier Allen Bradley PanelView 2711P-K4M5A8 / 2711PK4M5A8 supplier Allen Bradley PanelView 2711P-K4M5A8 / 2711PK4M5A8 supplier

Large Image :  Allen Bradley PanelView 2711P-K4M5A8 / 2711PK4M5A8

Product Details:

Place of Origin: Made in USA
Brand Name: PLC Module
Certification: All goods we supply are 100% original factory sealed with 1 year warranty!
Model Number: Allen Bradley PanelView 2711P-K4M5A8 / 2711PK4M5A8

Payment & Shipping Terms:

Minimum Order Quantity: 1 /PCS
Price: $359.00 (USD/PCS)
Packaging Details: 100% original new
Delivery Time: IN STOCK; 4-6 weeks for ordering
Payment Terms: Paypal, T/T and Western Union.
Supply Ability: 10 PCS
Detailed Product Description

2711P-K4M5A8 technical data PDF download 2711P-K4M5A8 PanelView Plus 6 400 Model Terminal, Keypad, grayscale, RS-232 + USB, AC input

Category: PLCs, Power Supplies & I/Os
Manufacturer: Rockwell
Group: PanelView Plus 6 Terminal

The 2711P-K4M5A8 is a PanelView Plus 6 400-model operator terminal: 3.5 in display with a grayscale screen, keypad, and RS-232 and USB. PanelView Plus 6 terminals run FactoryTalk View Machine Edition applications on Windows CE 6.0 and share one project structure across the 400, 600, 700, 1000, 1250 and 1500 sizes, so an application written for a 3.5 in panel can be opened on a larger terminal without rewriting the tags.

The catalog number decodes as K = keypad, 4 = 3.5 in display, 4 = Grayscale, 5A = RS-232 + USB, 8 = AC input, 8 = Windows CE 6.0. The 400 model uses a 123 x 156 mm panel cutout and mounts with the levers supplied with the terminal; the front is 152 x 185 mm, 90 mm with the AC power module.

2711P-K4M5A8 Keypad, grayscale, RS-232 + USB, AC input IN STOCK
2711P-K4M5D8 Keypad, grayscale, RS-232 + USB, DC input IN STOCK
2711P-K4M20A8 Keypad, grayscale, Ethernet + RS-232 + USB, AC input IN STOCK
2711P-K4M20D8 Keypad, grayscale, Ethernet + RS-232 + USB, DC input IN STOCK
2711P-K4C5A8 Keypad, color, RS-232 + USB, AC input IN STOCK
2711P-B4C5A8 Keypad and touch, color, RS-232 + USB, AC input IN STOCK
2711P-K4C5D8 Keypad, color, RS-232 + USB, DC input IN STOCK
2711P-B4C5D8 Keypad and touch, color, RS-232 + USB, DC input IN STOCK
2711P-K4C20A8 Keypad, color, Ethernet + RS-232 + USB, AC input IN STOCK
2711P-K4C20D8 Keypad, color, Ethernet + RS-232 + USB, DC input IN STOCK

Product Specifications 2711P-K4M5A8 (PDF)
 Application
 PanelView Plus 6 operator terminal, 400 model, machine-level HMI
 Cat Num
 2711P-K4M5A8
 Brand Name
 Rockwell
 Display Size
 3.5 in
 Display Type
 Grayscale LCD
 Resolution
 320 x 240 (QVGA)
 Operator Input
 Keypad
 Touch Screen
 Not fitted
 Communication Ports
 RS-232 and USB
 USB Ports
 One USB 2.0 type A host port
 Input Power
 100...240V AC, 50...60 Hz
 Power Consumption
 60 VA max
 Memory
 256 MB RAM, 512 MB nonvolatile (approx. 73 MB free user memory)
 Operating System
 Windows CE 6.0
 Removable Storage
 SD card slot, cat. no. 1784-SDx
 Panel Cutout
 123 x 156 mm (4.86 x 6.15 in)
 Dimensions
 152 x 185 mm front, 90 mm with the AC power module deep
 Weight
 473 g approx.
 Backlight
 White LED, not replaceable, 25,000 h min at 25 deg C
 Clock Battery
 2711P-RY2032 (CR2032), 4 years min at 25 deg C
 Degree of Protection
 NEMA Type 12, 13, 4X indoor and IP54, IP65

Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711P-UM006 (module specifications) and 2711P-TD001 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.

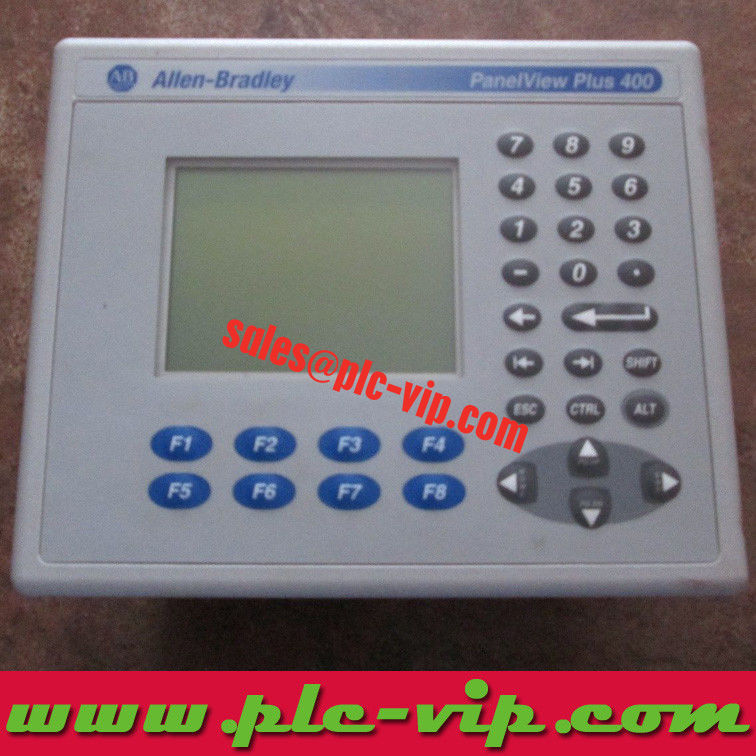

2711P-K4M5A8 PanelView Plus 6 400 terminal, original listing photograph 1 2711P-K4M5A8 PanelView Plus 6 400 terminal, original listing photograph 2

What the %s is

PanelView Plus 6 is the CE 6.0 generation of the PanelView Plus family. The 400 model is the smallest member: a 3.5 in display in a 152 x 185 mm front, keypad operator input, with the same 320 x 240 resolution used by the 600 model. Operator input is the membrane keypad with function keys F1...F4 (and F5...F8 on the keypad legend), numeric entry, and the arrow/Enter cluster, which suits gloved operation where a touch target is hard to hit.

Because the terminal is a 400 model, it carries 256 MB RAM and 512 MB nonvolatile memory with about 73 MB free for the application; the 700...1500 terminals use a 512 MB/512 MB logic module and should not be assumed to match this memory map.

Specifications that decide the panel design

Display: Grayscale, 320 x 240, 320 x 240 pixels. Backlight is a white LED rated 25,000 hours minimum at 25 deg C and is not field replaceable, so a dim panel means terminal replacement rather than a lamp swap.

Input power: 100...240V AC (50...60 Hz), 60 VA max. The DC variants use a nonisolated 24V DC supply; the AC variants take 100...240V AC at 50...60 Hz with a protective earth connection on the power terminal block.

Memory and storage: 256 MB RAM, 512 MB nonvolatile, roughly 73 MB free user memory, plus an SD card slot that accepts 1784-SDx cards for application and log transfer.

Mass and depth: 473 g, 90 mm with the AC power module. The 400 model replaces a PanelView Standard 550 cutout, which is why the 123 x 156 mm opening is unchanged on many existing machines.

Cutout, clearance and mounting

Cut the panel opening 123 x 156 mm (4.86 x 6.15 in) using the full-size template shipped with the terminal; the front bezel is 152 x 185 mm, leaving a 14.5 mm overlap on each side and 29 mm top and bottom for the gasket.

Behind the panel the body needs 90 mm when the AC power module is fitted. Leave room for the power terminal block and the RS-232/USB connectors, which sit on the lower rear face, and route the functional earth conductor before the terminal is clamped down.

The terminal is held by mounting levers that pull the bezel against the gasket; tighten them evenly until the gasket compresses, then check the seal at all four corners before power-up.

Power, grounding and wiring

DC terminals accept 24V DC nominal over an 18...30V DC range and draw 25 W maximum (1.0 A at 24V DC). The supply must be Class 2 or SELV; a shared 24V rail feeding several terminals is acceptable only if each device still has a Class 2 or SELV source and the earth/ground terminal is connected.

AC terminals accept 100...240V AC at 50...60 Hz and draw 60 VA maximum. Connect protective earth to the terminal block; the block also carries the functional earth terminal for the 400 model.

Power terminal blocks take 0.3...2.1 mm2 (22...14 AWG) copper wire, 90 deg C rated, with a screw torque of 0.45...0.56 N m (4...5 lb in). Two wires per terminal are allowed up to 1.3 mm2 (16 AWG).

The terminal has no internal battery-backed shutdown sequence; the real-time clock keeps running from a 2711P-RY2032 coin cell rated 4 years minimum at 25 deg C, and accuracy is about plus or minus 2 minutes per month.

Communication and software

This terminal is the RS-232 only version: RS-232 and USB.

There is no Ethernet port on this model. RS-232 is used for DF1 or DH-485 (through a converter), ASCII strings, or a serial printer, and the USB host port carries a keyboard, mouse or USB drive.

Programming is done in FactoryTalk View Studio and downloaded through Ethernet, serial or a 1784-SDx card. The 400 and 600 models require FactoryTalk View Machine Edition software version 6.10 or later; older 5.x projects must be converted before download.

The USB port is a 2.0 type A host rated 5.25V DC, 1.68 A short circuit current, 10 microfarad and 15 microhenry for nonincendive field wiring calculations; peripherals must not exceed those circuit parameters in a classified area.

Choosing between the ten 400-model catalog numbers

The 400 model is offered in ten combinations. All ten use the same 3.5 in 320 x 240 display, the same 123 x 156 mm cutout, the same 473 g body and the same Windows CE 6.0 firmware; only operator input, display type, communication and power change.

  • 2711P-K4M5A8 — Keypad, grayscale, RS-232 + USB, AC input
  • 2711P-K4M5D8 — Keypad, grayscale, RS-232 + USB, DC input
  • 2711P-K4M20A8 — Keypad, grayscale, Ethernet + RS-232 + USB, AC input
  • 2711P-K4M20D8 — Keypad, grayscale, Ethernet + RS-232 + USB, DC input
  • 2711P-K4C5A8 — Keypad, color, RS-232 + USB, AC input
  • 2711P-B4C5A8 — Keypad and touch, color, RS-232 + USB, AC input
  • 2711P-K4C5D8 — Keypad, color, RS-232 + USB, DC input
  • 2711P-B4C5D8 — Keypad and touch, color, RS-232 + USB, DC input
  • 2711P-K4C20A8 — Keypad, color, Ethernet + RS-232 + USB, AC input
  • 2711P-K4C20D8 — Keypad, color, Ethernet + RS-232 + USB, DC input

Practical rule: keypad for gloved operation or where the panel has no touch window; keypad and touch where operators select recipes or acknowledge alarms on screen. Ethernet when the terminal reads tags from a CompactLogix or ControlLogix controller or serves ViewPoint data, RS-232 only for a single serial link. AC where a 100...240V feed already exists, DC where the panel runs on a 24V rail with a Class 2 or SELV source.

FAQ — 2711P-K4M5A8

Does 2711P-K4M5A8 have an Ethernet port?

No. This catalog number carries RS-232 and USB only, the communication option 5. Ethernet requires one of the option 20 catalog numbers, for example 2711P-K4C20A8 or 2711P-K4C20D8.

What panel cutout does 2711P-K4M5A8 need?

123 x 156 mm (4.86 x 6.15 in). The front bezel is 152 x 185 mm and the body is 90 mm with the AC power module behind the panel.

Can 2711P-K4M5A8 run a project written for a 7 in or 10 in terminal?

The application can be opened and converted, but the 400 model is 320 x 240 while the 700 and 1000 models are 640 x 480. Screens designed for the larger pixel area have to be re-laid out for the 3.5 in display; the tag database and alarms carry over.

What supply does 2711P-K4M5A8 require?

100...240V AC, 50...60 Hz, 60 VA maximum, with protective earth connected.

How much application memory is free on 2711P-K4M5A8?

256 MB RAM and 512 MB nonvolatile memory, of which approximately 73 MB is free for the user application. Additional storage is added with a 1784-SDx card in the SD slot.

Is the backlight of 2711P-K4M5A8 replaceable?

No. It is a white LED rated 25,000 hours minimum at 25 deg C and is not a field-replaceable part; when the panel dims the terminal is replaced.

What replaces the clock battery in 2711P-K4M5A8?

Cat. no. 2711P-RY2032, an equivalent CR2032 coin cell. Life is 4 years minimum at 25 deg C and the clock accuracy is about plus or minus 2 minutes per month.


Data sources. Technical values on this page come from 2711P-UM006 and 2711P-TD001, together with the Rockwell product page for this catalog number. Any attribute the publication does not print is marked Not published rather than taken from a distributor page. Catalog number, packaging and stock status are the stock record of this listing.
