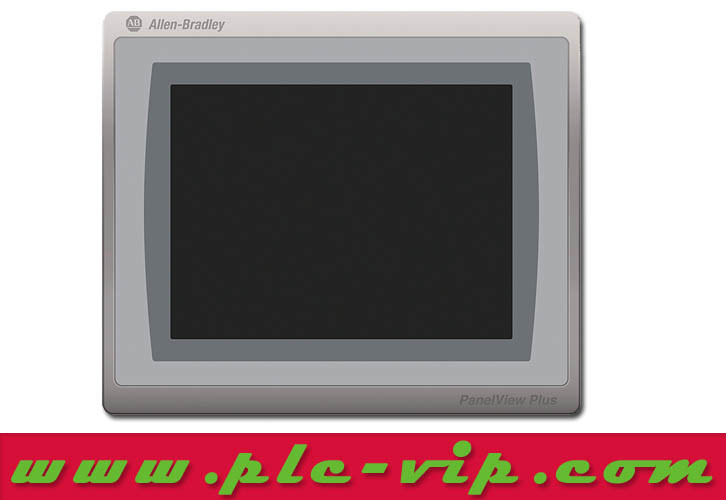

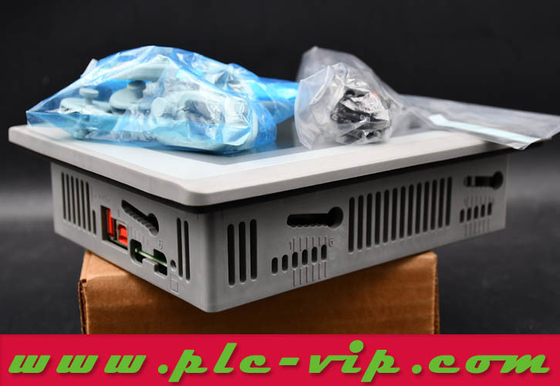

2711P-T10C21D8S-B is the 10.4 in touch model of the PanelView Plus 7 Standard family: Touch Screen, 10.4 in, TFT Color, Single Ethernet, 24V DC, Windows CE 6, Standard Model, Brandless.
It is a current, orderable terminal, and it replaces a PanelView Plus 6 1000 where the application has been converted in FactoryTalk View.
| 2711P-T10C22D8S | PanelView Plus 7 Standard Terminal, Touch Screen, 10.4 in, TFT Color, DLR Ethernet, 24V DC, Windows CE 6, Standard Model | IN STOCK |
| 2711P-T10C22D8S-B | PanelView Plus 7 Standard Terminal, Touch Screen, 10.4 in, TFT Color, DLR Ethernet, 24V DC, Windows CE 6, Standard Model, Brandless | IN STOCK |
| 2711P-T10C21D8S-B | PanelView Plus 7 Standard Terminal, Touch Screen, 10.4 in, TFT Color, Single Ethernet, 24V DC, Windows CE 6, Standard Model, Brandless | IN STOCK |
Application |
PanelView Plus 7 Standard Terminal, Touch Screen, 10.4 in, TFT Color, Single Ethernet, 24V DC, Windows CE 6, Standard Model, Brandless |
Cat Num |
2711P-T10C21D8S-B |
Brand Name |
Rockwell |
Product Type |
PanelView Plus 7 Standard operator terminal |
Screen |
10.4 in color TFT, 800 x 600 |
Network |
Single Ethernet |
Supply |
24V DC |
Front |
Brandless, no Allen-Bradley badge |
Lifecycle |
Active |
Attribute values above are reproduced from the manufacturer's product data. For the authoritative technical record see Rockwell publications 2711P-UM007 (module specifications) and 2711P-TD008 (installation instructions). Certification details, with certificate and file numbers, are listed in the FAQ below.
Official Rockwell description: PanelView Plus 7 Standard Terminal, Touch Screen, 10.4 in, TFT Color, Single Ethernet, 24V DC, Windows CE 6, Standard Model, Brandless.
This is a Windows CE 6 Standard Model: it runs FactoryTalk View Machine Edition applications and holds 512 MB RAM with 512 MB of nonvolatile storage, about 80 MB of which is free for the application.
Display: 10.4 in color TFT, SVGA 800 x 600, 18-bit color.
Power: 24V DC nominal (18...30V DC), non-isolated.
Touch: Analog resistive, 1 million presses, 100 g actuation.
Memory: 512 MB RAM, 512 MB nonvolatile, about 80 MB free for the application.
Storage: SD card slot, replacement card 1784-SD1.
Ethernet: single Ethernet port, RJ45 10/100, IEEE 1588.
Dimensions: 252 x 297 x 56.5 mm (H x W x D), cutout 224 x 269 mm.
Backlight: 50,000 h minimum, not replaceable in the field.
Clock: CR2032 cell, 2711P-RY2032, 4 years minimum at 25 °C.
System: Windows CE 6 operating system, FactoryTalk View Machine Edition runtime.
Rockwell lists 2711P-T10C21D8S-B as Active: it is a current model, not a spare for a discontinued line.
It is the drop-in route for a PanelView Plus 6 1000 whose application has been converted, and the cutout is published so the enclosure can be checked before the order.
This is a Windows CE 6 Standard Model: it runs FactoryTalk View Machine Edition applications and holds 512 MB RAM with 512 MB of nonvolatile storage, about 80 MB of which is free for the application.
The backlight is not replaceable in the field, so a dim screen is answered by a terminal replacement and not by a lamp order.
Single Ethernet and DLR Ethernet are separate catalog groups: the DLR version carries two ports for a device-level ring, the single-port version one RJ45.
The -B suffix is the brandless front: same electronics, no Allen-Bradley badge, for an OEM that puts its own name on the machine.
Network option and front branding are the two choices inside this size: DLR or single Ethernet, and Allen-Bradley branded or brandless.
The application, the SD card for cloning and the panel cutout are checked before the terminal is ordered; the cutout is 224 x 269 mm.
The row in red in the table at the top is the item on this page.
What is 2711P-T10C21D8S-B?
PanelView Plus 7 Standard Terminal, Touch Screen, 10.4 in, TFT Color, Single Ethernet, 24V DC, Windows CE 6, Standard Model, Brandless.
What does 2711P-T10C21D8S-B fit?
10.4 in color TFT, 800 x 600.
Is 2711P-T10C21D8S-B available?
Rockwell lists the lifecycle status as Active.
What separates the catalog numbers in this family?
Capacity, format or front style, plus the network option on the terminal models.
What has to be checked before ordering 2711P-T10C21D8S-B?
The terminal nameplate and the application size for a memory part; the network option and the panel cutout for a terminal.
